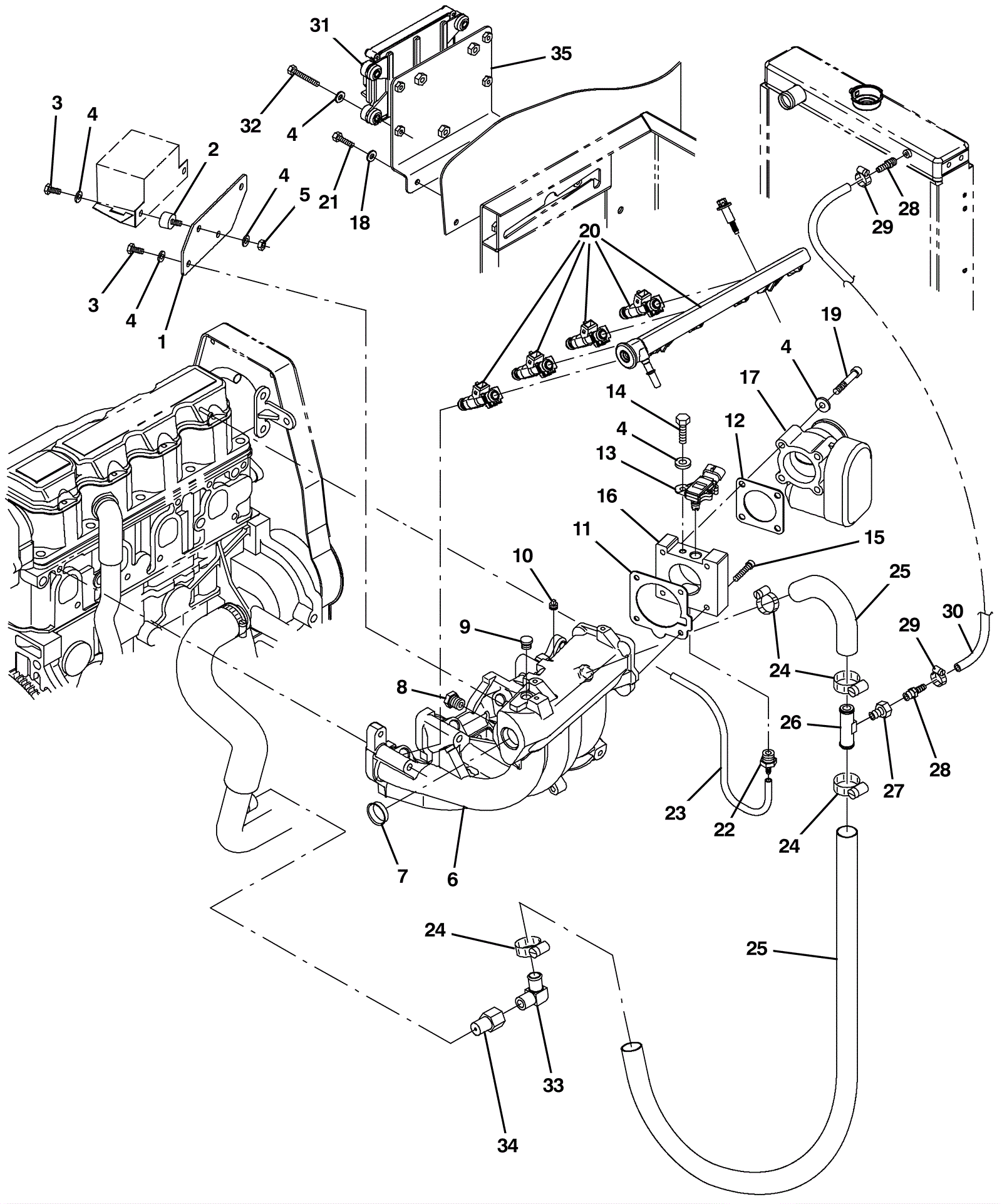

GM Engine EFI Assembly - Gasoline (000000-001320)

#PartDescription ReqNotesAvailability
1 375-0465 Relay plate (Tennant Industrial) 1
2 375-0466 Relay box isolator (Tennant Industrial) 2
3 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 4
4 999-0123 Washer 1/4 SAE flat zinc plated 13
5 999-0190 Nut 1/4-20 hex plain finish 2
6 375-0467 Intake manifold (Tennant Industrial) 1
7 375-0468 Intake manifold plug (Tennant Industrial) 1
8 375-0469 Intake manifold plug fitting (Tennant Industrial) 1
9 375-0470 Sensor port plug (Tennant Industrial) 1
10a 375-0471 12 npt plug stainless steel (Tennant Industrial) 1
10b 375-0472 Gas gasket repair kit (Tennant Industrial) 1 (includes 11 and 12)
11 375-0473 Intake manifold gasket (Tennant Industrial) 1
12 375-0474 Throttle body gasket (Tennant Industrial) 1 (T map)
13 675-5159 VR, SENSOR, SPD, TIMING WHEEL [3.0L] (Tennant Industrial) 1
14 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
15 275-2140 SCREW, SOC, M6 X 1.00 X 25, 12.9 (Tennant Industrial) 4
16 375-0476 Throttle body intake adapter (Tennant Industrial) 1
17 675-6474 VR, THROTTLE BODY [MIT , BOSCH] (Tennant Industrial) 1
18 999-0016 Washer 1/4 flat plain finish 2
19 275-6576 Screw M6-1 x 45mm (Tennant Industrial) 4
20 375-0478 Plastic fuel injector rail (Tennant Industrial) 1
21 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
22 375-0479 Vacuum fitting (Tennant Industrial) 1
23 375-0480 Vacuum hose (Tennant Industrial) 1
24 175-0199 Hose clamp 4
25 375-0481 Heater hose (Tennant Industrial) 1
26 375-0482 Air bleed tube (Tennant Industrial) 1
27 375-0483 Brass fitting (Tennant Industrial) 1
28 175-2613 Straight brass fitting 2
29 175-6081 Hose clamp 2
30 375-0484 Heater hose (Tennant Industrial) 1
31 375-3541 Module (Tennant Industrial) 1
32 175-0574 Bolt 6mm-1 x 35 hex head 4
33 275-6686 FITTING, BRS, E90 (TENNANT INDUSTRIAL) 1
34 375-0486 Orifice adapter fitting (Tennant Industrial) 1
35 375-0487 Bracket (Tennant Industrial) 1
