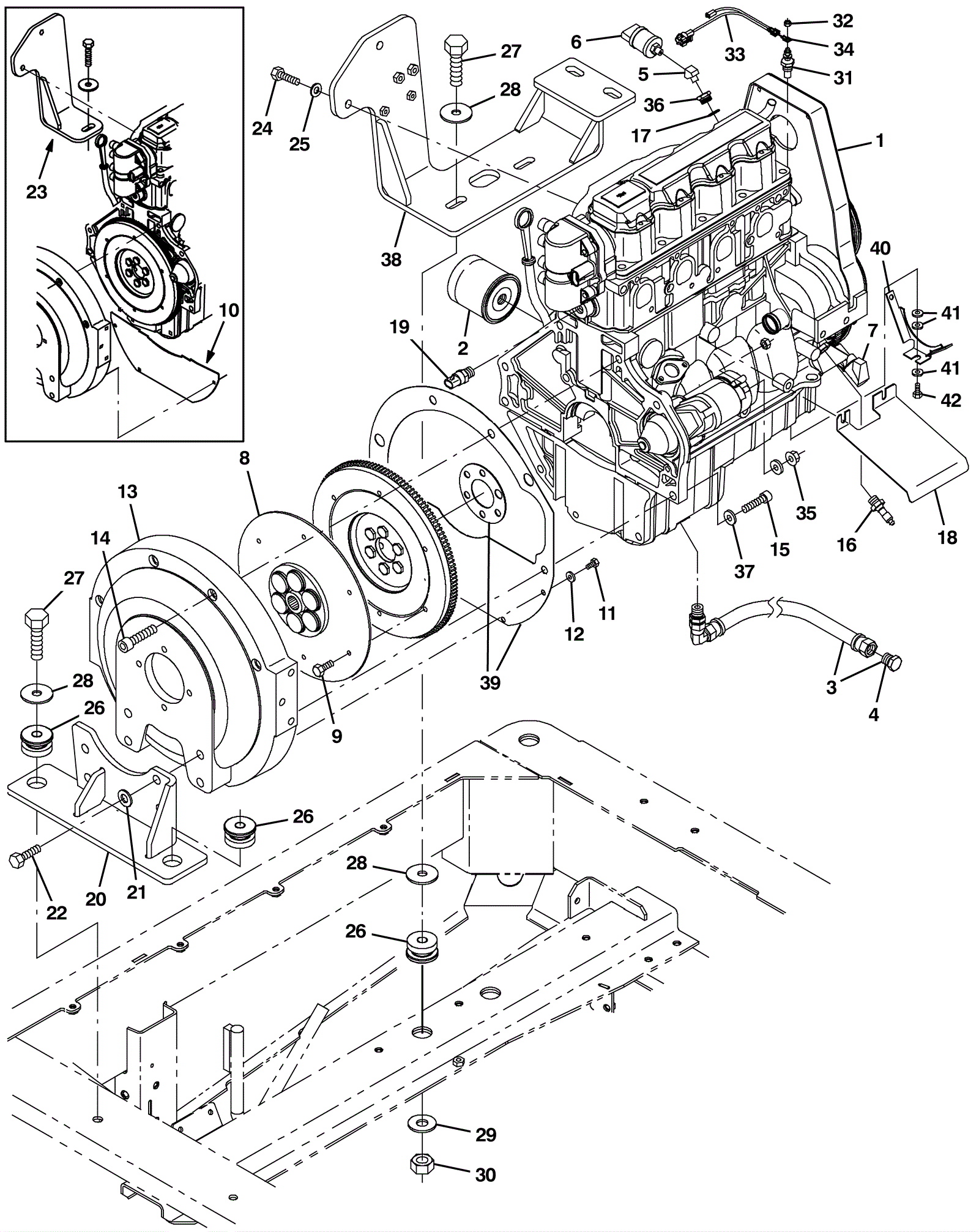

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0442
|
Engine block (Tennant Industrial) |
1 |
(see Engine Breakdowns) (includes item 2) |
|
2a |
275-5115
|
VR, ELEMENT, FLTR, OIL, ENG, SPIN-ON (Tennant Industrial) |
1 |
|
|
2b |
991-3063
|
Oil filter |
1 |
(NON-OEM) |
|
3 |
375-0443
|
Engine oil drain hose (Tennant Industrial) |
1 |
(includes 4) |
|
4 |
375-0444
|
Plug fitting (Tennant Industrial) |
1 |
|
|
5 |
275-2842
|
FITTING, BRS, E45, PF02/PM02 (Tennant Industrial) |
1 |
|
|
6 |
275-7487
|
SWITCH, PRESSURE OIL (Tennant Industrial) |
1 |
|
|
7 |
375-0445
|
Position sensor (Tennant Industrial) |
1 |
|
|
8 |
375-0446
|
Drive coupling (Tennant Industrial) |
1 |
|
|
9 |
375-0447
|
Screw M7-1 x 23 hex head (Tennant Industrial) |
6 |
|
|
10 |
375-0448
|
Repair plate kit (Tennant Industrial) |
1 |
|
|
11 |
999-0821
|
Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc |
4 |
|
|
12 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
13 |
375-0449
|
Pump housing (Tennant Industrial) |
1 |
|
|
14 |
375-0450
|
Screw M12-1.75 x 55 socket (Tennant Industrial) |
4 |
|
|
15 |
375-0451
|
Screw 3/8-16 x 1 1/2 socket (Tennant Industrial) |
2 |
|
|
16a |
375-0452
|
Oil press indicator switch (Tennant Industrial) |
1 |
|
|
16b |
375-0453
|
Oil press indicator switch (Tennant Industrial) |
1 |
|
|
17 |
375-0454
|
Relief valve gasket (Tennant Industrial) |
1 |
|
|
18 |
375-0455
|
Starter shield (Tennant Industrial) |
1 |
|
|
19 |
375-0456
|
Temperature coolant sensor (Tennant Industrial) |
1 |
|
|
20 |
375-0457
|
Gas/LPG bracket weldment (Tennant Industrial) |
1 |
|
|
21 |
999-0687
|
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
4 |
|
|
22 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
23 |
375-0458
|
Bracket weldment (Tennant Industrial) |
1 |
|
|
24 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
2 |
|
|
25 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
26 |
175-6823
|
ISOLATOR, VIB, .50D (Tennant Industrial) |
4 |
|
|
27 |
175-6824
|
Screw M12-1 3/4 x 60mm hex |
4 |
|
|
28 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
6 |
|
|
29 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
30 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
31 |
375-0459
|
Water temperature sensor (Tennant Industrial) (OBSOLETE) |
1 |
|
|
32 |
275-3158
|
NUT, HEX, STD, M5 X 0.80, 8 (Tennant Industrial) |
1 |
|
|
33 |
375-0460
|
Temperature switch harness (Tennant Industrial) |
1 |
|
|
34 |
275-1863
|
TERMINAL, TAB, .25 .19H .84L (Tennant Industrial) |
1 |
|
|
35 |
275-5476
|
Nut M8 x 1.25 hex brass (Tennant Industrial) |
1 |
|
|
36 |
375-0461
|
M18 x 1.5 pipe fitting (Tennant Industrial) |
1 |
|
|
37 |
275-6674
|
Washer flat (TENNANT INDUSTRIAL) |
2 |
|
|
38 |
375-0462
|
Bracket weldment (Tennant Industrial) |
1 |
|
|
39 |
375-0448
|
Repair plate kit (Tennant Industrial) |
1 |
|
|
40 |
375-0464
|
Belt guard plate (Tennant Industrial) |
1 |
|
|
41 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
42 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
