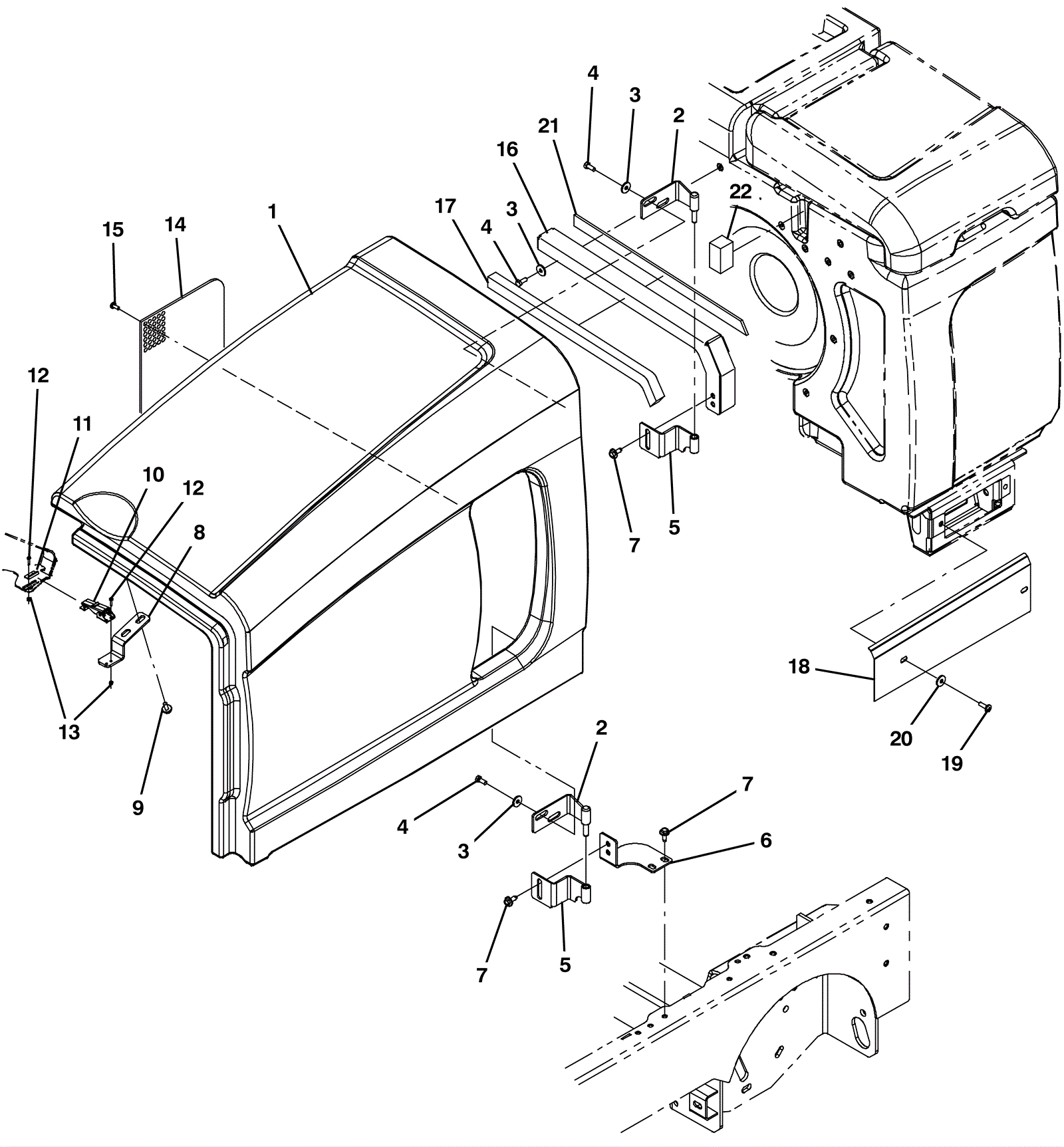

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0433
|
Shroud (Tennant Industrial) |
1 |
|
|
2 |
375-0434
|
Left hand hinge weldment pin (Tennant Industrial) |
2 |
|
|
3 |
175-7920
|
Washer M8 flat stainless steel |
6 |
|
|
4 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
6 |
|
|
5 |
375-0435
|
Left hand hinge weldment tube (Tennant Industrial) |
2 |
|
|
6 |
375-0441
|
Left hand hinge bracket (Tennant Industrial) |
1 |
|
|
7 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
6 |
|
|
8 |
375-0436
|
Latch cover bracket (Tennant Industrial) |
1 |
|
|
9 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
10 |
175-5324
|
Door latch |
1 |
|
|
11 |
175-5325
|
Keeper bracket |
1 |
|
|
12 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
4 |
|
|
13 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
14 |
375-0409
|
Left hand grill (Tennant Industrial) |
1 |
|
|
15 |
175-2146
|
Screw 6-20 x 1/2 pan head |
6 |
|
|
16 |
375-0437
|
Left hand shroud channel seal (Tennant Industrial) |
1 |
|
|
17 |
375-0438
|
Foam seal (Tennant Industrial) |
1 |
|
|
18 |
375-0439
|
Lower left hand cover (Tennant Industrial) |
1 |
|
|
19 |
275-5691
|
Screw M8-1.25 x 25mm pan head (black) (Tennant Industrial) |
2 |
|
|
20 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
21 |
375-0360
|
Foam seal (Tennant Industrial) |
1 |
|
|
22 |
375-0440
|
Foam seal (Tennant Industrial) |
1 |
|
|
