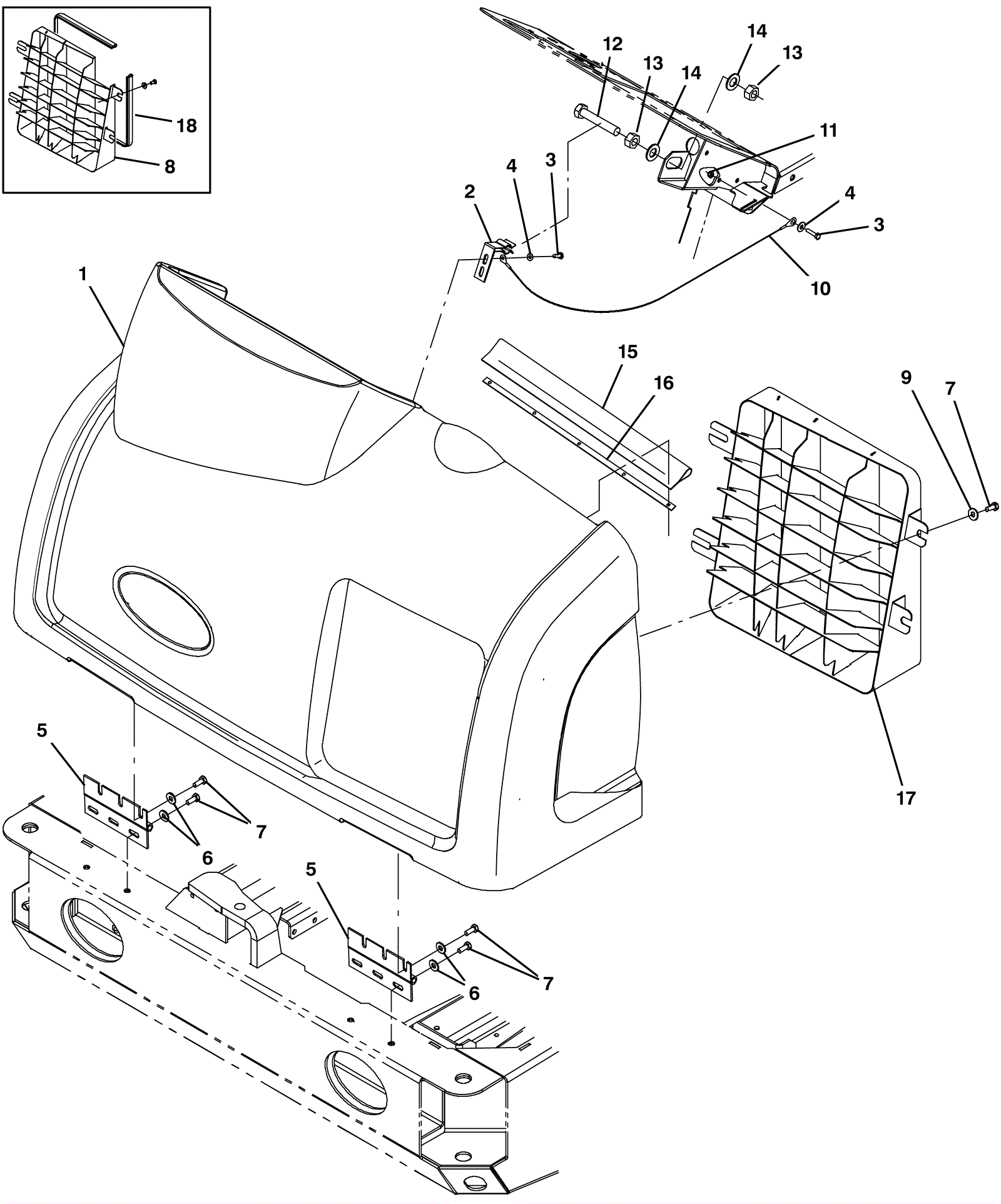

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0423
|
Front shroud (Tennant Industrial) |
1 |
|
|
2 |
375-0424
|
Latch bracket weldment (Tennant Industrial) |
1 |
|
|
3 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
|
|
4 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
5 |
275-7441
|
HINGE, HOOD (Tennant Industrial) |
2 |
|
|
6 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
7 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
12 |
|
|
8 |
375-0425
|
Front grill weldment (Tennant Industrial) |
1 |
|
|
9 |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
10 |
375-0426
|
Cable (Tennant Industrial) |
1 |
|
|
11 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
12 |
375-0427
|
Screw M16-2 x 90 hex head (Tennant Industrial) |
1 |
|
|
13 |
375-0428
|
Nut M16-2 standard hex (Tennant Industrial) |
2 |
|
|
14 |
275-0710
|
Flat washer |
2 |
|
|
15 |
375-0429
|
Front shroud seal (Tennant Industrial) |
1 |
|
|
16 |
375-0430
|
Seal strip (Tennant Industrial) |
1 |
|
|
17 |
375-0431
|
Front grill weldment (Tennant Industrial) |
1 |
|
|
18 |
375-0432
|
Bulb seal (Tennant Industrial) |
1 |
|
|
