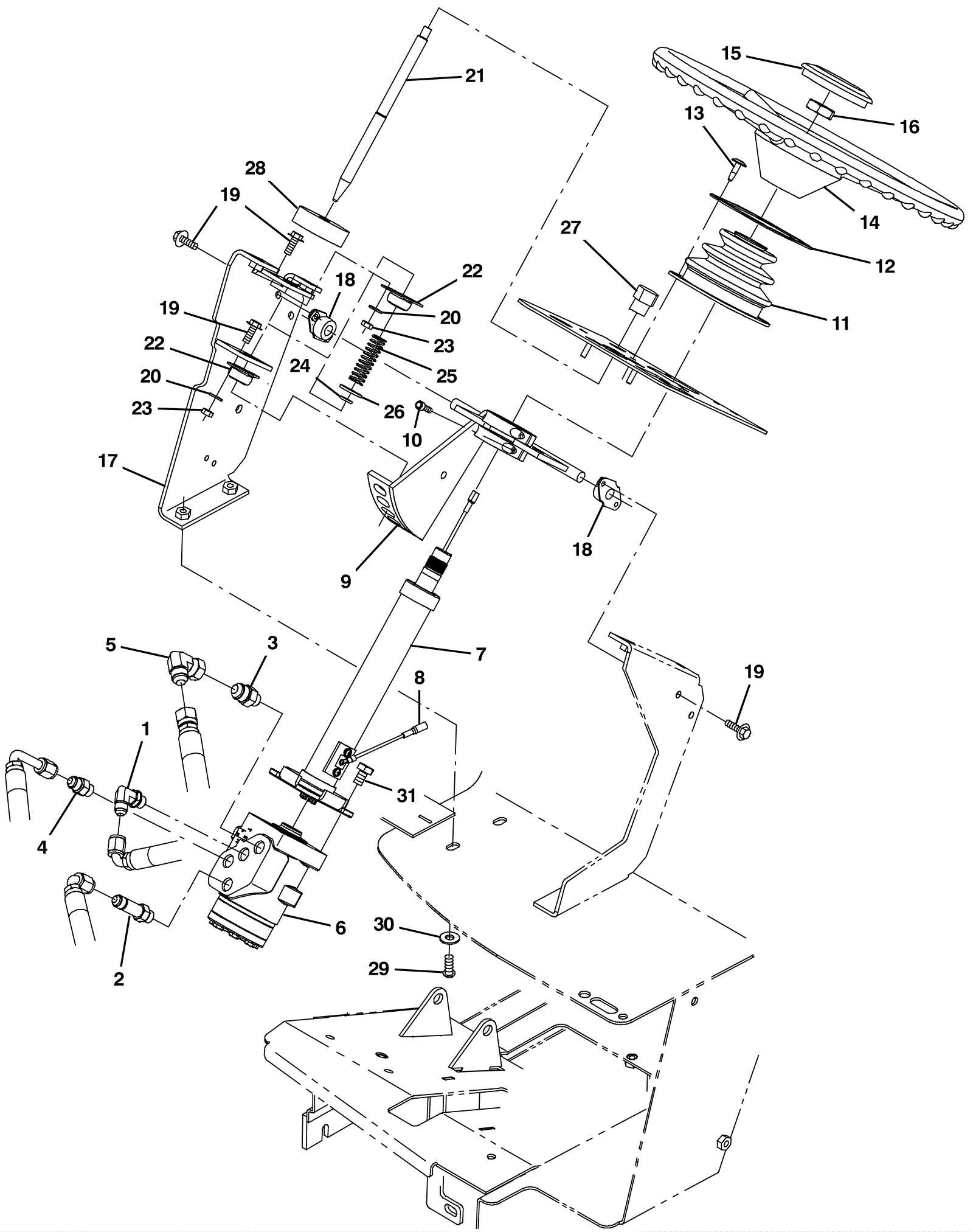

M30 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7214 Hydraulic fitting $13.64 1 usually ships 1-5 days
2 375-0415 Hydraulic fitting (Tennant Industrial) $14.50 1 usually ships 1-5 days
3 375-0422 Hydraulic fitting (Tennant Industrial) $15.50 1 usually ships 1-5 days
4 175-8103 FITTING, HYD, STR, JM06/OM06 (Tennant Industrial) $14.17 1 usually ships 1-5 days
5 275-3351 FITTING, HYD, E90, JF08/JM08 (Tennant Industrial) $17.34 1 usually ships 1-5 days
6 375-0416 Control steering (Tennant Industrial) $1,360.77 1 (see Breakdowns) usually ships 1-5 days
7 375-0417 Steering column (Tennant Industrial) $468.26 1 (includes 8) usually ships 1-5 days
8 375-0418 Contact kit (Tennant Industrial) $140.69 4 usually ships 1-5 days
9 275-7465 BRACKET WLDT, STEERING, TILT (Tennant Industrial) $173.20 1 (includes 10) usually ships 1-5 days
10 N/A Not available Call for price 4 usually ships 3-26 days
11 275-2814 BOOT, BELLOWS, 3.1L 4.4W 2.8H 1HOLE, NEO (Tennant Industria $77.68 1 usually ships 1-5 days
12 275-7467 PLATE, MOUNT, STEERING BOOT (Tennant Industrial) $15.67 1 usually ships 1-5 days
13 175-5971 Plastic rivet $3.83 4 ships same day
14 275-7953 Steering wheel (Tennant Industrial) $409.08 1 usually ships 1-5 days
15 375-0419 Horn control button (Tennant Industrial) $57.68 1 usually ships 1-5 days
16 275-2813 NUT, HEX, JAM, M20 X 1.5 (Tennant Industrial) $9.17 1 usually ships 1-5 days
17 375-0420 Right hand tilt bracket weldment (Tennant Industrial) $91.69 1 usually ships 1-5 days
18 275-2808 BEARING, FLNG, 2HOLE, 0.50B (Tennant Industrial) $11.34 2 usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 8 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
21 375-0421 Tilt steering locking pin (Tennant Industrial) $48.84 1 usually ships 1-5 days
22 275-2802 BEARING, FLNG, 2HOLE, 0.50B [NYL] (Tennant Industrial) $9.17 2 usually ships 1-5 days
23 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
24 275-2805 RING, RETAINING, EXT, 0.50D, HD (Tennant Industrial) $5.00 1 usually ships 1-5 days
25 275-0143 Compression spring $4.88 1 ships same day
26 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
27 275-2806 KNOB, TEE, 2.5 X 1.0 1.1L 0.38-16, PLSTC (Tennant Industria $17.34 1 usually ships 1-5 days
28 275-2804 INSULATION, ACSTC, RND, 0.8, 02.5D 0.5H (Tennant Industrial $5.00 1 usually ships 1-5 days
29 275-5691 Screw M8-1.25 x 25mm pan head (black) (Tennant Industrial) $5.17 2 usually ships 10-16 days
30 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
31 275-0302 Screw M10-1.5 x 16 hex head $3.83 4 usually ships 1-5 days
