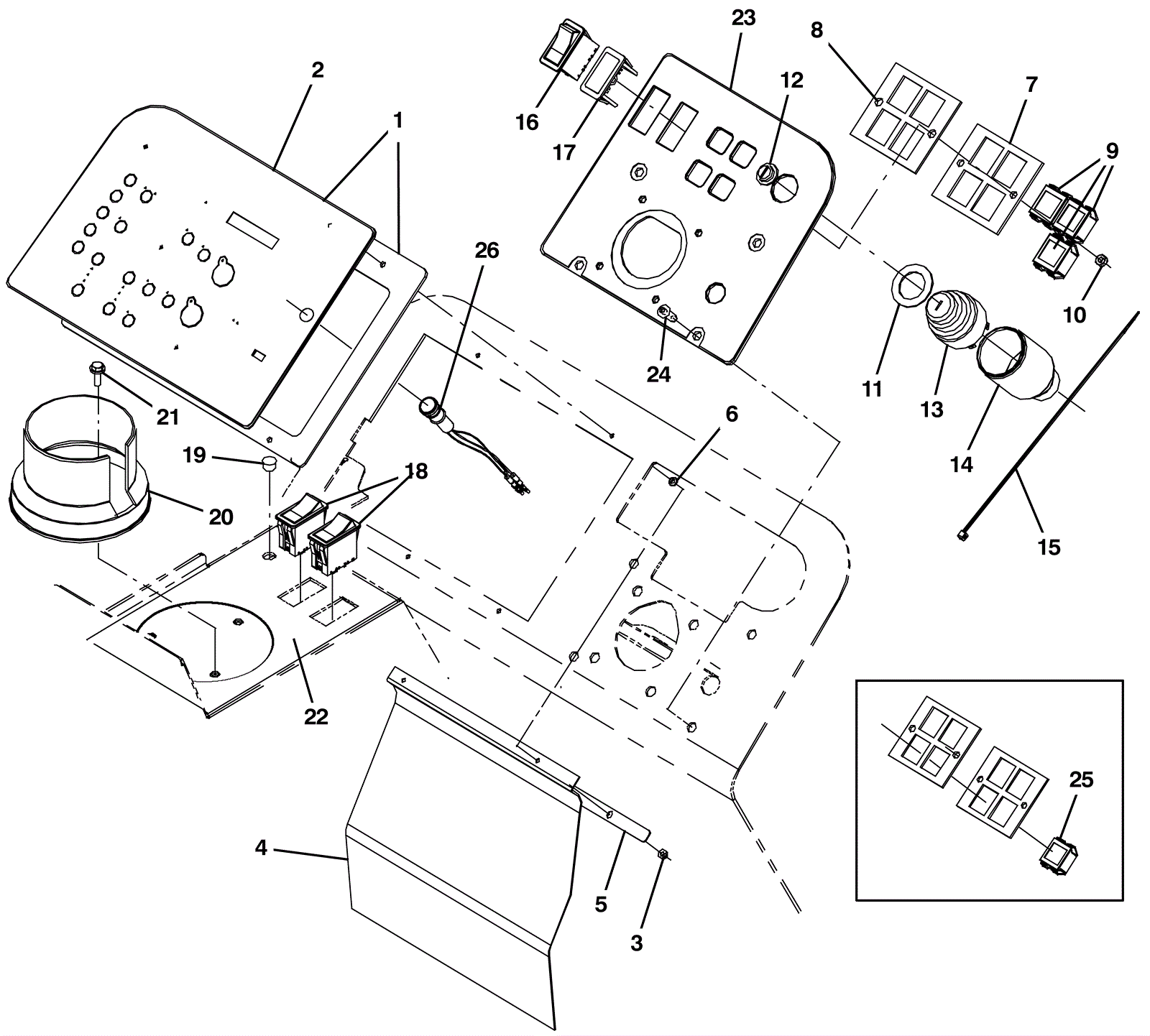

Instrumental Panal Assembly

#PartDescription ReqNotesAvailability
1a 375-0382 Repair panel kit (Tennant Industrial) 1 (includes 2a)(M20/M30)
1b 375-0384 Replacement panel kit (Tennant Industrial) 1 (includes 2b)(M20/M30 ec-H20)
2a 375-0383 Panel label kit (Tennant Industrial) 1 (M20/M30)
2b 375-0385 Replacement panel label kit (Tennant Industrial) 1 (M20/M30 ec-H20)
4 375-0387 Battery flap (Tennant Industrial) 1
5 375-0388 Flat bar (Tennant Industrial) (OBSOLETE) 1
6 375-0389 Washer nylock 8-32 (Tennant Industrial) 4
7 375-0390 Light plate (Tennant Industrial) 1
8 375-0391 Rubber seal (Tennant Industrial) 1
9 175-5962 LIGHT, PANL, 14VDC, 1.1 X 1.0 (Tennant Industrial) 3
10 999-0497 Nut M6-1 nylon insert lock stainless steel 2
11 375-0392 Washer flat (Tennant Industrial) 1
12 175-5968 BOOT, .63ID .29L .90W (Tennant Industrial) 1
13a 175-5966 Switch (Tennant Industrial) 1 (includes 13b)
13b 175-5967 KEY, IGNITION [SET OF 2] (Tennant Industrial) 1 (set of 2)
13c 991-3066 Key 1 (NON-OEM)
14 175-5980 BOOT, SWITCH, IGNITION (Tennant Industrial) 1
15 175-2162 Nylon wire tie 2
16 175-4940 SWITCH, ROCKER, DPDT, ON / OFF / ON (Tennant Industrial) 1
17 175-2556 Switch plug 1
18 275-3249 SWITCH, ROCKER, DPDT, MOM / OFF / MOM (Tennant Industrial) 2
19 175-2423 Nylon plug (black) 1
20 175-3188 Cup holder 1
21 999-1312 Screw M6-1 x 20mm hex head stainless steel 3
22 375-0393 Rocker switch label (Tennant Industrial) 1 (M20/M30)
23a 375-0394 Right hand gas replacement panel (Tennant Industrial) 1
23b 375-0395 Right hand LPG replacement panel (Tennant Industrial) 1
23c 375-0396 Right hand LPG replacement panel (Tennant Industrial) 1
24 275-5691 Screw M8-1.25 x 25mm pan head (black) (Tennant Industrial) 4
25 175-5962 LIGHT, PANL, 14VDC, 1.1 X 1.0 (Tennant Industrial) 1
26 275-4715 LED light 1 (Tri-color)(ec-H20 only)
