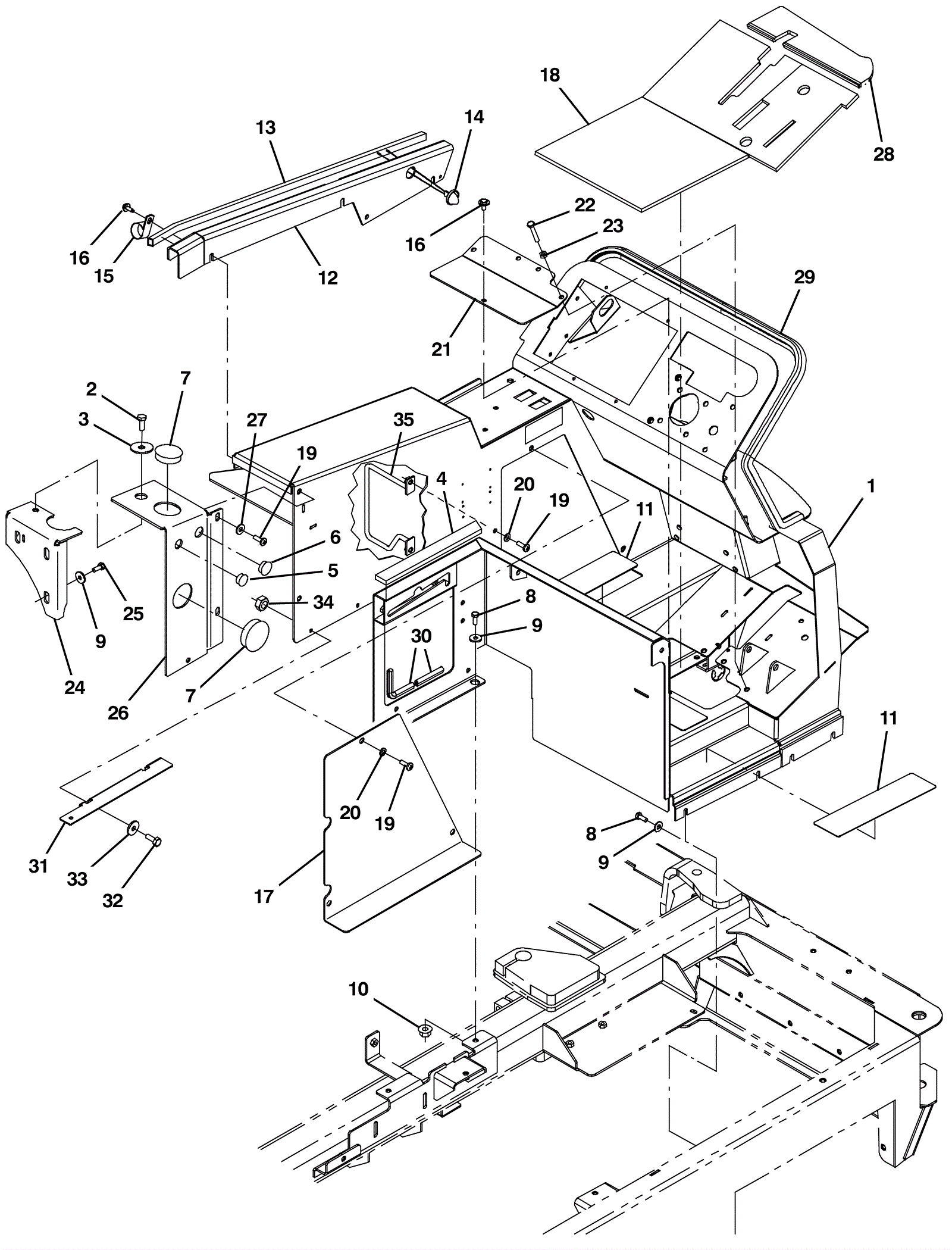

Operator Station Assembly

#PartDescription ReqNotesAvailability
1a 375-0345 Gas panel weldment (Tennant Industrial) 1
1b 375-0346 Gas panel weldment (Tennant Industrial) 1
1c 375-0347 Gas panel weldment (Tennant Industrial) 1
1d 375-0348 Gas panel weldment (Tennant Industrial) 1
1e 375-0349 Gas panel weldment (Tennant Industrial) 1
1f 375-0350 Gas panel weldment (Tennant Industrial) 1
1g 375-0351 LPG panel weldment (Tennant Industrial) 1
1h 375-0352 LPG panel weldment (Tennant Industrial) 1
1i 375-0353 LPG panel weldment (Tennant Industrial) 1
1j 375-0354 LPG panel weldment (Tennant Industrial) 1
1k 375-0355 LPG panel weldment (Tennant Industrial) 1
1l 375-0356 LPG panel weldment (Tennant Industrial) 1
1m 375-0357 LPG panel weldment (Tennant Industrial) 1
1n 375-0358 LPG panel weldment (Tennant Industrial) 1
1o 375-0359 LPG panel weldment (Tennant Industrial) 1
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 1
3 175-3470 Washer .53b 1.88d .12 steel plated 1
4 375-0360 Foam seal (Tennant Industrial) 1
5 275-4640 Hole plug 1
6 275-1882 PLUG, HOLE, RND, 1.00H .03-.12, BLK NYL (Tennant Industrial 1
7 375-0361 Round hole plug (Tennant Industrial) 2
8 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 6
9 175-7920 Washer M8 flat stainless steel 9
10 999-0665 Nut M8-1.25 flange lock 1
11 275-0239 Non-skid tread 3w 11.6l 2
12 375-0362 Adjustment panel (Tennant Industrial) 1
13 375-0363 Foam seal (Tennant Industrial) 1
14 375-0364 Side panel light assembly (Tennant Industrial) 1
15 175-5314 P clamp (Tennant Industrial) 5
16 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) 6
17 375-0365 Access door panel (Tennant Industrial) 1
18 375-0366 Floor mat (Tennant Industrial) 1
19 275-5691 Screw M8-1.25 x 25mm pan head (black) (Tennant Industrial) 7
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 5
21 375-0367 Access floor panel 1
22 175-5337 Screw M8 x 1.25 x 60mm hex 1
23 999-0579 Nut M8-1.25 hex coarse thread zinc 1
24 375-0368 Tank bracket weldment (Tennant Industrial) 1
25 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3
26 375-0369 Bracket (Tennant Industrial) 1
27 999-0024 Washer 5/16 flat stainless steel 2
28 375-0370 Floor mat (Tennant Industrial) 1
29 375-0371 Panel seal (OBSOLETE) 1
30 275-8203 Molding 1
31 375-0372 Insulation bracket (Tennant Industrial) 1
32 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
33 999-0123 Washer 1/4 SAE flat zinc plated 2
34 999-0469 Nut M6-1 nylon insert lock zinc plated 2
35 375-0373 Hose bracket weldment (Tennant Industrial) 1
