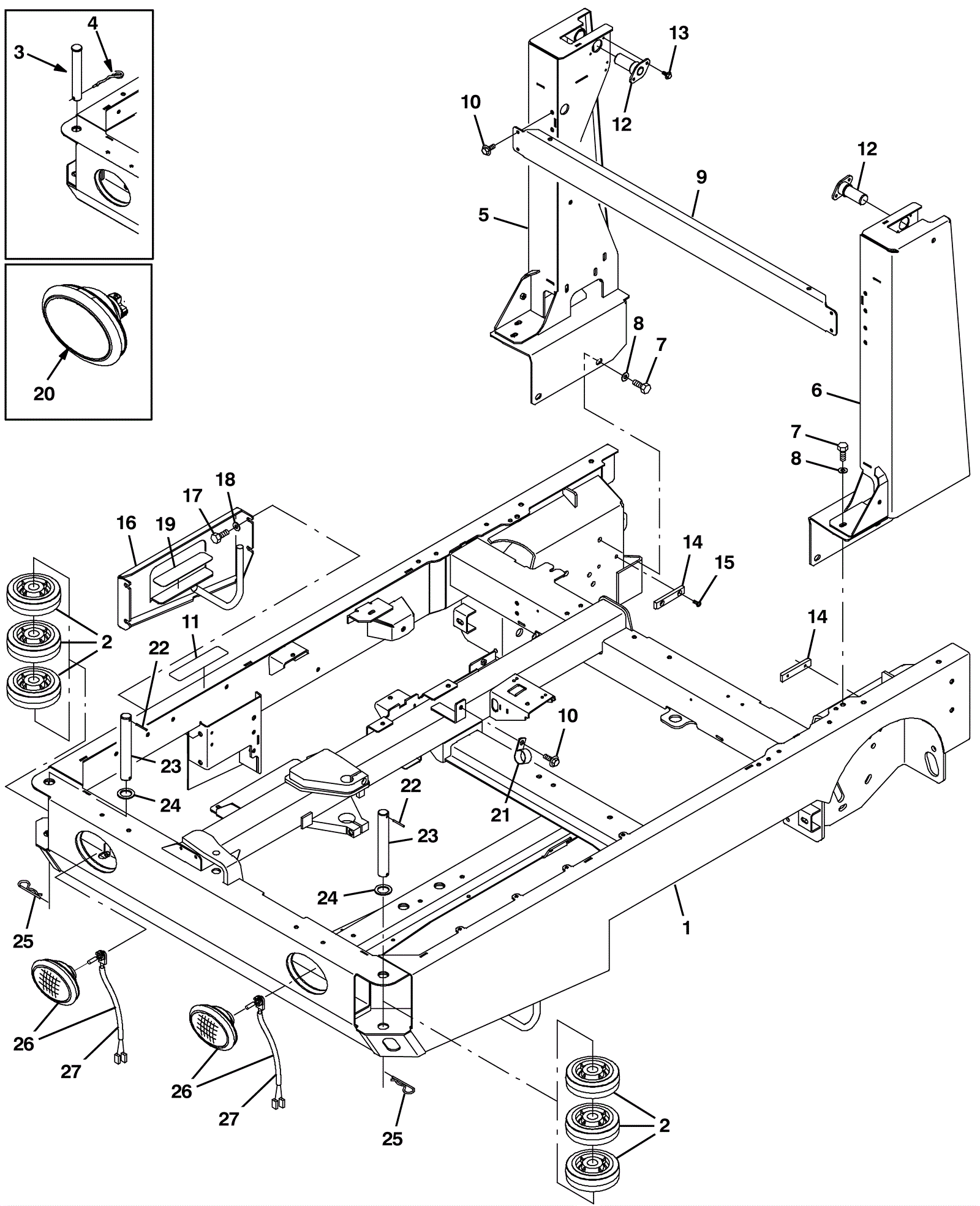

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0332
|
Main frame weldment (Tennant Industrial) |
1 |
|
|
2 |
375-0333
|
Wheel (Tennant Industrial) |
6 |
|
|
3 |
375-0334
|
Wheel pin kit (Tennant Industrial) |
2 |
|
|
4 |
375-0335
|
Double hair cotter pin (Tennant Industrial) |
2 |
|
|
5 |
375-0336
|
Right hand lift tower weldment (Tennant Industrial) |
1 |
|
|
6 |
375-0337
|
Left hand lift tower weldment (Tennant Industrial) |
1 |
|
|
7 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
10 |
|
|
8 |
999-0032
|
Washer 3/8 USS flat plain finish |
10 |
|
|
9 |
375-0338
|
Upper tower lift channel (Tennant Industrial) |
1 |
|
|
10 |
275-9575
|
SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) |
5 |
|
|
11 |
275-0239
|
Non-skid tread 3w 11.6l |
1 |
|
|
12 |
375-0339
|
Pivot hopper pin weldment (Tennant Industrial) |
2 |
|
|
13 |
175-3166
|
Bolt M6-1 x 16mm hex head |
4 |
|
|
14 |
275-9480
|
BLOCK, CENTERING (Tennant Industrial) |
2 |
|
|
15 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
4 |
|
|
16 |
375-0340
|
Filler panel weldment (Tennant Industrial) |
1 |
|
|
17 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
4 |
|
|
18 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
19 |
275-2225
|
TREAD, NON-SKID, 01.9W 08.0L (Tennant Industrial) |
1 |
|
|
20a |
375-4303
|
12V oval headlight (Tennant Industrial) |
2 |
(includes 20b and 20c) |
|
20b |
275-4676
|
Bulb |
1 |
|
|
20c |
275-6321
|
Lamp receptacle (TENNANT INDUSTRIAL) |
1 |
|
|
21 |
175-5314
|
P clamp (Tennant Industrial) |
1 |
|
|
22 |
375-0341
|
Roll pin (Tennant Industrial) |
2 |
|
|
23 |
375-0342
|
Pin (Tennant Industrial) |
2 |
|
|
24 |
375-0343
|
Flat washer (Tennant Industrial) |
2 |
|
|
25 |
375-0344
|
Cotter hair pin |
2 |
|
|
26 |
375-4303
|
12V oval headlight (Tennant Industrial) |
2 |
(includes 27) |
|
27 |
275-6323
|
Halogen lamp (TENNANT INDUSTRIAL) |
1 |
|
|
