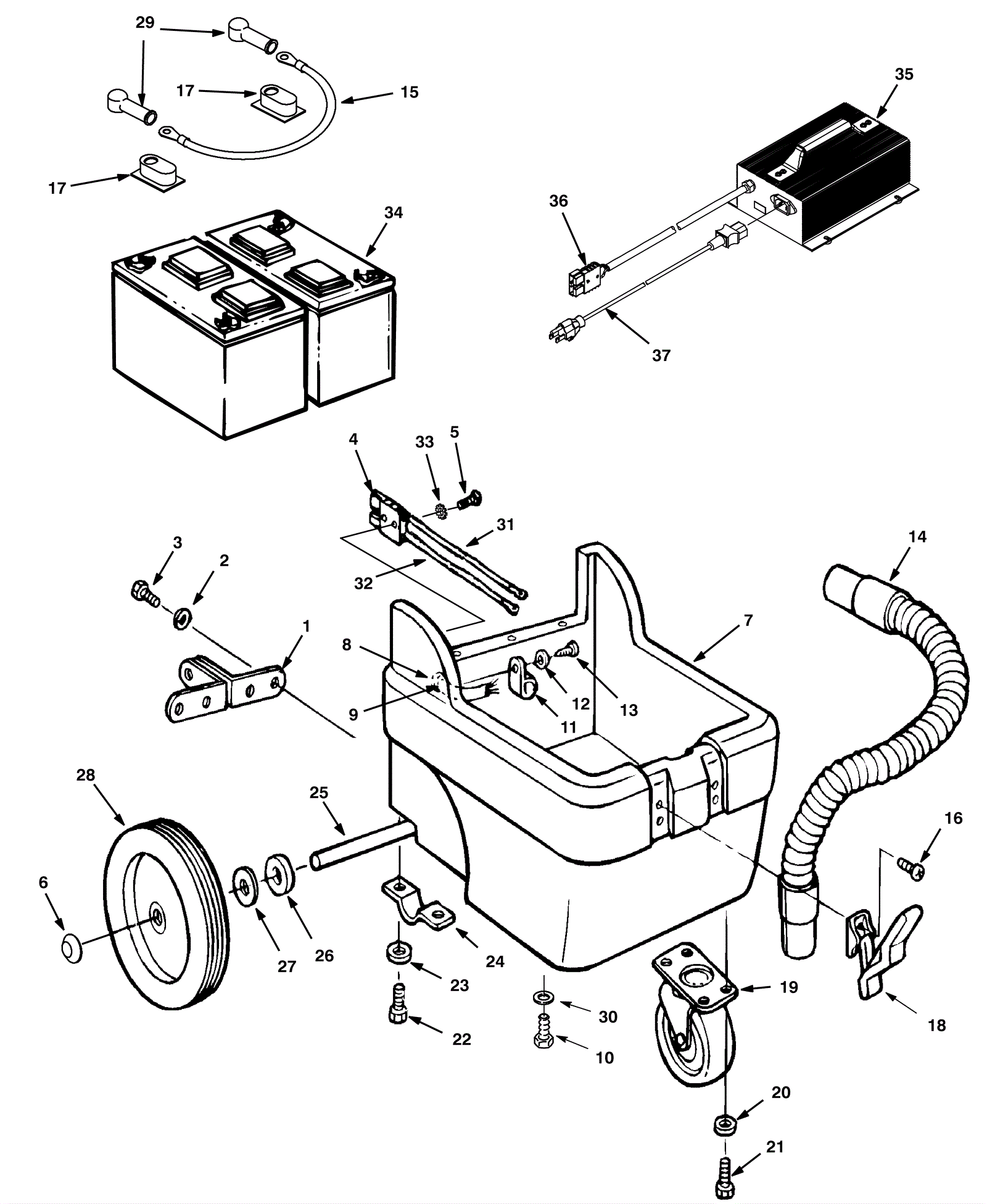

V-WD-16B Battery Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1551 Bracket $25.41 2 usually ships 5-16 days
2 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
3 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
4 991-2103 50amp charger plug SB50 with pins (red) $4.94 1 ships same day
5 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
6 175-6097 Hub cap $4.84 2 ships same day
7 375-0032 Battery housing $654.61 1 usually ships 1-5 days
8 175-6591 Strain relief bushing $4.07 1 usually ships 5-16 days
9 175-6600 Grommet $4.18 1 usually ships 1-5 days
10 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
11 175-0339 P clamp $3.30 1 usually ships 5-16 days
12 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
14a 175-7966 Vacuum hose with short cuffs $53.11 1 ships same day
14b 991-5139 Vacuum hose with short cuffs $16.94 1 (NON-OEM) ships same day
15a 998-0010 Battery jumper cable - ring type (red) $3.87 1 ships same day
15b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $11.63 1 (NON-OEM) usually ships 5-16 days
16 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 4 ships same day
17 175-2121 Battery terminal cover (clear) $3.96 4 usually ships 5-16 days
18a 175-3369 Hood latch $32.12 2 usually ships 5-16 days
18b 991-8561 Rubber draw latch with keeper $22.10 2 ships same day
19 175-0888 4 inch swivel caster wheel $62.04 2 ships same day
20 999-0553 Washer 5/16 medium split lock stainless steel $0.99 8 ships same day
21 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 8 ships same day
22 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
23 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
24 175-6098 Axle bracket $17.71 2 usually ships 5-16 days
25 175-6603 Axle $29.48 1 usually ships 5-16 days
26 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
27 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
28 175-1902 Wheel $121.11 2 usually ships 5-16 days
29 175-1103 Battery cable boot (black) $4.73 4 ships same day
30 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
31 175-6604 Wire assembly #14 x 17 inch $18.26 1 usually ships 1-5 days
32 175-6605 Wire assembly #14 x 22 inch $21.23 1 usually ships 1-5 days
33 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
35 275-9111 24V 11amp off-board battery charger $756.36 1 usually ships 5-16 days
36 991-2103 50amp charger plug SB50 with pins (red) $4.94 1 ships same day
37a 275-0052 16/3 charger extension cord 10 foot $14.41 1 ships same day
37b 991-3048 Charger cord $6.29 1 (NON-OEM) ships same day
N/S 375-0033 Harness $30.03 1 usually ships 1-5 days
