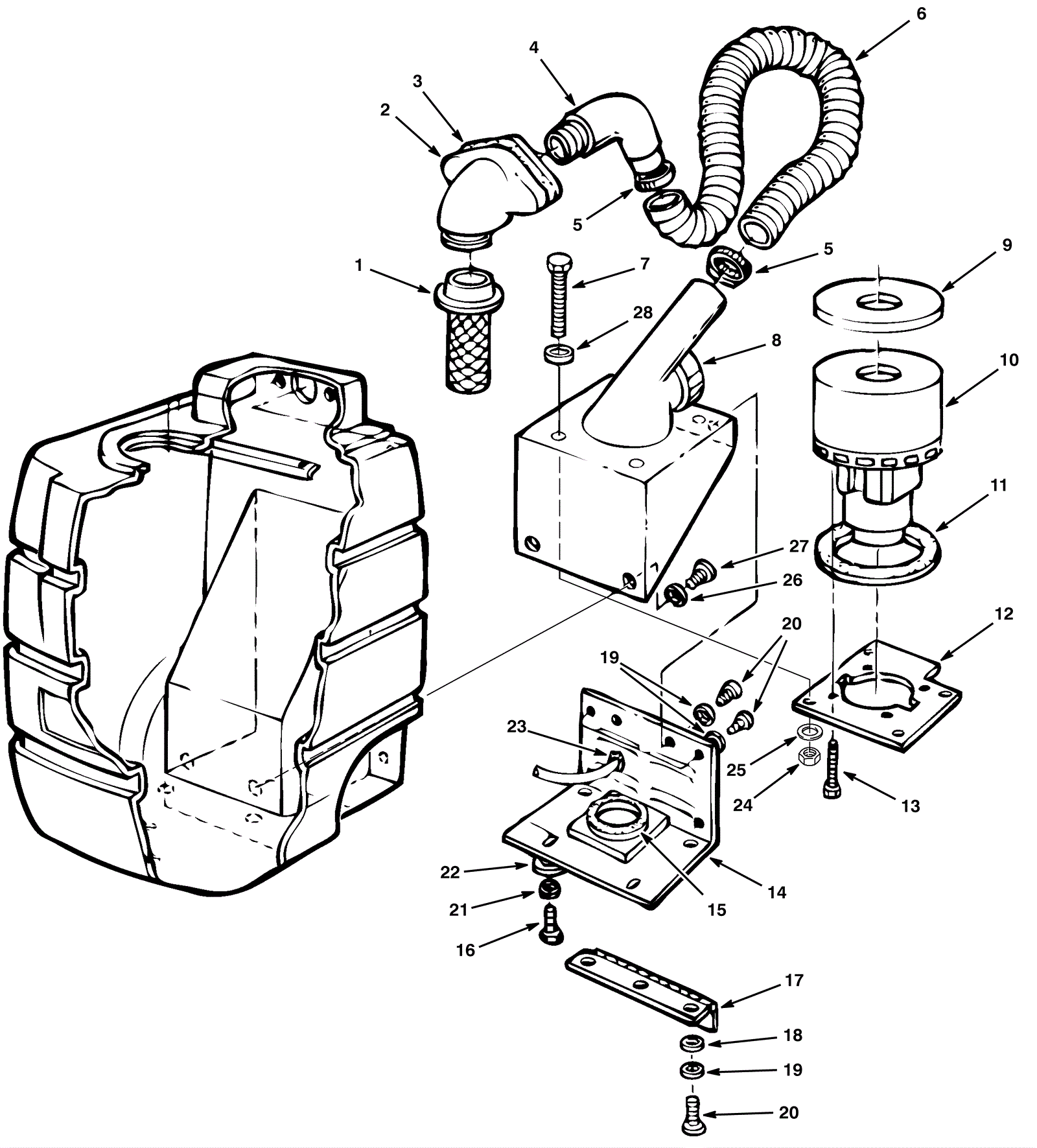

V-WD-16B Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 675-9887 Shut-off float $123.20 1 usually ships 13-17 days
1b 991-5136 Shut-off float $32.10 1 (NON-OEM) ships same day
2 175-1574 Vacuum tube elbow $64.24 1 usually ships 13-17 days
3 175-1575 Elbow gasket $6.38 1 usually ships 13-17 days
4 175-1577 Elbow assembly $78.21 1 usually ships 1-5 days
5 175-2057 Hose clamp $6.27 2 usually ships 1-5 days
6 175-1578 Vacuum hose 2 x 13 inch $20.57 1 usually ships 13-17 days
7 999-0728 Bolt 1/4-20 x 4 1/2 hex head grade 5 zinc plated $2.33 4 ships same day
8 175-1583 Vacuum motor hose mount $185.35 1 usually ships 13-17 days
9 175-6085 Gasket $10.89 1 ships same day
10a 175-6592 24V 3 stage vacuum motor $564.74 1 (includes 10b) usually ships 13-17 days
10b 175-2658 Carbon brush (pkg of 2) $38.94 1 ships same day
11 175-0053 Gasket $8.80 1 ships same day
12 175-1569 Motor mounting bracket $39.05 1 usually ships 13-17 days
13 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 4 usually ships 19-32 days
14 175-6593 Motor cover plate $187.22 1 usually ships 1-5 days
15 175-6594 Vacuum motor end gasket $10.56 1 usually ships 13-17 days
16 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
17 175-6595 Hinge $28.05 1 usually ships 1-5 days
18 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
19 175-4544 Washer M6 locking $4.49 7 ships same day
20 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 7 ships same day
21 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
22 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
23 175-6158 Nut 1/2 conduit $5.28 1 usually ships 13-17 days
24 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
26 175-4544 Washer M6 locking $4.49 2 ships same day
27 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
28 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 4 ships same day
