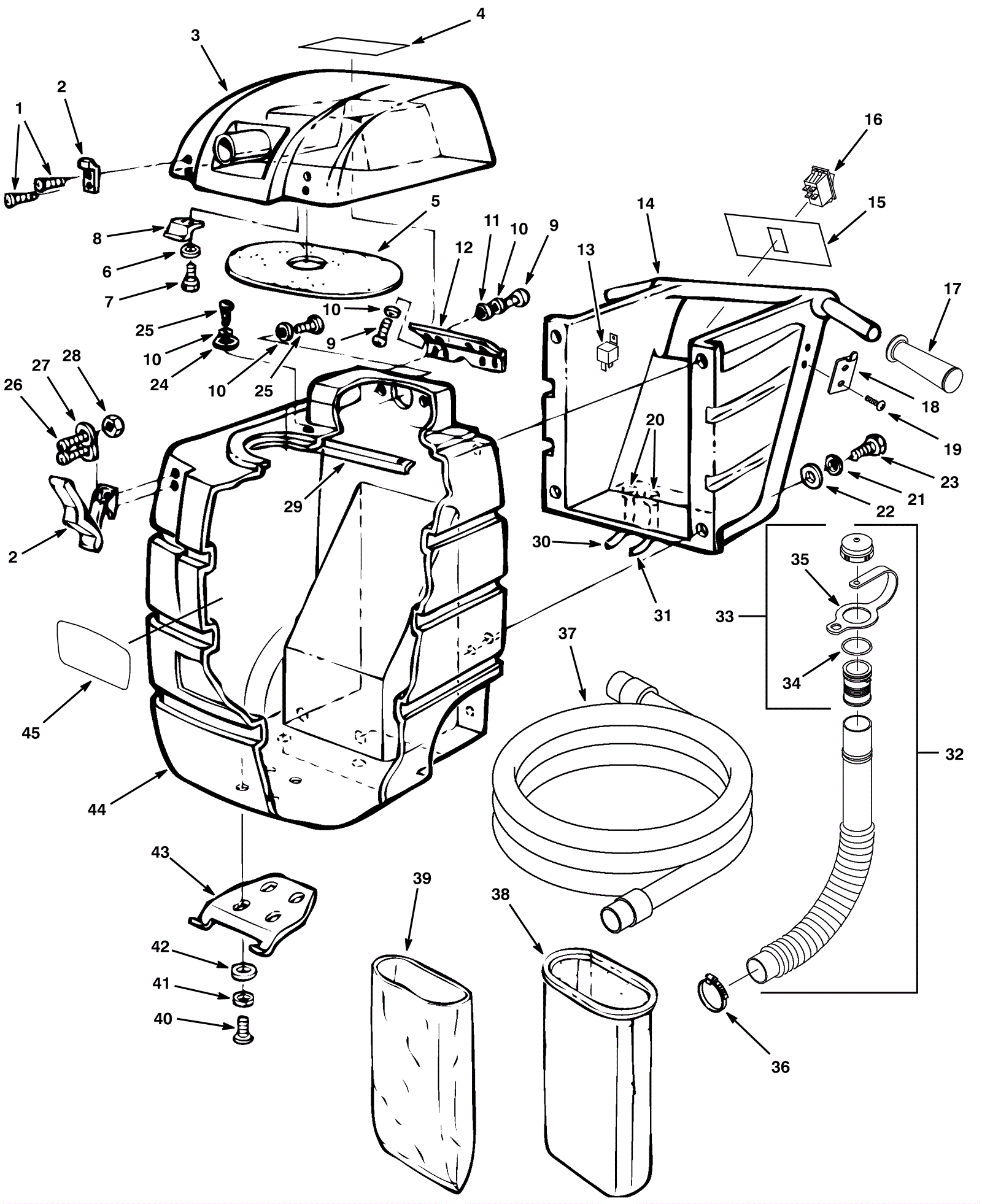

V-WD-16B Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 4 ships same day
2a 175-3369 Hood latch $32.12 2 usually ships 5-16 days
2b 991-8561 Rubber draw latch with keeper $22.10 2 ships same day
3 375-0027 Cover $362.56 1 usually ships 1-5 days
4 375-0031 Warning decal $35.97 1 usually ships 5-16 days
5 175-0282 Tank lid gasket $27.94 1 ships same day
6 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
7 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
8 175-1528 Air deflector bracket $39.16 1 usually ships 5-16 days
9 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 13 ships same day
10 175-4544 Washer M6 locking $4.62 13 ships same day
11 999-0016 Washer 1/4 flat plain finish $0.99 13 ships same day
12 175-1550 Hinge $24.31 1 usually ships 5-16 days
13 175-6588 24V 70amp elevated relay $17.16 1 ships same day
14 375-0028 Vacuum handle $663.96 1 usually ships 1-5 days
15 175-6590 Dash decal $58.85 1 usually ships 5-16 days
16 175-1008 Rocker switch $30.25 1 usually ships 5-16 days
17a 175-2703 Handle grip $4.07 2 ships same day
17b 991-8571 Handle grip $2.33 2 (NON-OEM) ships same day
18 175-5549 Drain hose hanger bracket $10.01 1 usually ships 5-16 days
19 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
20 175-6591 Strain relief bushing $4.07 2 usually ships 5-16 days
21 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
22 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
23 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
24 999-1119 Washer 1/4 x 1 fender zinc plated $0.99 2 ships same day
25 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 6 ships same day
26 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 4 ships same day
27 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
28 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
29 175-5749 Support bracket $20.57 1 usually ships 1-5 days
30 375-0029 Cord (black) $174.13 1 usually ships 5-16 days
31 375-0030 Cord (black) $77.55 1 usually ships 5-16 days
32a 175-1535 Drain hose assembly $104.28 1 (includes 33-35) ships same day
32b 991-1907 22 inch molded hose with drain cap $32.14 1 (NON-OEM) ships same day
33a 175-4214 Drain plug assembly $19.91 1 (includes 34 and 35) ships same day
33b 991-3028 Drain plug assembly $10.74 1 ships same day
34 175-5804 O-ring $11.44 1 ships same day
35 175-4214 Drain plug assembly $19.91 1 ships same day
36 997-2000 Hose clamp $2.37 1 ships same day
37a 175-7966 Vacuum hose with short cuffs $53.11 1 ships same day
37b 991-5139 Vacuum hose with short cuffs $16.94 1 (NON-OEM) ships same day
38 175-5753 Cloth filter bag (OBSOLETE) $85.36 1 usually ships 5-16 days
39 175-1531 Paper bag (pkg of 10) $28.71 1 ships same day
40 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
41 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
42 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
43 175-6597 Latch plate $45.32 1 usually ships 1-5 days
44 275-6083 Recovery tank (gray) $636.02 1 usually ships 1-5 days
45a 275-9770 Dual logo decal (Tennant Industrial) $8.02 1 usually ships 1-5 days
45b 275-9771 TCO small decal $26.84 1 usually ships 1-5 days
