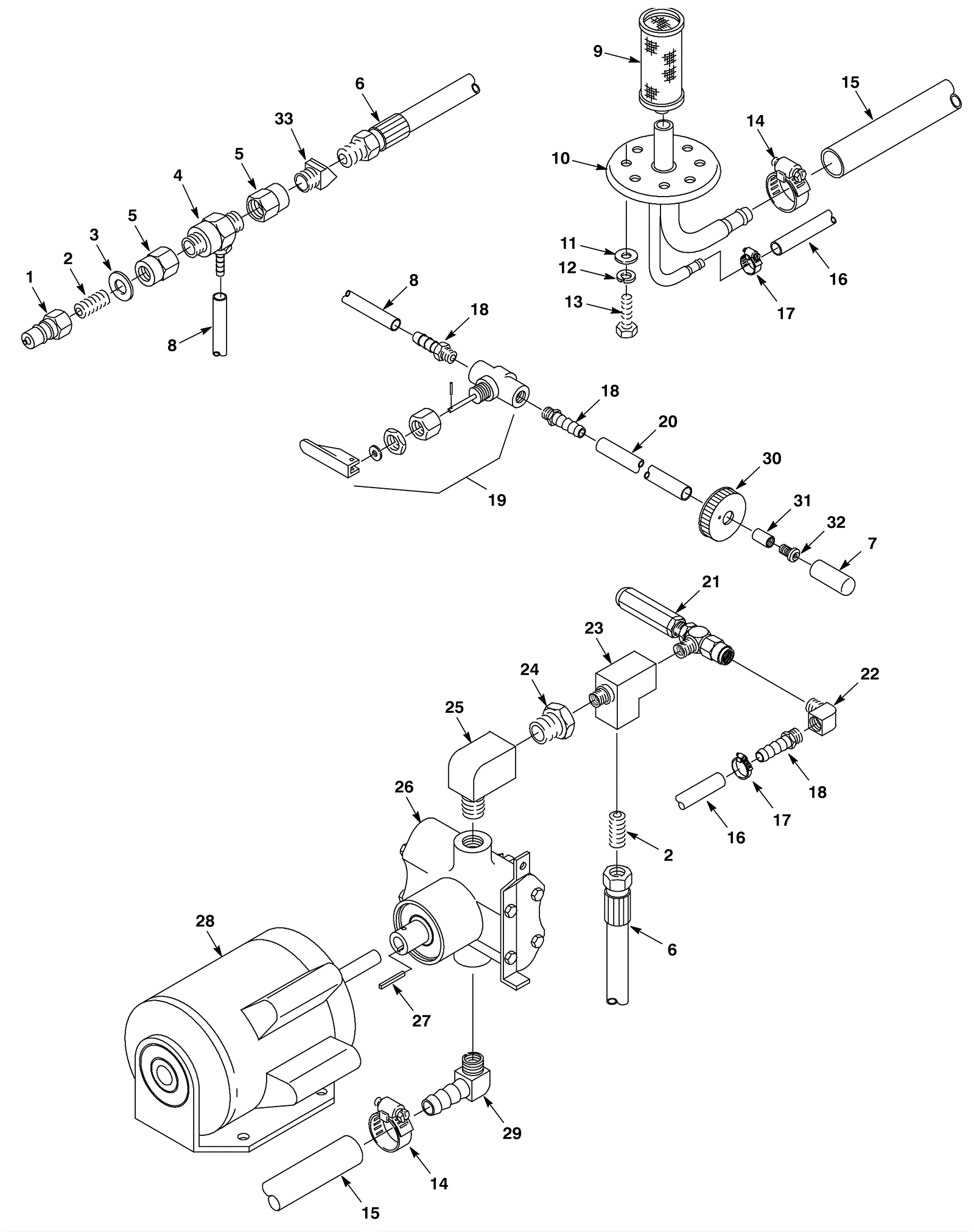

Plumbing Assembly

#PartDescription ReqNotesAvailability
1 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
2 175-6244 Nipple 2
3 175-1825 Washer 1
4 175-1924 Injector 1
5 175-1925 1/4 inch brass adapter 2
6 175-1926 36 inch pulse hose assembly 1
7 175-1927 Vinyl cap 1
8 175-4876 PVC hose 1/4 x 12 inch (gray) 10 in
9 175-1929 Solution screen 1
10 175-1930 Bladder plate assembly 1
11 999-0016 Washer 1/4 flat plain finish 4
12 999-0632 Washer 1/4 split lock stainless steel 4
13 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
14 175-6081 Hose clamp 2
15 175-6552 Hose 1/2 x 35 inch 36 in
16 175-1936 Hose 1/4 x 40 inch (OBSOLETE) 41 in
17 175-3594 Hose clamp 2
18 175-1659 Fitting 3
19 175-1939 Ball valve 1
20 175-1940 76 inch tubing (blue) 76 in
21 175-1941 Pressure relief valve 1
22 175-1661 90 degree elbow fitting 1
23 175-6029 Straight tee 1
24 175-1944 Brass bushing 1
25 175-1945 Elbow fitting 1/2 x 1/2 inch 1
26 375-2583 Water pump kit 1 (includes 27)
27 175-1918 Square keyway 1
28 175-1885 1/3 HP pump drive motor 1
29 175-1947 Elbow fitting 1/2 x 1/2 inch 1
30 175-1950 Cap 1 gallon bottle (OBSOLETE) 1
31 175-1951 Spacer 5/16 x 1/2 1
32 175-1952 Metering tips kit (pkg of 14) 1
33 175-6031 Straight jet fitting 1
