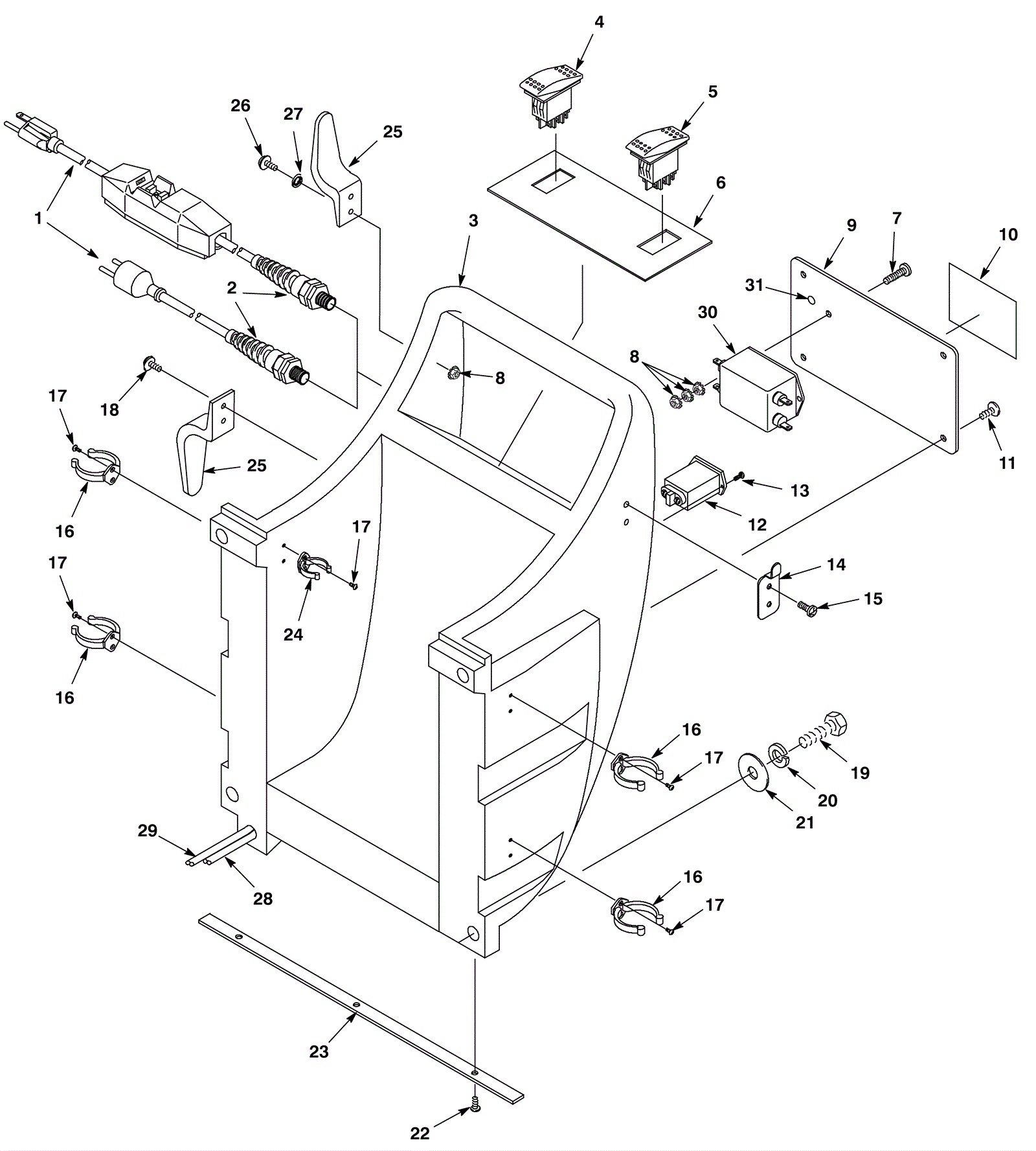

Handle Assembly

#PartDescription ReqNotesAvailability
1a 175-1843 14/3 power cord 25 feet with GFCI 1 (standard)
1b 375-0023 Cord assembly (yellow) 1 (optional)
2 175-0001 Strain relief 1
3 375-0025 Handle 1
4 175-1008 Rocker switch 1
5 175-1847 Rocker switch 1
6 175-1848 Dash decal 1
7 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
8 999-0356 Nut 10-24 lock stainless steel 5
9 175-6542 Plate assembly with decal 1 (includes 10)
10 275-9008 Warning decal 1
11 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 4
12a 275-9009 Hour meter (analog) 1
12b 375-0026 Hour meter (LCD) 1
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
14 175-5549 Drain hose hanger bracket 1
15 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
16 175-1858 Wand clip 4
17 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 10
18 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
19 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
20 999-0034 Washer 3/8 split lock plain finish 4
21 999-0617 Washer 3/8 x 1 flat stainless steel 4
22 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 3
23 175-1865 Wand stop plate 1
24 175-1866 Telescoping wand clip 1
25 175-1756 Cord hook 2
26 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
27 999-0311 Washer #10 external star lock zinc plated 2
28 175-1870 Cord assembly (black) 1
29 175-1871 14/3 power cord 63 inch (black) 1
30 175-6544 Corcom filter 1
31 175-3555 Textless ground decal 1
