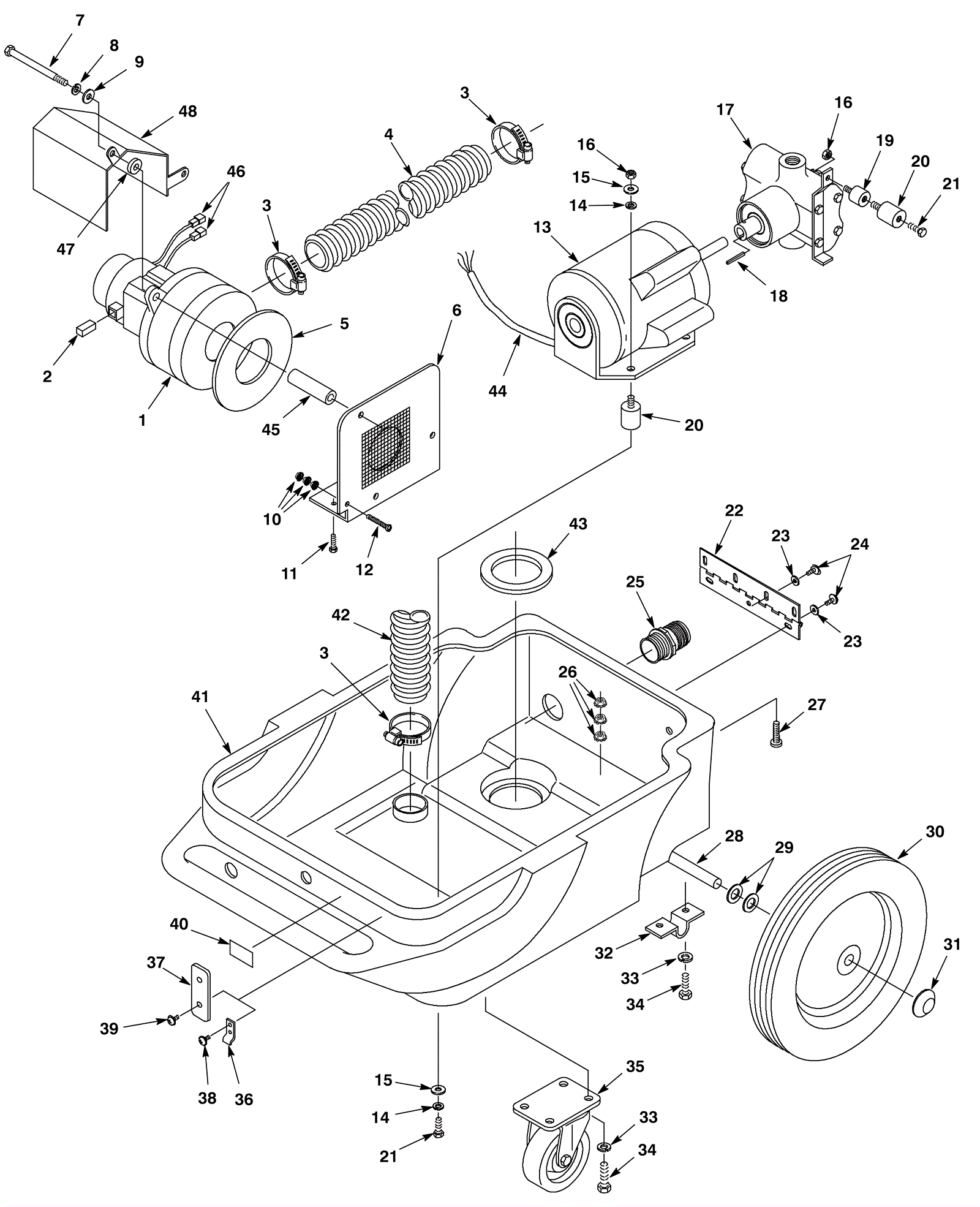

ASC-15 Lower Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-6537 Vacuum motor $480.15 1 (includes item 2) usually ships 10-16 days
2 175-0251 Carbon brush (pkg of 2) $39.05 1 usually ships 10-16 days
3 175-2057 Hose clamp $5.83 3 usually ships 1-5 days
4 175-1578 Vacuum hose 2 x 13 inch $19.14 1 usually ships 10-16 days
5 175-6085 Gasket $10.12 1 ships same day
6 175-1878 Vacuum motor mounting bracket $88.00 1 usually ships 1-5 days
7 999-0682 Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated $1.06 3 ships same day
8 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
9 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
10 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
11 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
12 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
13a 175-1885 1/3 HP pump drive motor $961.18 1 (includes 13b and 13c) usually ships 10-16 days
13b 375-0020 Start capacitor (OBSOLETE) $35.09 1 usually ships 10-16 days
13c 375-0021 Run capacitor $69.85 1 usually ships 1-5 days
14 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
16 999-0593 Nut 5/16-18 hex stainless steel $0.99 3 ships same day
17 375-2583 Water pump kit $2,100.45 1 (includes 18) usually ships 10-16 days
18 175-1918 Square keyway $6.16 1 usually ships 1-5 days
19 175-1893 Motor mount $11.22 1 usually ships 1-5 days
20 175-1891 Motor mount $18.92 3 usually ships 10-16 days
21 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
22 175-6077 Tank hinge $13.20 1 ships same day
23 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
24 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
25 175-0203 Hose barb fitting $6.05 1 usually ships 10-16 days
26 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
27 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
28 175-1900 Axle $23.21 1 usually ships 10-16 days
29 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
30 175-1902 Wheel $123.64 2 usually ships 10-16 days
31 175-6097 Hub cap $5.50 2 ships same day
32 175-6098 Axle bracket $18.15 2 usually ships 10-16 days
33 999-0632 Washer 1/4 split lock stainless steel $0.99 12 ships same day
34 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 12 ships same day
35 175-0888 4 inch swivel caster wheel $63.36 2 ships same day
36a 175-3369 Hood latch $32.78 2 usually ships 10-16 days
36b 991-8561 Rubber draw latch with keeper $27.63 2 usually ships 14-21 days
37 175-6536 Tank strap $7.81 2 usually ships 1-5 days
38 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 8 ships same day
39 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 4 ships same day
40 175-1912 Chemical decal $5.41 1 usually ships 1-5 days
41 275-9853 Chassis housing $552.09 1 usually ships 1-5 days
42 175-1917 Hose 2 x 28 inch $37.95 1 usually ships 10-16 days
43 175-1920 Vacuum motor intake gasket $8.14 1 usually ships 10-16 days
44 175-6539 Cord 18/3 x 24 inch $9.79 1 usually ships 1-5 days
45 175-1919 Spacer $13.09 3 usually ships 10-16 days
47 175-1362 Nylon spacer $3.96 2 usually ships 10-16 days
48 175-6540 Vacuum motor shield $65.12 1 usually ships 10-16 days
