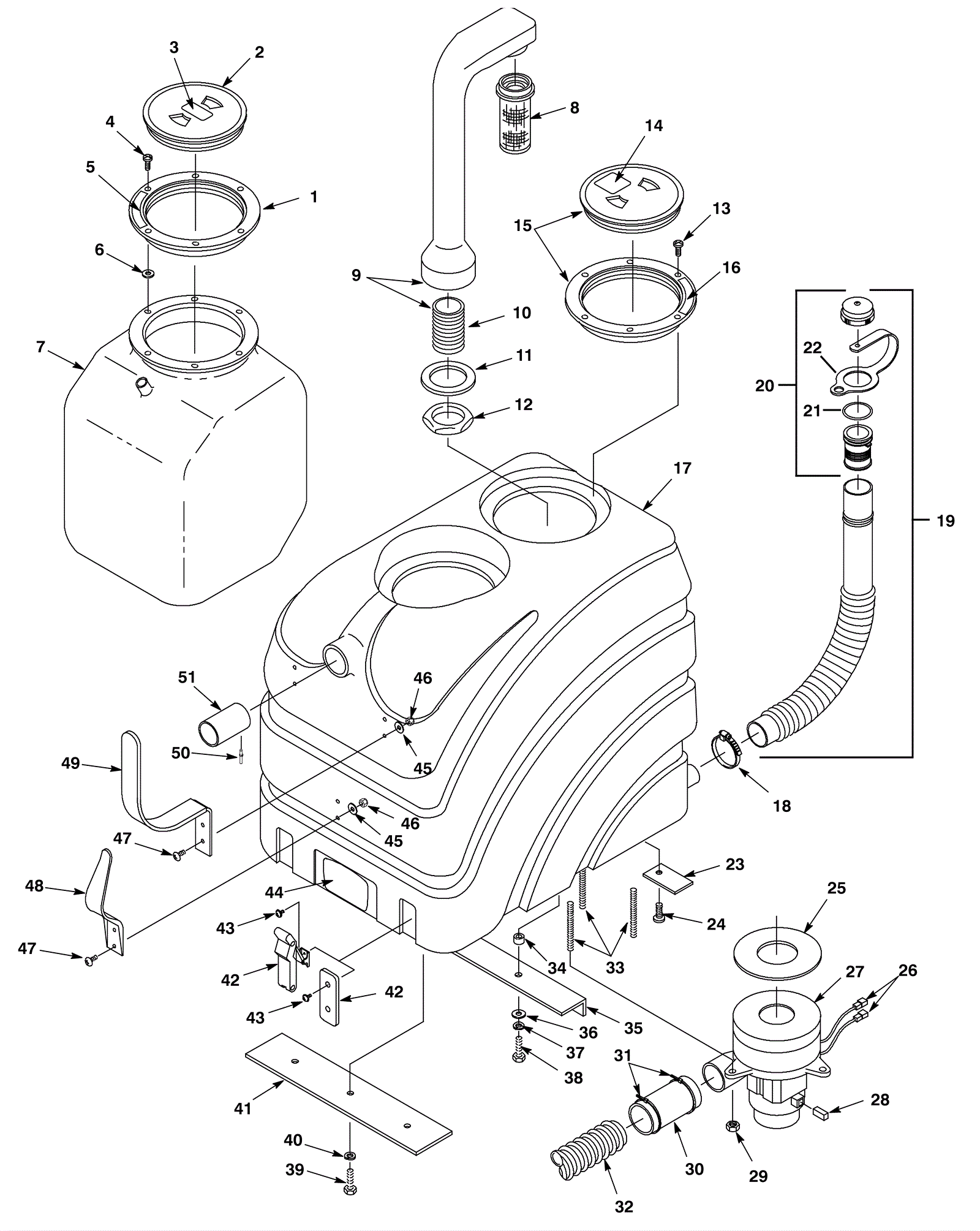

Upper Housing Assembly

#PartDescription ReqNotesAvailability
1 164-0205 Tank lid ring (clear) 1
2a 164-0044 Tank lid (clear) 1
2b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
3a 175-6107 Always drain decal 1
3b 275-2371 Warning decal 1
4 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 6
5 175-6101 Always close decal 1
6 999-0016 Washer 1/4 flat plain finish 6
7 175-1989 Bladder bag 1
8a 675-9887 Shut-off float 1
8b 991-5136 Shut-off float 1 (NON-OEM)
9 175-6047 Standpipe 1 (includes 10)
10 175-2639 1 1/2 inch nipple fitting 1
11 175-2640 Gasket 1
12 175-2907 Nut 1 1/2 flanged hex 1
13 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 6
14 175-1994 Safety glasses required decal 1
15 164-0202 Tank lid assembly 1
16 175-6101 Always close decal 1
17 275-6087 Recovery tank (gray) 1
18 997-2000 Hose clamp 1
19a 175-1535 Drain hose assembly 1 (includes 20-22)
19b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
20a 175-4214 Drain plug assembly 1 (includes 21 and 22)
20b 991-3028 Drain plug assembly 1
21 175-5804 O-ring 1
22 175-4214 Drain plug assembly 1
23 175-2008 Plate 1
24 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 1
25 175-6084 Vacuum motor gasket 1
26 175-0142 1/4 inch male terminal 2
27a 175-0197 120V 3 stage vacuum motor 1 (includes 28)
27b 991-1220 Plastic fan cover (for plastic covered brushes) 1
28 275-5835 Carbon brush (pkg of 2) 1
29 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
30 175-6535 Vacuum fan exhaust muffler 1
31 175-0037 Wire tie 2
32 175-1917 Hose 2 x 28 inch 1
33 175-1029 Stud 1/4 x 4 1/4 inch 3
34 175-2726 Sleeved bushing 2
35 175-2013 Tank support bracket 1
36 999-0016 Washer 1/4 flat plain finish 2
37 999-0632 Washer 1/4 split lock stainless steel 2
38 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
39 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 3
40 999-0632 Washer 1/4 split lock stainless steel 3
41 175-2014 Front tank brace 1
42a 175-3369 Hood latch 2
42c 991-8561 Rubber draw latch with keeper 2
42b 175-6536 Tank strap 2
43a 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 8
43b 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
44a 275-9770 Dual logo decal (Tennant Industrial) 1
44b 275-9771 TCO small decal 1
45 175-2009 WASHER, SEALING, 0.28B 0.75D SS, NEO 6
46 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
47 999-0375 Screw 1/4-20 x 1 round head slotted zinc plated 6
48 175-0314 Cord hook 1
49 175-2010 Hose hanger hook 2
50 175-2016 Pop rivet 3/16 x 1/4 inch 1
51 175-2017 Inlet tube 1
N/S 175-6045 Tank lid assembly 1 (includes 1 and 2)
