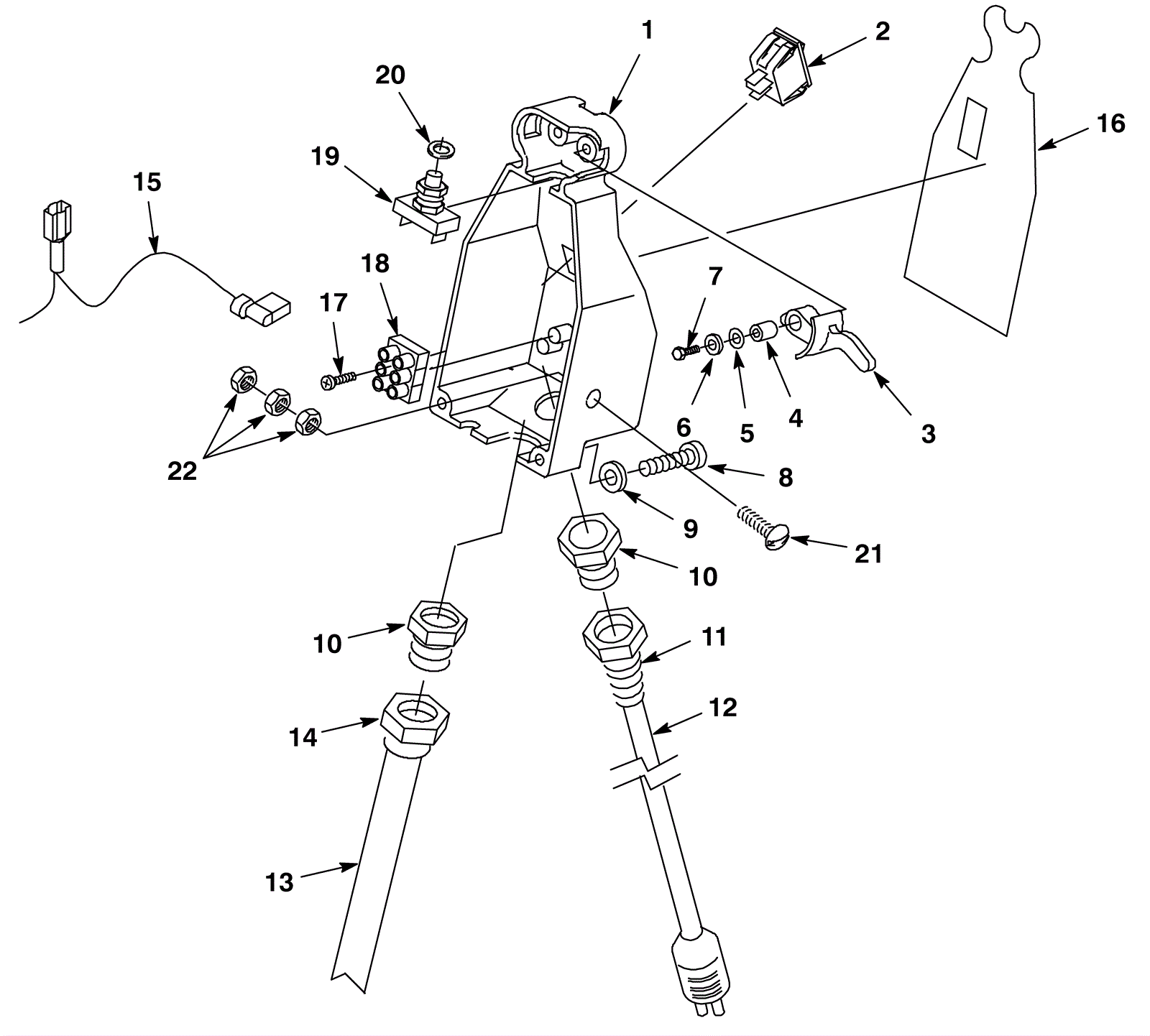

V-WA-30 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4459 Cover console $38.39 1 usually ships 5-16 days
2 175-0136 On/off rocker switch $11.11 1 ships same day
3 175-6383 Trigger arm (OBSOLETE) $7.37 2 usually ships 5-16 days
4 175-6384 Trigger spacer $3.63 2 usually ships 5-16 days
5 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
6 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
7 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
8 999-1085 Screw M5-.8 x 30mm pan head phillips zinc plated $0.99 3 ships same day
9 999-1026 Washer #10 internal lock stainless steel $0.99 3 ships same day
10 175-6158 Nut 1/2 conduit $3.96 2 usually ships 5-16 days
11 175-0340 Strain relief $10.12 1 ships same day
13 175-4462 Wire harness $48.07 1 usually ships 1-5 days
14 175-6124 Cord grip $10.12 1 usually ships 1-5 days
15 175-4466 Black assembly wire $12.43 1 usually ships 5-16 days
16 175-4467 Console cover decal $21.12 1 usually ships 5-16 days
17 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 2 ships same day
18 175-0027 25amp terminal strip $5.83 1 usually ships 5-16 days
19 175-6400 Push button switch kit $31.13 1 ships same day
20 175-6386 Washer 1/2 flat spring disc zinc plated $4.95 1 usually ships 5-16 days
21 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
22 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
