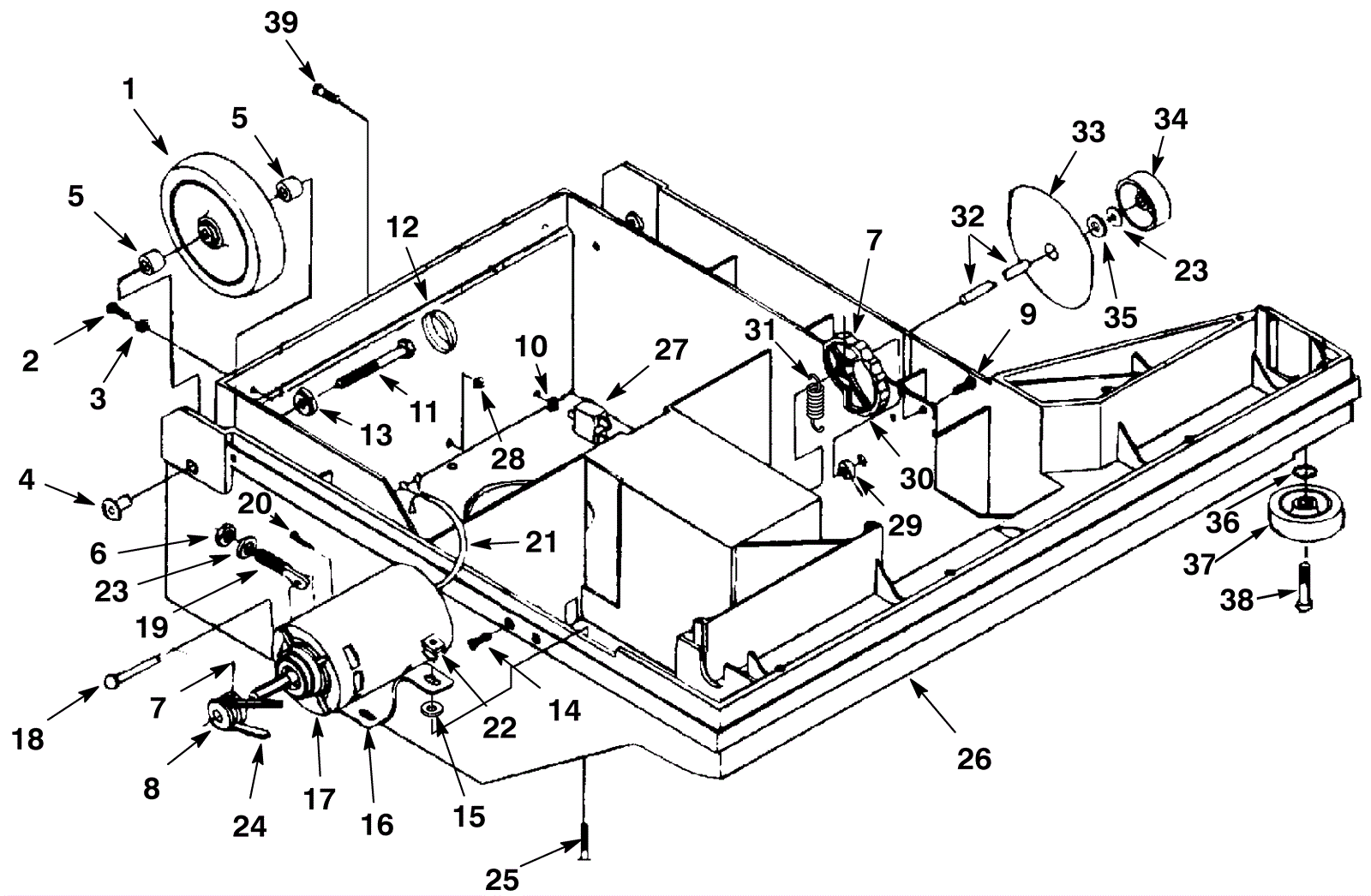

V-WA-30 Brush Base Assembly - 2

#PartDescriptionPriceReqNotesAvailability
1 175-4488 Rear wheel $86.79 2 usually ships 5-16 days
2 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
3 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
4 175-4489 Bushing $6.27 2 usually ships 5-16 days
5 175-4490 Wheel spacer 9.5mm $5.06 4 usually ships 1-5 days
6 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
7 275-8031 Screw 8-32 X 1/2 socket set $3.30 2 usually ships 5-16 days
8 175-4493 Motor pulley $34.10 1 usually ships 1-5 days
9 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
10 175-4494 Washer M10 $3.30 1 ships same day
11 175-4495 Screw 3/8-16 x 63.5mm $4.07 2 usually ships 1-5 days
12 175-1096 Wheel cap $3.30 2 usually ships 5-16 days
13 175-4496 Washer cap mount (OBSOLETE) $1.58 2 usually ships 1-5 days
14 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 2 ships same day
15 175-1097 Washer flat stainless steel $4.73 4 ships same day
16 175-4497 Brush motor assembly (OBSOLETE) $366.85 1 (includes 17-22) usually ships 1-5 days
17 275-5083 Carbon brushes $382.80 1 usually ships 1-5 days
18 175-4498 Clevis pin (OBSOLETE) $2.24 1 usually ships 1-5 days
19 175-4499 Belt tension stud (OBSOLETE) $19.25 1 usually ships 1-5 days
20 175-3272 Cotter pin $2.42 1 usually ships 5-16 days
21 175-4501 Base wire harness $33.44 1 usually ships 1-5 days
22 175-4502 Nut $3.19 4 usually ships 1-5 days
23 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
24 175-4480 V-belt $40.81 1 usually ships 5-16 days
25 175-4504 Screw 1/4-20 x 1 $1.54 4 usually ships 1-5 days
26 175-4503 Lower frame (charcoal) $1,808.07 1 usually ships 1-5 days
27 175-1408 7amp circuit breaker $48.07 1 usually ships 5-16 days
28 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 3 ships same day
29 175-4513 Collar shaft $7.81 1 usually ships 5-16 days
30 175-4514 Adjustment cam $50.82 1 usually ships 1-5 days
31 275-8032 Extension spring $9.90 1 usually ships 1-5 days
32 175-4512 Adjustment cam shaft $22.11 1 usually ships 1-5 days
33 175-4511 Brush adjustment decal $14.52 1 usually ships 1-5 days
34 175-4510 Brush adjustment knob $36.08 1 usually ships 1-5 days
35 175-1721 Washer 1/2 x 3/8 x 1/8 felt $4.84 1 usually ships 5-16 days
36 175-4479 O-ring $5.39 1 usually ships 5-16 days
37 175-0117 Guide wheel with bushing $9.68 1 ships same day
38 175-4516 Screw M8 x 40mm $4.29 1 usually ships 5-16 days
39 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
