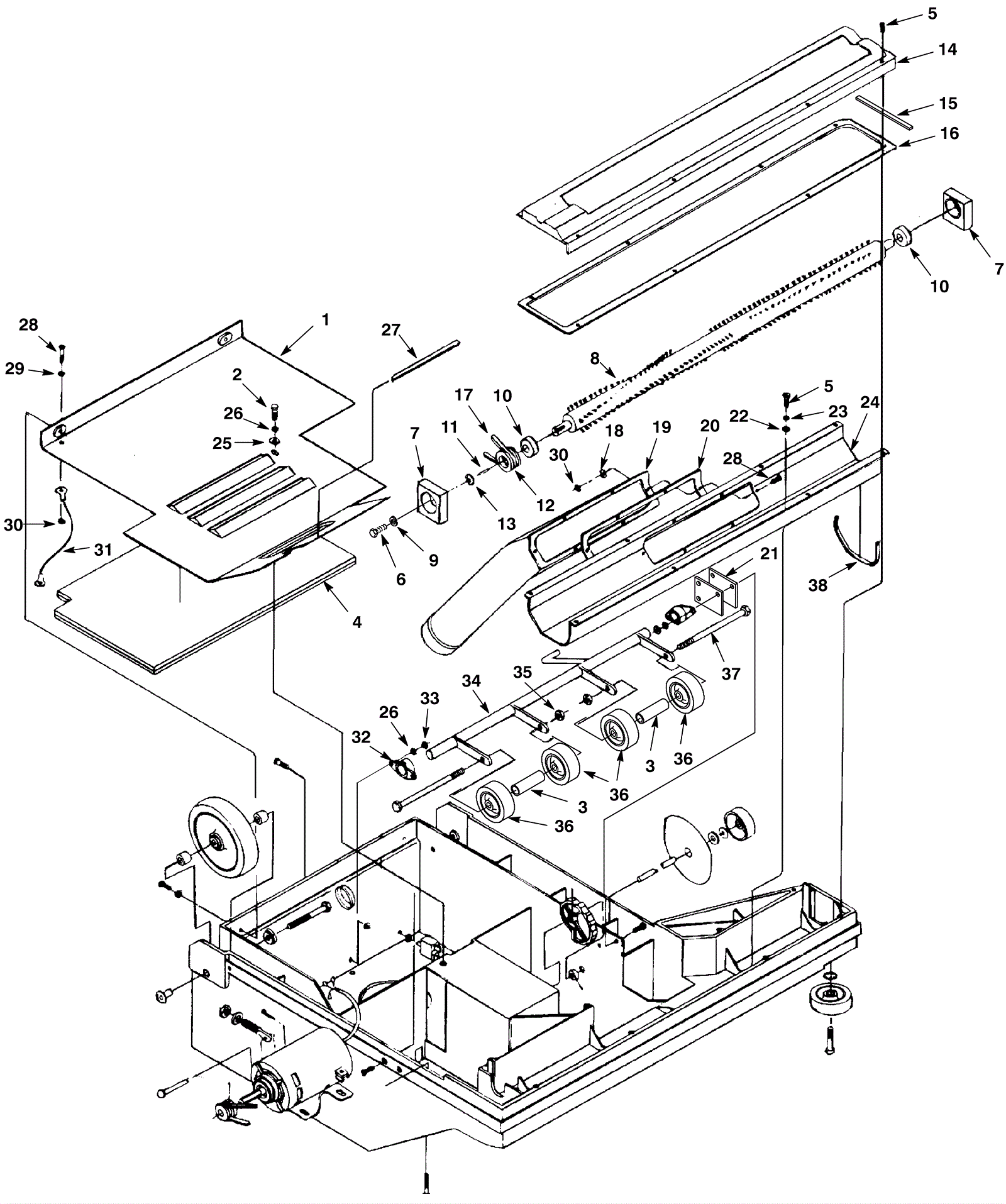

V-WA-30 Brush Base Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 175-4468 Bottom cover plate $112.86 1 usually ships 5-16 days
2 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 1 ships same day
3 275-8028 Spacer 19/50 X 31/50 X 2 3/4 $6.93 2 usually ships 1-5 days
4 175-4470 Sound foam (OBSOLETE) $12.98 1 usually ships 5-16 days
5 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 10 ships same day
6 175-5045 Bolt 1/4-20 UNC X 1/2 hex head $4.29 1 usually ships 1-5 days
7 175-4472 Bearing mount $32.78 2 ships same day
8 175-4010 30 inch brush assembly with pins $459.14 1 usually ships 5-16 days
9 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
10 175-0957 Brush bearing $12.98 2 usually ships 5-16 days
11 175-4476 Square keyway $3.96 1 usually ships 5-16 days
12 175-4477 Brush pulley $64.35 1 usually ships 5-16 days
13 999-1407 Washer 5/16 belleville $3.04 1 ships same day
14 175-4484 Skid $283.25 1 usually ships 5-16 days
15 275-8030 7 inch brush seal $18.81 2 usually ships 5-16 days
16 175-4486 Skid gasket (OBSOLETE) $29.15 1 usually ships 5-16 days
17 175-4480 V-belt $40.81 1 usually ships 5-16 days
18 999-1652 Washer M4.3 flat $1.93 6 ships same day
19 175-4481 Debris inlet $127.95 1 usually ships 1-5 days
20 175-4482 Debris inlet gasket $5.83 1 usually ships 5-16 days
21 275-8029 Reinforcing roller weldment bracket $8.25 2 usually ships 1-5 days
22 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
23 999-0051 Washer #6 medium split lock $0.99 2 ships same day
24 175-4483 Brush chamber $58.63 1 usually ships 5-16 days
25 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
26 999-0364 Washer #6 internal star lock zinc plated $0.99 6 ships same day
27 175-4521 Plastic bulk edging $4.62 1 usually ships 1-5 days
28 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 7 ships same day
29 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
30 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 7 ships same day
31 175-4519 Wire assembly (OBSOLETE) $1.32 1 usually ships 1-5 days
32 175-4505 Bearing $6.49 2 usually ships 1-5 days
33 999-0439 Nut M6-1 hex coarse thread $0.99 5 ships same day
34 175-4506 Roller weldment $178.64 1 usually ships 1-5 days
36 991-2013 Wheel $8.50 4 ships same day
37 175-4508 Screw 3/8-16 x 5.5 inch grade 5 hex head $4.29 2 usually ships 5-16 days
38 275-8030 7 inch brush seal $18.81 2 usually ships 5-16 days
N/S 175-4471 Brush assembly with left and right stubs $542.52 1 (includes 6-13) usually ships 5-16 days
