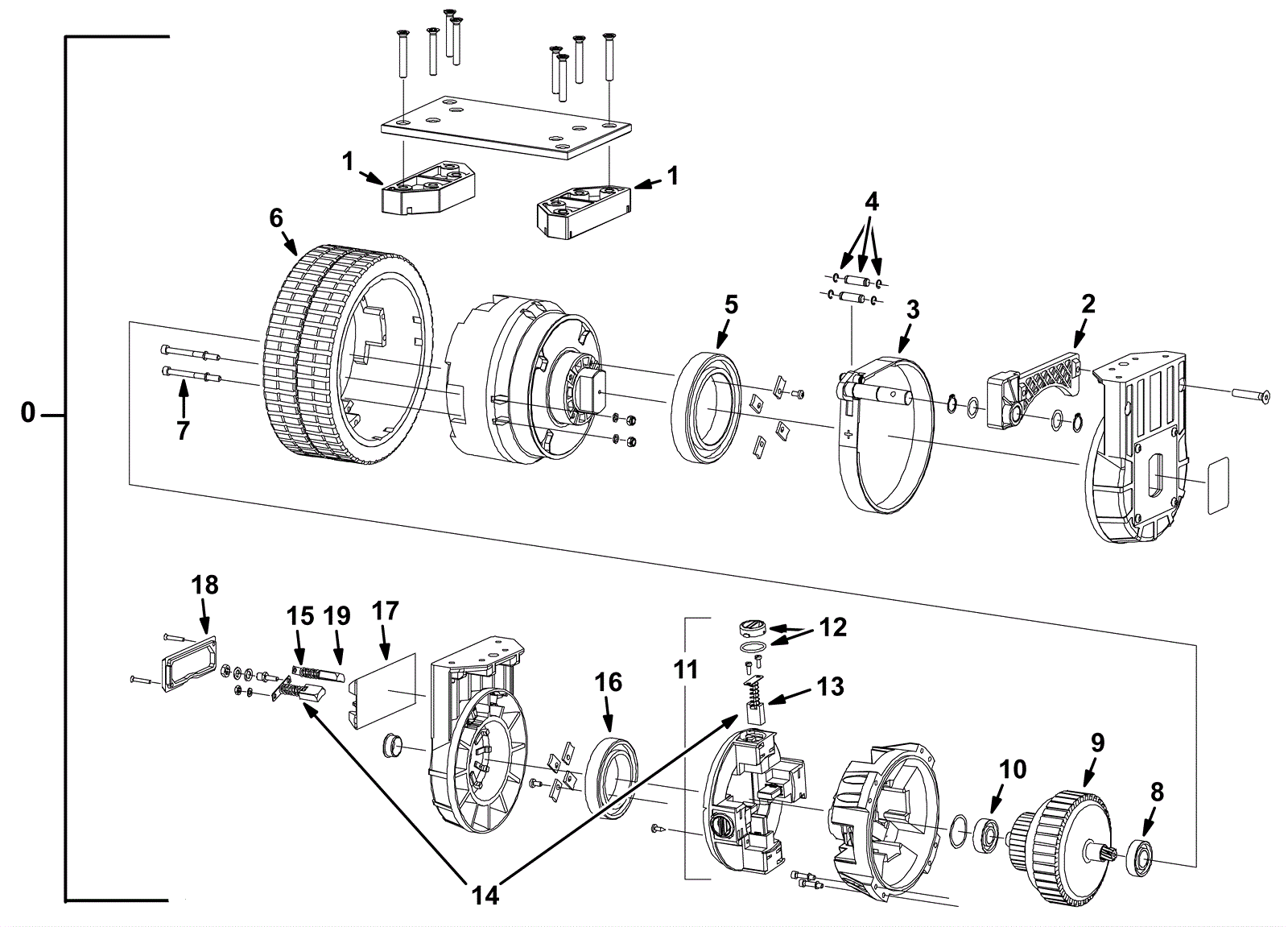

6100E Front Wheel Gearbox Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
0 175-4952 Break wheel gearbox $4,423.98 1 (includes 1-19) usually ships 5-16 days
1 375-0015 Spacer $56.65 2 usually ships 1-5 days
2 275-6097 Brake bracket assembly $179.08 1 usually ships 5-16 days
3 175-5380 Brake band $458.70 1 (includes 4) usually ships 5-16 days
4 275-6098 Pin kit with snap ring $24.31 1 usually ships 1-5 days
5 275-8270 Steering bearing $295.46 1 usually ships 5-16 days
6 275-8259 Solid tire (red) $749.32 1 usually ships 5-16 days
7 275-4977 Wheel mounting screw $7.26 8 ships same day
8 175-5375 Gearbox side bearing $80.19 1 usually ships 5-16 days
9 375-0016 Motor Armature $640.64 1 usually ships 1-5 days
10 175-5376 Motor side bearing $70.62 1 usually ships 5-16 days
11 275-4976 Carbon brush holder ring $1,077.56 1 (includes 12-13b) usually ships 5-16 days
12 175-5373 Carbon brush cover $50.05 4 ships same day
13a 275-4972 Carbon brush kit (pkg of 4) $337.48 1 (4 pieces) ships same day
13b 275-4973 Carbon brush (sold individually) $86.24 4 (1 piece) usually ships 5-16 days
13c 275-4972 Carbon brush kit (pkg of 4) $337.48 1 (4 pieces) ships same day
13d 275-4973 Carbon brush (sold individually) $86.24 4 (1 piece) usually ships 5-16 days
14 175-5371 Carbon and motor brush kit $544.17 1 (includes 13c-15b) ships same day
15a 275-4974 Motor brush kit (pkg of 2) $123.97 1 (2 pieces) ships same day
15b 275-8262 Motor brush (sold individually) $58.19 2 (1 piece) usually ships 5-16 days
16 275-4975 Bearing $109.56 1 usually ships 5-16 days
17 275-8260 Connection box $125.40 1 usually ships 5-16 days
18 275-8261 Connection cover $21.56 1 usually ships 5-16 days
19 275-8269 Brush holder guide $15.40 1 usually ships 5-16 days
