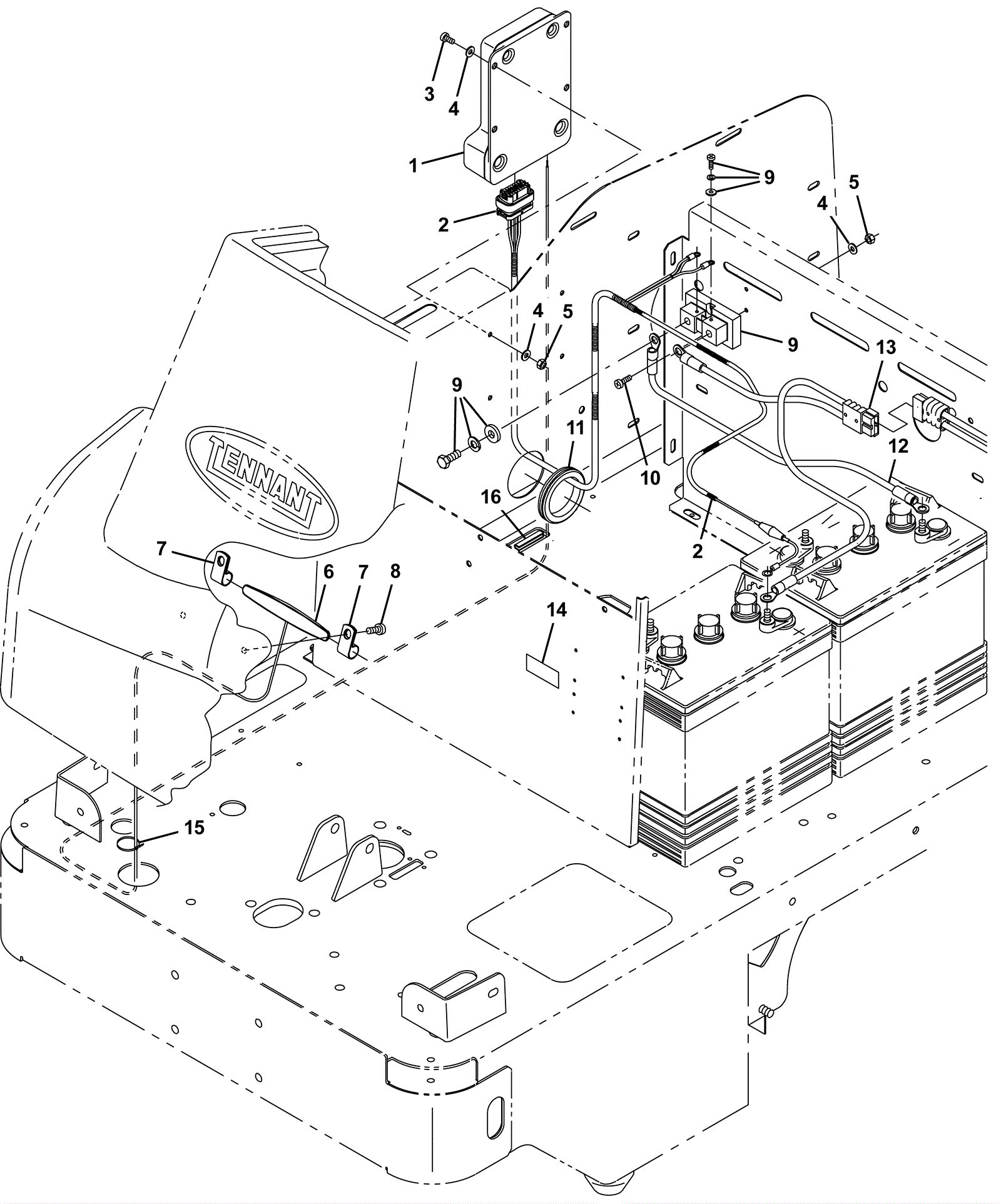

6100E Telemetry Assembly - After SN 005104

#PartDescriptionPriceReqNotesAvailability
1 275-2615 Telemetry control box assembly kit $2,167.85 1 usually ships 1-5 days
2a 375-0007 Electric harness $72.05 1 (includes 2b) usually ships 1-5 days
2b 275-7904 Fuse (Tennant Industrial) $1.84 1 usually ships 1-5 days
3 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 4 ships same day
4 999-0998 Washer #10 flat stainless steel $0.99 10 ships same day
5 175-2894 Nut M5-.8 hex nylon locking $2.42 6 usually ships 5-16 days
6 375-0008 Telemetry antenna $45.21 1 usually ships 1-5 days
7 175-0988 P clamp $3.08 2 usually ships 5-16 days
8 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 2 usually ships 1-5 days
9 275-7898 250amp shunt $96.80 1 usually ships 1-5 days
10 175-2895 Screw M5-0.8 x 20mm pan head $3.30 2 usually ships 5-16 days
11 275-9295 Rubber grommet $4.68 1 usually ships 1-5 days
12 375-0009 Cable (black) $25.63 1 usually ships 1-5 days
13 375-0010 Cable assembly $40.26 1 usually ships 1-5 days
14 275-7899 Telemetry decal $4.29 1 usually ships 1-5 days
15 175-2162 Nylon wire tie $2.42 3 usually ships 5-16 days
16 275-8203 Molding $44.22 1 usually ships 1-5 days
