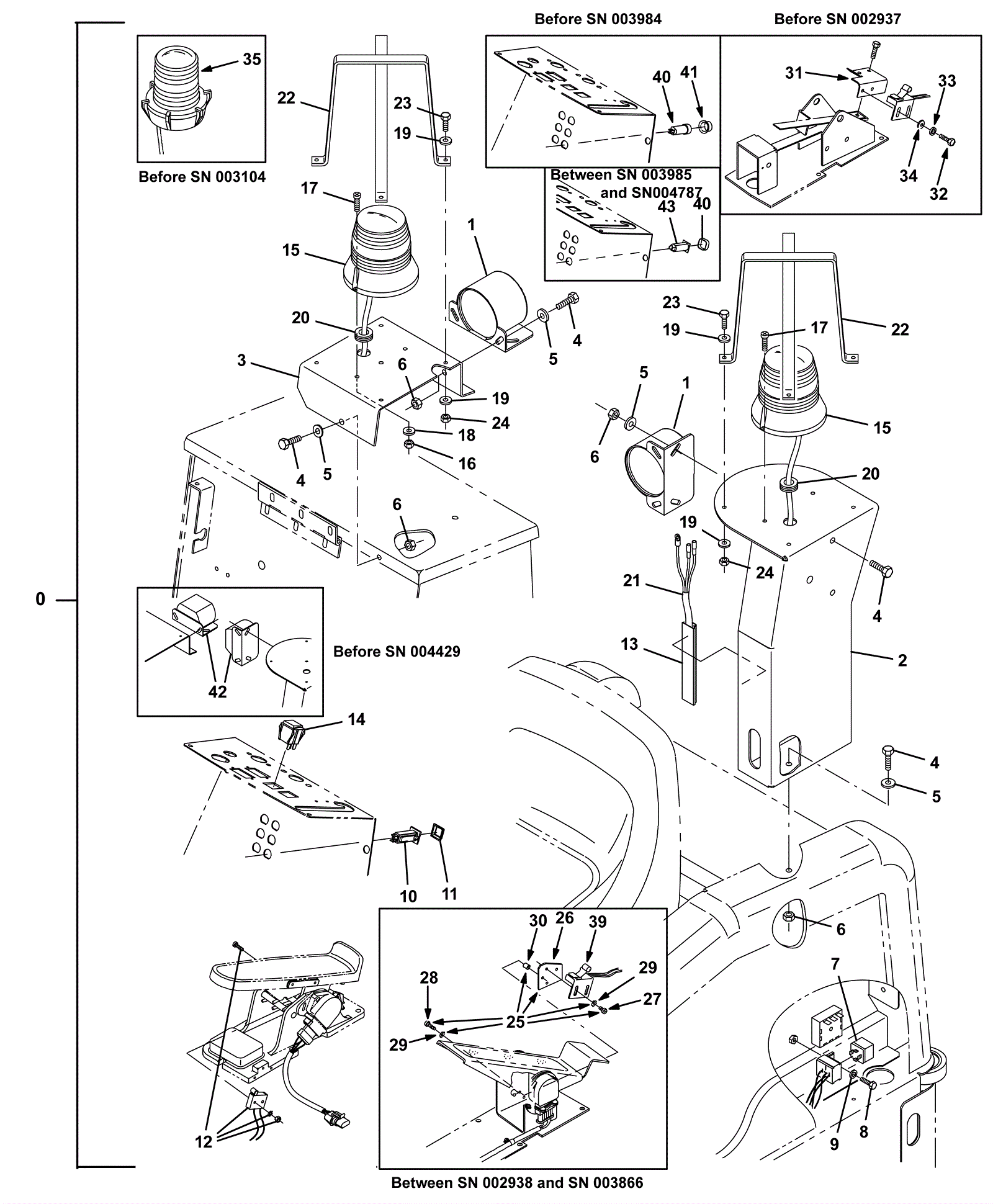

6100E Backup Alarm and Flashing Light Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-6995 Back up alarm kit $1,078.44 1 (includes 1-24) usually ships 1-5 days
1 275-2542 Backup alarm assembly $162.14 1 (after SN 004480) usually ships 10-16 days
2 275-6985 Pedestal $137.06 1 usually ships 1-5 days
3 275-6986 Bracket $44.11 1 usually ships 1-5 days
4 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
6 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
7 175-2265 36V 5amp relay $16.50 1 usually ships 10-16 days
8 175-0852 Bolt 5mm-.8 x 12 hex head $4.88 1 usually ships 10-16 days
9 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
10 175-5969 15amp circuit breaker (Tennant Industrial) $7.67 1 (after SN 004788) ships same day
11 275-2596 Circuit breaker boot (Tennant Industrial) $19.34 1 (after SN 004788) ships same day
12 275-6990 Back up alarm switch kit $92.73 1 (after SN 003867) usually ships 1-5 days
13 175-3261 PVC duct $24.20 1 usually ships 10-16 days
14 175-0569 Rocker switch $50.49 1 usually ships 1-5 days
15a 275-7765 Strobe light $496.54 1 (includes 16-18) usually ships 1-5 days
15b 275-4675 Lens $34.76 1 (after SN 003105) usually ships 1-5 days
15c 275-4678 Bulb $45.10 1 (after SN 003105) usually ships 10-16 days
15d 175-5964 Plug $4.09 2 (after SN 003105) usually ships 1-5 days
15e 275-7186 Lens (red) (Tennant Industrial) $60.35 1 (after SN 003105) usually ships 1-5 days
15f 275-7187 Lens (blue) (Tennant Industrial) $73.01 1 (after SN 003105) usually ships 1-5 days
16 175-2894 Nut M5-.8 hex nylon locking $3.04 2 (after SN 003105) usually ships 10-16 days
17 175-2895 Screw M5-0.8 x 20mm pan head $4.09 2 (after SN 003105) usually ships 10-16 days
18 999-0006 Washer 3/16 flat zinc plated $0.99 2 (after SN 003105) ships same day
19 999-0006 Washer 3/16 flat zinc plated $0.99 8 ships same day
20 175-5419 Grommet 5/8 $3.04 1 usually ships 1-5 days
21 275-6987 Warning/backup wire harness $29.26 1 usually ships 1-5 days
22 275-6988 Light guard weldment (TENNANT INDUSTRIAL) $87.18 1 usually ships 1-5 days
23 275-0923 Screw M5 - 7/8 hex lock $4.09 4 usually ships 1-5 days
24 175-2894 Nut M5-.8 hex nylon locking $3.04 4 usually ships 10-16 days
25 275-6991 Back up alarm bracket kit $75.90 1 (includes 26-30) (between SN 002938-003866) usually ships 1-5 days
26 275-6992 Switch adapter bracket $177.87 1 (between SN 002938-003866) usually ships 1-5 days
27 175-0598 Screw 5mm-.8 x 6 pan head $3.83 2 (between SN 002938-003866) usually ships 1-5 days
28 175-2895 Screw M5-0.8 x 20mm pan head $4.09 2 (between SN 002938-003866) usually ships 10-16 days
29 999-1026 Washer #10 internal lock stainless steel $0.99 4 (between SN 002938-003866) ships same day
30 375-3820 Plastic spacer $3.83 2 (Spacer) (between SN 002938-003866) usually ships 10-16 days
31 275-0608 Roller switch mounting angle bracket $40.70 1 (before SN 002937) usually ships 1-5 days
32 175-0852 Bolt 5mm-.8 x 12 hex head $4.88 2 (before SN 002937) usually ships 10-16 days
33 999-0089 Washer #10 internal star lock zinc plated $0.99 2 (before SN 002937) ships same day
34 999-0006 Washer 3/16 flat zinc plated $0.99 2 (before SN 002937) ships same day
35a 175-5417 Lamp $28.49 1 (before SN 003104) usually ships 1-5 days
35b 175-5427 Flashing light amber lens $53.46 1 (before SN 003104) usually ships 1-5 days
35c 175-5428 Flashing light red lens $78.76 1 (before SN 003104) usually ships 1-5 days
35d 175-5429 Flashing light blue lens $72.60 1 (before SN 003104) usually ships 1-5 days
39 275-0140 Roller snap switch 15A no $134.31 1 (before SN 003866) usually ships 10-16 days
40 175-5969 15amp circuit breaker (Tennant Industrial) $7.67 1 (before SN 003984) ships same day
41 275-2596 Circuit breaker boot (Tennant Industrial) $19.34 1 (before SN 003984) ships same day
43 175-5969 15amp circuit breaker (Tennant Industrial) $7.67 1 (between SN 003985-004787) ships same day
44 275-2596 Circuit breaker boot (Tennant Industrial) $19.34 1 (between SN 003985-004787) ships same day
