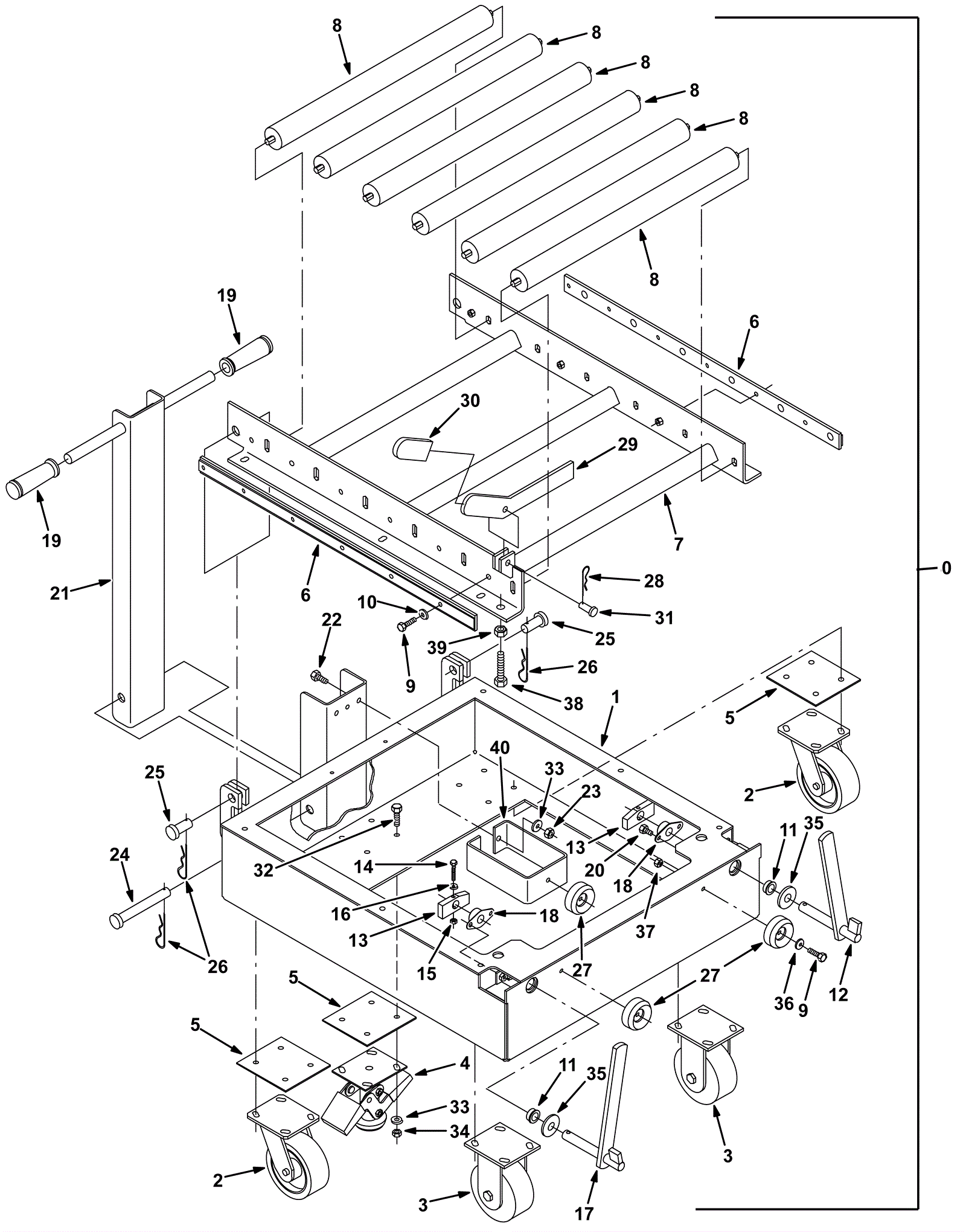

6100E Rollout Battery Cart Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-0012 CI rollout battery cart kit $4,765.53 1 (includes 1-40) usually ships 1-5 days
1 275-0013 Battery cart frame $1,139.71 1 usually ships 1-5 days
2a 175-2100 5 inch caster wheel assembly (gray) $108.13 2 ships same day
2b 991-2011 Caster wheel assembly $103.56 2 (NON-OEM) ships same day
3 275-7218 5 inch rigid caster $135.74 2 usually ships 1-5 days
4 275-0015 Floor lock $256.52 1 usually ships 1-5 days
5 275-0016 Spacer plate $14.30 3 usually ships 5-16 days
6 275-0017 Roller shaft retainer $54.78 2 usually ships 1-5 days
7 275-0018 Roller mounting frame weldment $576.84 1 usually ships 1-5 days
8 275-0019 Steel roller assembly $42.68 6 usually ships 1-5 days
9 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 12 ships same day
10 999-9097 Washer M8 flat stainless steel $0.99 12 ships same day
11 275-0020 Nylon grommet $1.21 2 usually ships 1-5 days
12 275-0021 Left hand lock weldment $70.62 1 usually ships 1-5 days
13 275-0022 Battery cart lock stop block $73.70 2 usually ships 1-5 days
14 999-0780 Screw M6-1 x 40mm hex head $0.99 2 ships same day
15 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 275-0023 Right hand lock weldment $70.62 1 usually ships 1-5 days
18 175-3201 Flanged bearing $5.83 2 usually ships 5-16 days
19a 175-2703 Handle grip $4.07 2 ships same day
19b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
20 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
21 275-0024 Battery cart handle weldment $142.01 1 usually ships 1-5 days
22 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.19 2 usually ships 5-16 days
23 275-0026 Nut M10-1.25 hex standard $3.30 2 usually ships 1-5 days
24 175-9742 Clevis pin $14.08 1 usually ships 1-5 days
25 275-0027 Clevis pin $9.79 2 usually ships 1-5 days
26 275-0028 Cotter hair pin $2.42 3 usually ships 1-5 days
27 275-0029 Rubber bumper $7.81 3 usually ships 1-5 days
28 175-5402 Cotter hair pin $7.92 1 usually ships 1-5 days
29 275-0030 Battery stop flat arm $18.59 1 usually ships 1-5 days
30 275-0031 Handle grip $21.01 1 usually ships 1-5 days
31 275-0032 Clevis pin $3.96 1 usually ships 1-5 days
32 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $3.96 20 usually ships 1-5 days
33 999-0032 Washer 3/8 USS flat plain finish $2.42 22 ships same day
34 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 20 usually ships 1-5 days
35 999-0630 Washer 3/4 SAE flat $0.99 2 ships same day
36 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
37 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
38 275-0034 Screw M12-1.75 x 50 hex head fl $6.49 2 usually ships 1-5 days
39 275-0035 Nut M12-1.75 hex standard $3.19 2 usually ships 5-16 days
40 275-0036 Battery case stop bracket $44.33 1 usually ships 1-5 days
