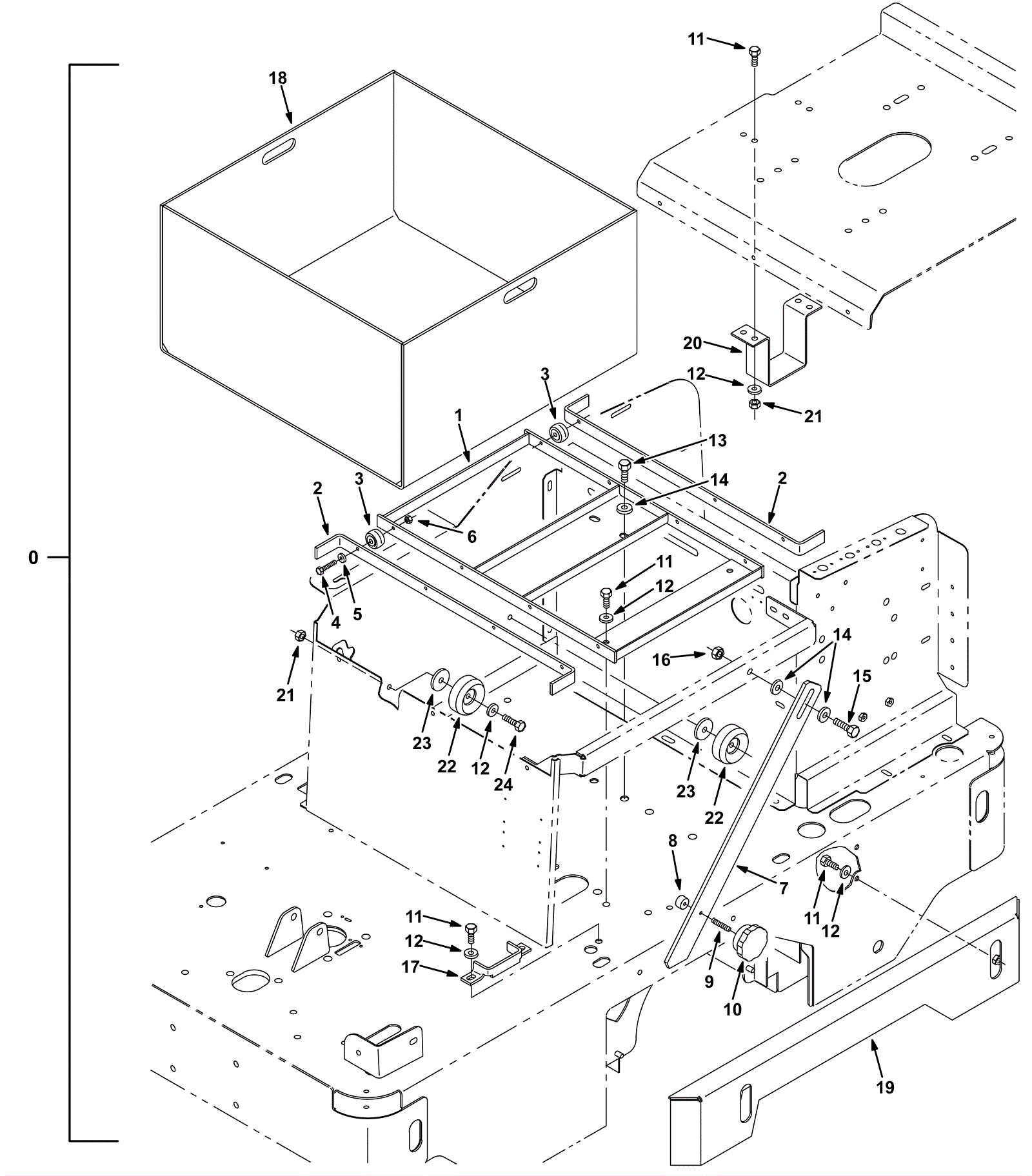

Rollout Battery Case Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-6971 Rollout battery kit $1,739.43 1 (includes 1-24) usually ships 1-5 days
1 275-6972 Battery roller bracket $174.35 1 usually ships 1-5 days
2 275-6973 Channel $67.98 2 usually ships 1-5 days
3 275-0003 Bearing $39.49 8 usually ships 1-5 days
4 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
7 275-6974 Battery case brace $112.42 1 usually ships 1-5 days
8 275-6975 Bumper $12.87 1 usually ships 1-5 days
9 275-6976 Threaded rod $12.98 1 usually ships 1-5 days
10 275-6977 Knob $30.47 1 usually ships 1-5 days
11 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 14 ships same day
12 999-0024 Washer 5/16 flat stainless steel $1.34 14 ships same day
13 175-6774 Screw M10-1 1/2 x 20 hex $3.30 2 usually ships 1-5 days
14 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
15 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 1 usually ships 1-5 days
16 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
17 275-6978 Support bracket brace $71.61 1 usually ships 1-5 days
18 275-6979 Battery housing bucket $724.68 1 usually ships 1-5 days
19 275-6980 Bumper channel weldment $309.65 1 usually ships 1-5 days
20 275-6981 Battery case stop bracket $105.38 1 usually ships 1-5 days
21 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
22 275-0029 Rubber bumper $7.81 2 usually ships 1-5 days
23 275-6982 Washer $3.96 2 usually ships 1-5 days
24 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
