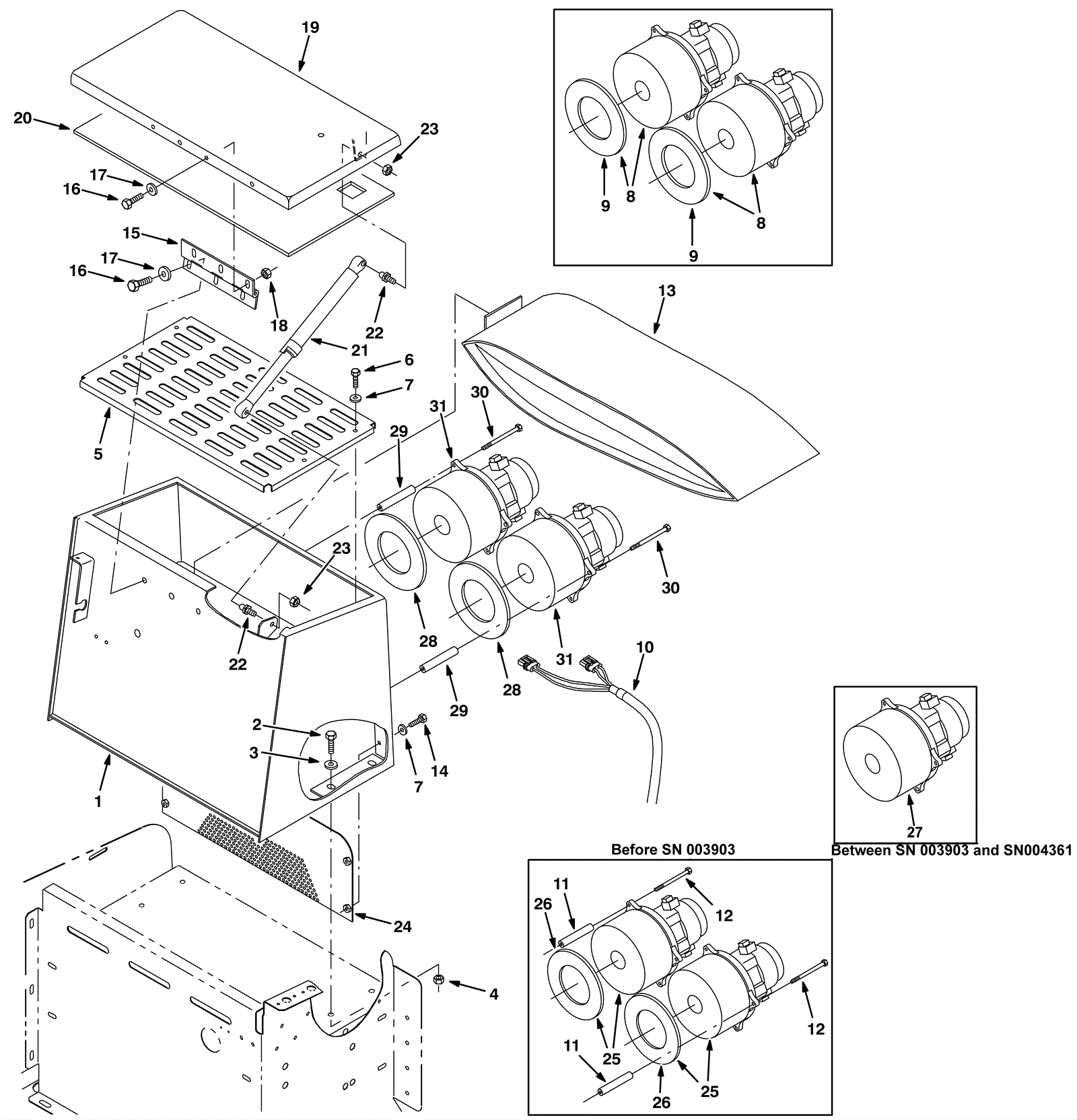

6100E Dual Vacuum Motor Wand Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6959 Vacuum wand box assembly $634.80 1 usually ships 1-5 days
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 $2.90 4 usually ships 6-16 days
3 999-0032 Washer 3/8 USS flat plain finish $0.99 4 ships same day
4 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
5 275-6960 Vacuum box panel $61.00 1 usually ships 1-5 days
6 175-6758 Screw M6-1 x 30mm hex head $2.90 4 usually ships 6-16 days
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
8 275-5200 36V 3 stage vacuum motor kit $328.40 2 (includes 9) usually ships 30-32 days
9 164-0881 Vacuum motor gasket $13.42 1 ships same day
10 275-6967 Vacuum wand harness $103.80 1 usually ships 1-5 days
11 N/A Not available Call for price 6 (steel tube) usually ships 30-32 days
12 275-2133 Bolt M6 x 1 hex, SS $4.00 6 usually ships 1-5 days
13 275-5809 Vacuum bags (pkg of 10) $20.13 1 usually ships 6-16 days
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
15 275-6962 Hinge $78.90 1 usually ships 1-5 days
16 175-5113 Bolt M6 x 12mm hex head $2.20 6 usually ships 1-5 days
17 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
18 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 3 ships same day
19 275-6963 Vacuum box weldment $160.00 1 usually ships 1-5 days
20 275-6964 Gasket $16.90 1 usually ships 6-16 days
21 275-6965 Gas spring $88.10 1 usually ships 6-16 days
22 175-0761 Gas spring ball stud $7.20 2 usually ships 1-5 days
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
24 275-6966 Vacuum box screen $73.30 1 usually ships 1-5 days
25 275-5200 36V 3 stage vacuum motor kit $328.40 2 (includes 26) (before SN 0039003) usually ships 30-32 days
26 164-0881 Vacuum motor gasket $13.42 1 ships same day
27a 275-6969 36V 3 stage vacuum motor $256.50 1 (includes 27b and 27c) (OEM) (between SN 003903 and SN 004361) usually ships 6-16 days
27b 275-5816 Carbon brush kit (pkg of 2) $27.50 2 (between SN 003903 and SN 004361) ships same day
27c 175-6954 Cooling fan cover $16.90 1 (between SN 003903 and SN 004361) usually ships 6-16 days
28 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) $9.52 2 usually ships 6-16 days
29 275-5606 Tube $17.80 6 usually ships 1-5 days
30 275-5607 Screw M6-1 x 110mm hex stainless steel $2.80 6 usually ships 1-5 days
31a 275-6969 36V 3 stage vacuum motor $256.50 2 (after SN 004362) (OEM) usually ships 6-16 days
31b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug $107.86 2 (NON OEM) usually ships 30-32 days
27d 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug $107.86 2 (NON OEM) usually ships 30-32 days
