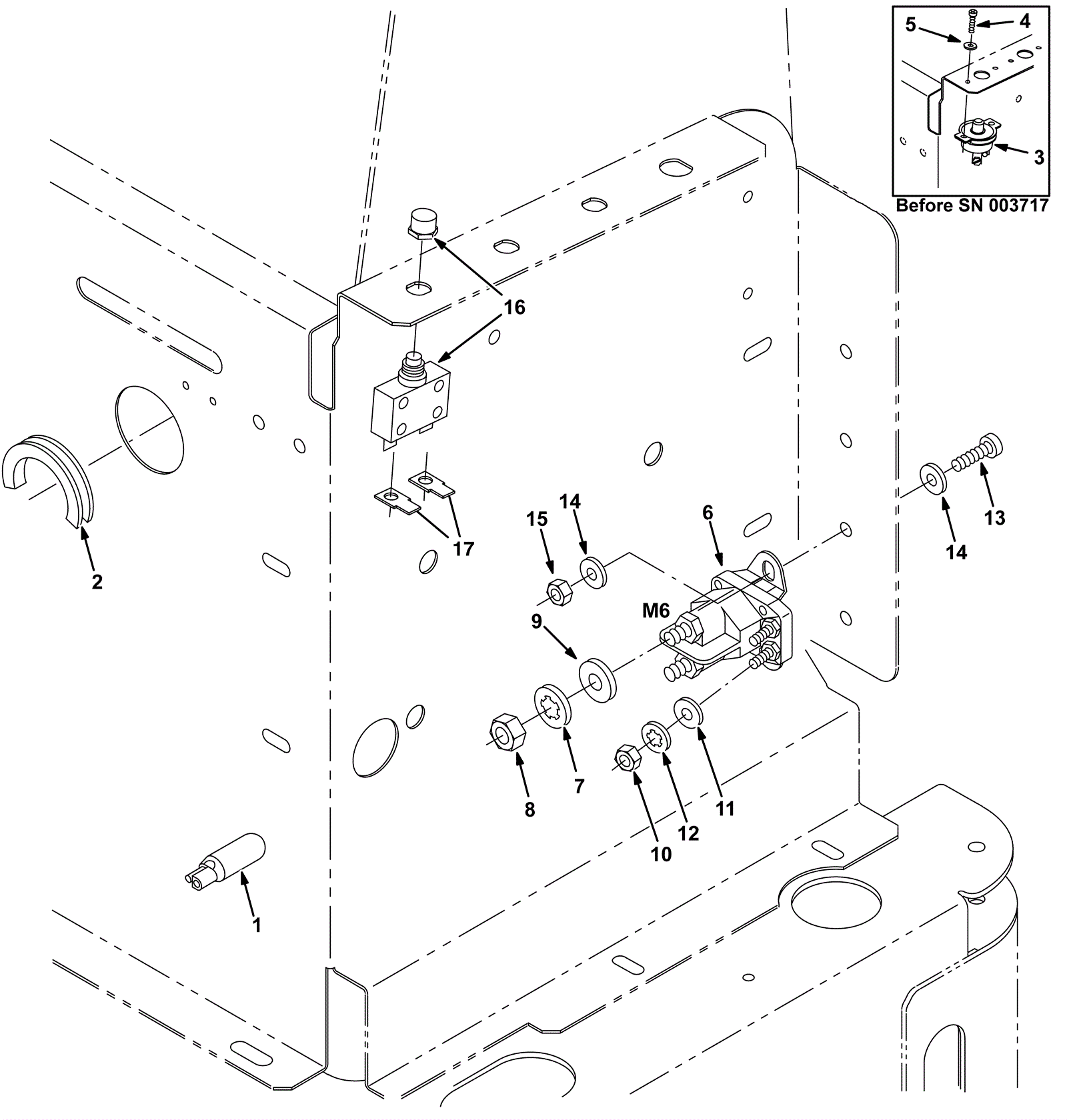

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-2216
|
Diode plug |
$12.87
|
1 |
|
ships same day |
2 |
275-6968
|
Grommet |
$9.35
|
1 |
|
usually ships 1-5 days |
3 |
175-2544
|
20amp circuit breaker |
$47.63
|
1 |
(before SN 003717) |
usually ships 5-16 days |
4 |
275-4655
|
Screw #8-32 x 0.88, G1 Pan |
$2.31
|
2 |
(before SN 003717) |
usually ships 1-5 days |
5 |
999-0412
|
Washer #8 SAE flat |
$0.99
|
2 |
(before SN 003717) |
ships same day |
6 |
175-2373
|
36V contactor |
$35.42
|
1 |
|
ships same day |
7 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
$0.99
|
2 |
|
ships same day |
8 |
999-0763
|
Nut 5/16-24 hex jam plain finish |
$0.99
|
2 |
|
ships same day |
9 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
10 |
999-0460
|
Nut 10-32 hex |
$0.99
|
2 |
|
ships same day |
11 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
2 |
|
ships same day |
12 |
999-0089
|
Washer #10 internal star lock zinc plated |
$0.99
|
2 |
|
ships same day |
13 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
14 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
2 |
|
ships same day |
15 |
175-2894
|
Nut M5-.8 hex nylon locking |
$2.42
|
1 |
|
usually ships 5-16 days |
16a |
175-2337
|
20amp circuit breaker |
$15.18
|
1 |
(between SN 003718-003902) |
ships same day |
16b |
991-1631
|
25amp circuit breaker |
$13.80
|
1 |
(after SN 383724) |
ships same day |
17 |
275-1863
|
TERMINAL, TAB, .25 .19H .84L (Tennant Industrial) |
$6.01
|
2 |
(Dual motor only) |
usually ships 5-16 days |
