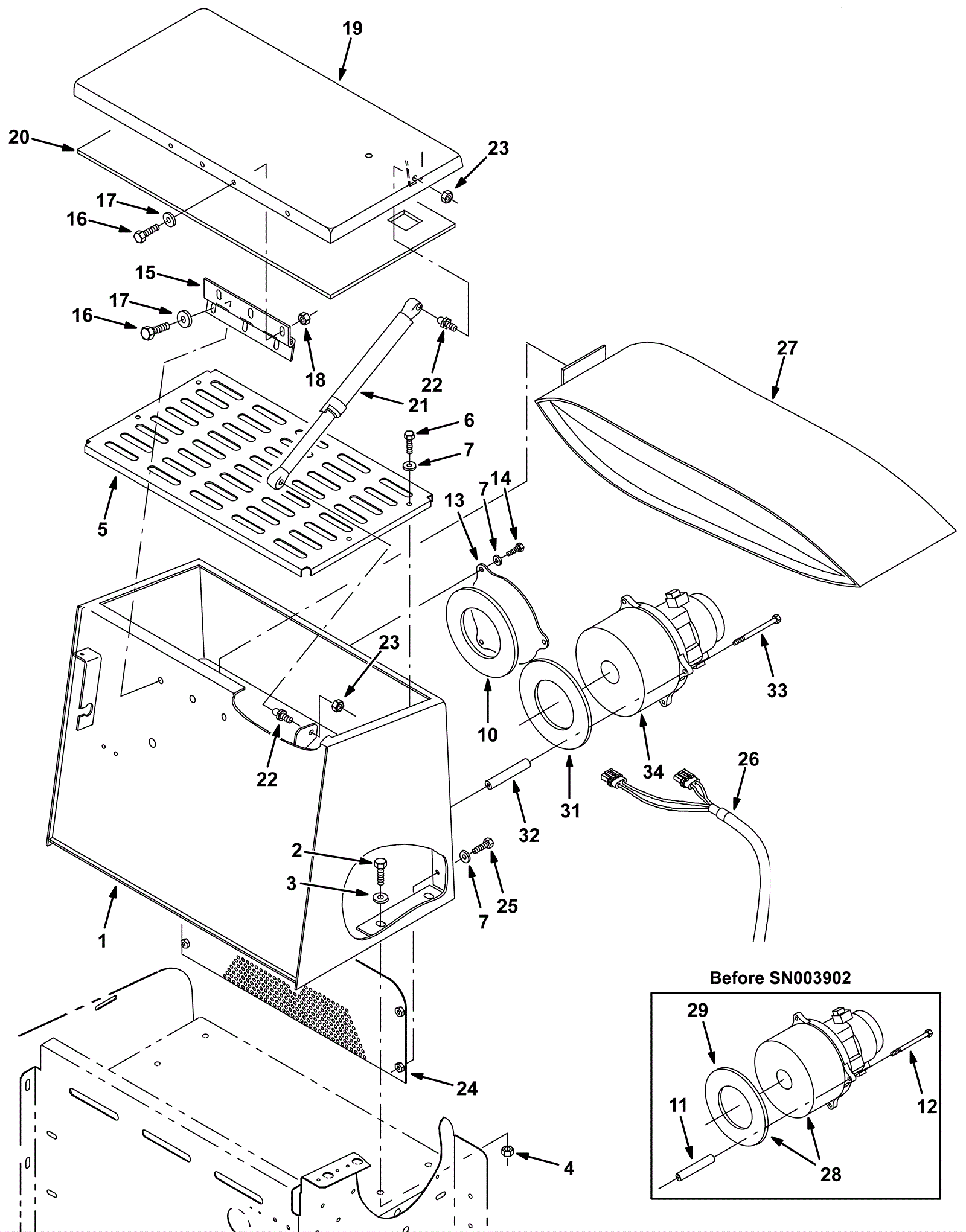

6100E Single Vacuum Motor Wand Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6959 Vacuum wand box assembly $698.28 1 usually ships 1-5 days
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.19 4 usually ships 5-16 days
3 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
4 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
5 275-6960 Vacuum box panel $67.10 1 usually ships 1-5 days
6 175-6758 Screw M6-1 x 30mm hex head $3.19 4 usually ships 5-16 days
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 11 ships same day
10a 164-0881 Vacuum motor gasket $13.42 1 (before SN 003902) ships same day
10b 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) $9.52 1 (after SN 003903) usually ships 5-16 days
10c 991-3029 Vacuum motor gasket $2.36 1 (NON-OEM) ships same day
11 N/A Not available Call for price 3 (before SN 003902) (steel tube) usually ships 3-26 days
12 275-2133 Bolt M6 x 1 hex, SS $4.40 3 (before SN 003902) usually ships 1-5 days
13 275-6961 Cover plate $12.32 1 usually ships 1-5 days
14 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 3 ships same day
15 275-6962 Hinge $86.79 1 usually ships 1-5 days
16 175-5113 Bolt M6 x 12mm hex head $2.42 6 usually ships 1-5 days
17 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
18 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 3 ships same day
19 275-6963 Vacuum box weldment $176.00 1 usually ships 1-5 days
20 275-6964 Gasket $18.59 1 usually ships 5-16 days
21 275-6965 Gas spring $96.91 1 usually ships 5-16 days
22 175-0761 Gas spring ball stud $7.92 2 usually ships 5-16 days
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
24 275-6966 Vacuum box screen $80.63 1 usually ships 1-5 days
25 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
26 275-6967 Vacuum wand harness $114.18 1 usually ships 1-5 days
27 275-5809 Vacuum bags (pkg of 10) $20.13 1 usually ships 5-16 days
28a 275-5200 36V 3 stage vacuum motor kit $361.24 1 (includes 29) (before SN 003902) usually ships 3-26 days
28b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug $107.86 1 (NON OEM) (before SN 003902) ships same day
29a 164-0881 Vacuum motor gasket $13.42 1 (before SN 003902) ships same day
29b 991-3029 Vacuum motor gasket $2.36 1 (NON-OEM) ships same day
31 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) $9.52 1 (after SN 003903) usually ships 5-16 days
32 275-5606 Tube $19.58 3 (after SN 003903) usually ships 1-5 days
33 275-5607 Screw M6-1 x 110mm hex stainless steel $3.08 6 (after SN 003903) usually ships 1-5 days
34a 275-6969 36V 3 stage vacuum motor $282.15 1 (OEM)(after SN 003903) usually ships 5-16 days
34b 275-5816 Carbon brush kit (pkg of 2) $30.25 1 usually ships 5-16 days
34c 175-6954 Cooling fan cover $18.59 1 usually ships 5-16 days
