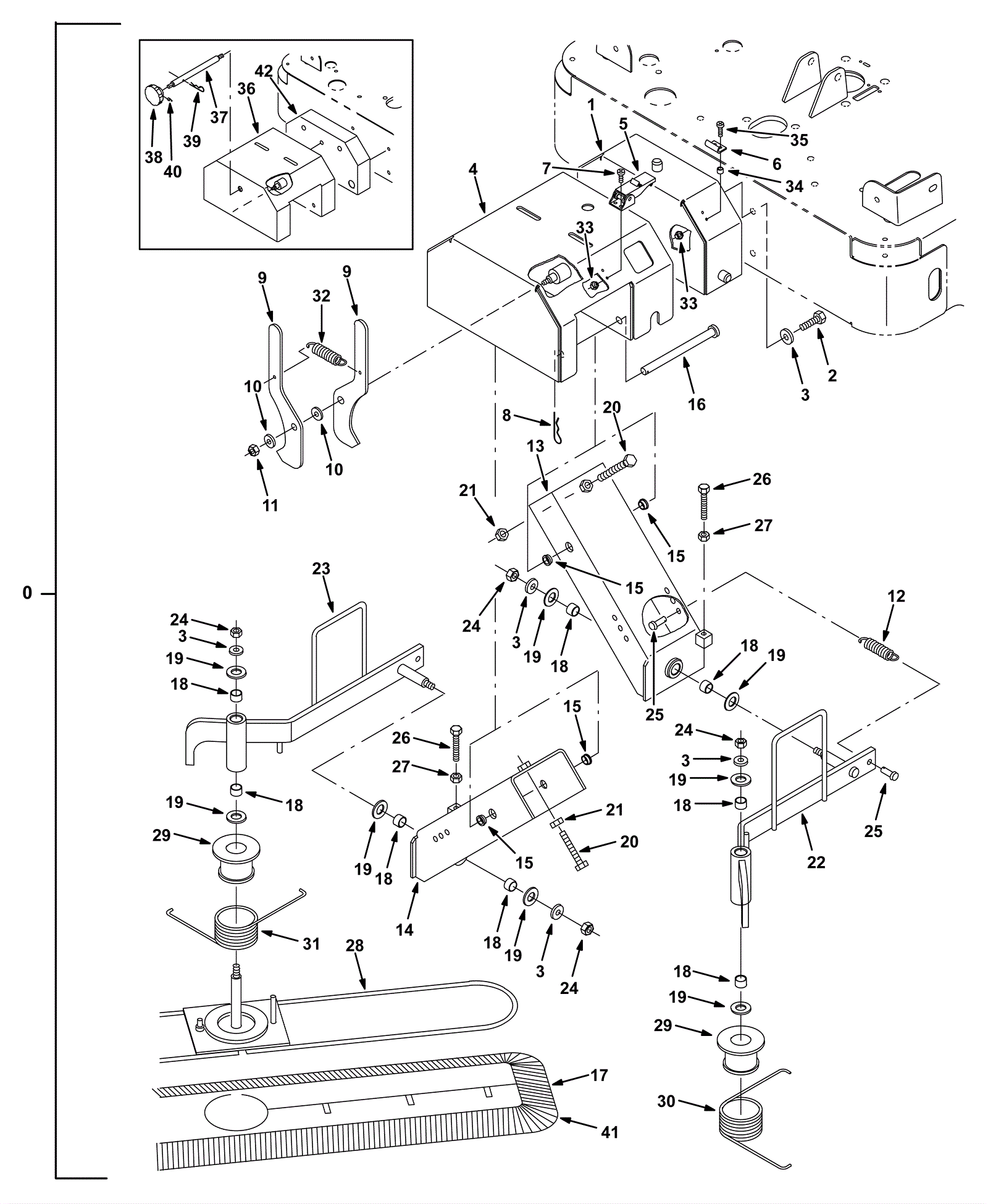

6100E Quick Mop Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-0904 Quick mop kit, 6100 $3,005.64 1 (includes 1-35) usually ships 1-5 days
1 275-0614 V-mop bumper weldment $249.04 1 usually ships 1-5 days
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.19 4 usually ships 5-16 days
3 999-0032 Washer 3/8 USS flat plain finish $2.42 8 ships same day
4 275-0615 HOUSING WLDT, MTG, V-MOP (Tennant Industrial) $535.90 1 usually ships 1-5 days
5 175-5324 Door latch $25.08 2 usually ships 5-16 days
6 175-5325 Keeper bracket $4.29 2 usually ships 5-16 days
7 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 4 ships same day
8 175-2106 Cotter hair pin $3.30 2 ships same day
9 275-0617 V-mop latch plate $27.39 2 ships same day
10 175-3354 Thrust washer $9.68 2 usually ships 5-16 days
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
12 175-3345 Extension spring $9.13 2 ships same day
13 275-0618 Left lift channel weldment $172.70 1 usually ships 1-5 days
14 275-0619 Right lift channel weldment $168.08 1 usually ships 1-5 days
15 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
16 175-5332 Clevis pin 1/2 x 6 $9.13 2 usually ships 5-16 days
17 175-5342 Dust mop $62.92 2 usually ships 1-5 days
18 175-5333 Sleeve bushing $9.13 8 usually ships 5-16 days
19 175-3347 Washer .61 thrust $4.84 8 ships same day
20 175-5334 Screw M10 x 1.5 x 90mm hex $5.83 2 usually ships 5-16 days
21 999-0767 Nut M10-1.5 hex coarse thread $0.99 2 ships same day
22 275-0620 Left arm weldment $168.08 1 usually ships 1-5 days
23 275-0621 Right arm weldment $171.16 1 usually ships 1-5 days
24 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 4 usually ships 1-5 days
25 175-3344 Clevis pin $7.48 4 usually ships 5-16 days
26 175-5337 Screw M8 x 1.25 x 60mm hex $3.30 2 usually ships 1-5 days
27 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
28 275-0622 V-mop frame weldment $169.73 2 usually ships 1-5 days
29 175-5339 Spring spacer $43.23 2 usually ships 5-16 days
30 175-5340 Torsion spring $72.05 1 usually ships 5-16 days
31 175-5340 Torsion spring $72.05 1 usually ships 5-16 days
32 175-0770 Extension spring $4.95 1 usually ships 5-16 days
33 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 8 ships same day
34 175-5327 Spacer $18.59 4 usually ships 5-16 days
35 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel $3.19 4 usually ships 5-16 days
36 N/A Not available Call for price 1 (V-mop housing weldment) usually ships 3-26 days
37 275-0906 Threaded rod $46.86 1 usually ships 1-5 days
38 275-0008 Round plastic knob 2.37d 1.3l .38h $13.97 1 usually ships 1-5 days
39 175-2106 Cotter hair pin $3.30 1 ships same day
40 275-0907 Screw #10 - 32 x 3/8 set $3.96 1 usually ships 1-5 days
41 175-5343 Industrial dust mop (OBSOLETE) $46.20 1 usually ships 5-16 days
42 275-0911 V-mop bumper weldment (TENNANT INDUSTRIAL) $1,678.18 1 usually ships 1-5 days
