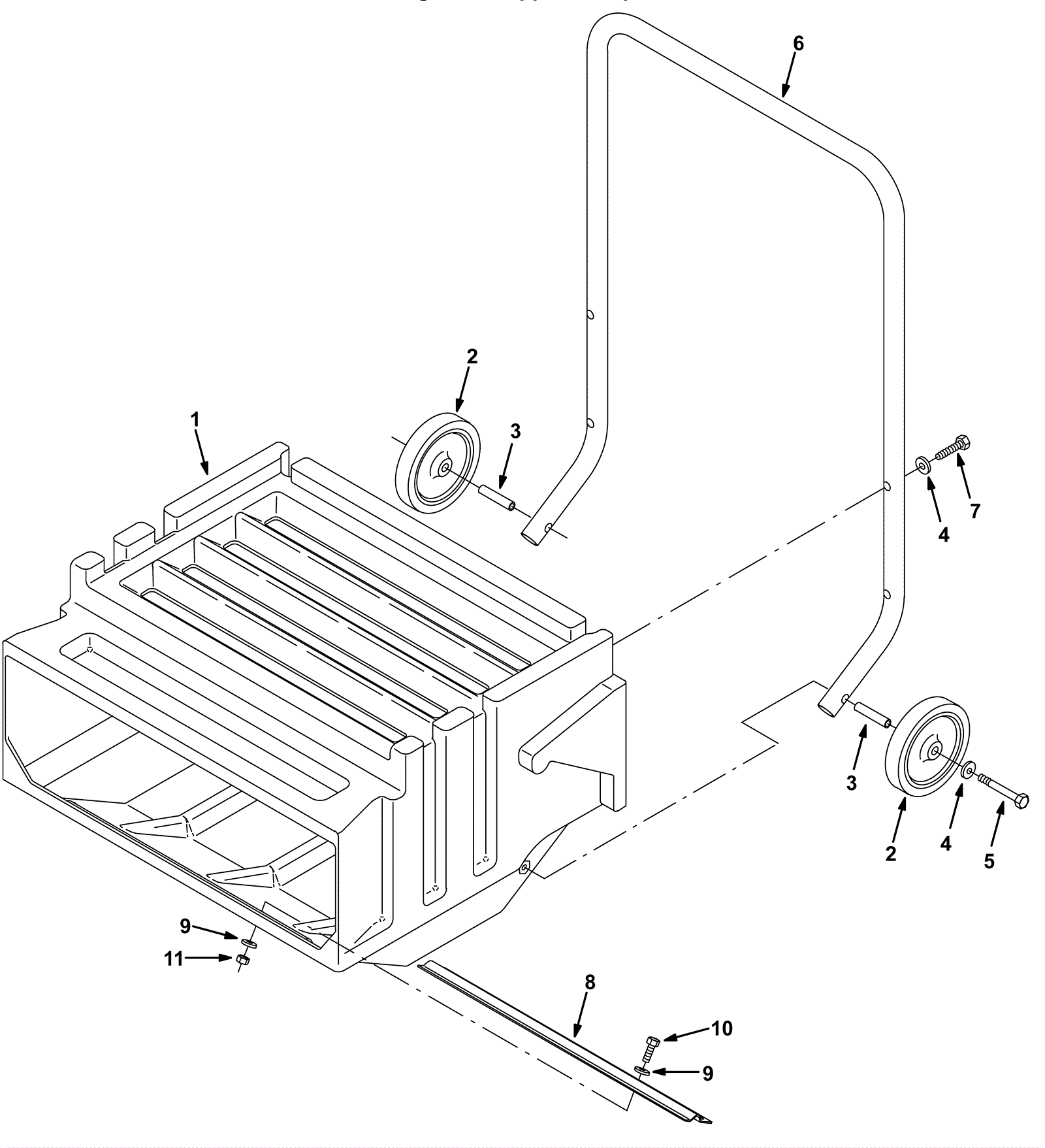

6100E Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0862 Rear hopper $577.28 1 usually ships 1-5 days
2 275-0863 Hopper wheel $20.02 2 usually ships 10-16 days
3 275-0864 Axle tube $24.97 2 usually ships 10-16 days
4 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
5 175-7120 Screw M8 x 1.25 x 50mm hex $4.88 2 usually ships 10-16 days
6 275-0865 Hopper handle $189.20 1 usually ships 1-5 days
7 175-3436 Bolt 8mm-1.25 x 40mm hex head $4.09 4 usually ships 1-5 days
8 275-0866 Hopper bracket $44.22 1 usually ships 1-5 days
9 999-0123 Washer 1/4 SAE flat zinc plated $0.99 10 ships same day
10 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 5 ships same day
11 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 5 ships same day
