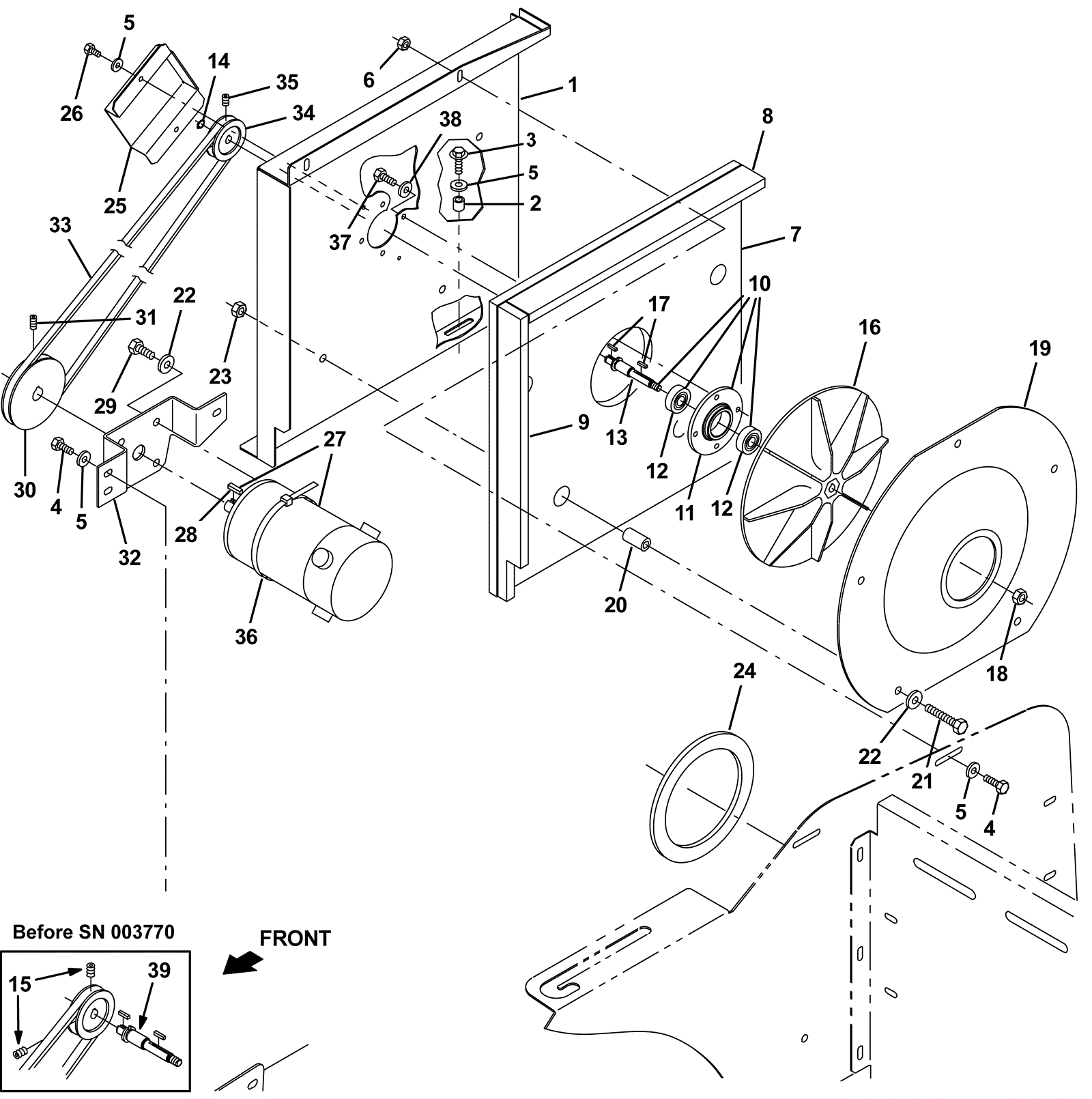

6100E Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0852 Housing bearing plate $127.60 1 usually ships 1-5 days
2 175-2249 Sleeve $4.22 2 usually ships 13-17 days
3 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 5 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 9 ships same day
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
7 275-6937 Insulation $37.40 1 usually ships 1-5 days
8 275-0853 Insulation $7.92 1 usually ships 1-5 days
9 275-6938 Insulation $7.92 1 usually ships 1-5 days
10 275-0509 Vacuum fan bearing replacement kit $160.71 1 (includes 11-14) usually ships 13-17 days
11 275-0510 Vacuum fan bearing housing $29.81 1 usually ships 1-5 days
12 275-0511 Ball bearing $18.04 2 usually ships 13-17 days
13 275-0512 Vacuum fan drive shaft $109.67 1 usually ships 1-5 days
14 175-6752 RING, RETAINING, EXT, 0.38D, [SELFLOCK] (Tennant Industrial $4.00 1 usually ships 1-5 days
15 175-9339 Screw M6-1 x 8mm set socket $5.28 2 (before SN 003770) usually ships 13-17 days
16 275-0514 Impeller $102.96 1 usually ships 1-5 days
17 175-9158 Square key 1/8 x 1/8 inch $4.49 2 usually ships 1-5 days
18 175-9286 Nut 5/16 x 24 hex flex lock thin plated $5.28 1 usually ships 1-5 days
19 275-0854 Fan (painted) plate $87.01 1 usually ships 1-5 days
20 275-0855 Tube $9.79 5 usually ships 13-17 days
21 999-0309 Bolt M8-1.25 x 50mm hex head part thread zinc $0.99 5 ships same day
22 999-0024 Washer 5/16 flat stainless steel $1.34 9 usually ships 19-32 days
23 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
24 275-0856 Vac fan seal $8.80 1 usually ships 1-5 days
25 275-0507 Fan sheave guard $26.07 1 usually ships 1-5 days
26 175-5113 Bolt M6 x 12mm hex head $3.30 2 usually ships 1-5 days
27 275-5097 Electric motor assembly $925.21 1 (includes 28) usually ships 13-17 days
28 175-3200 Square keyway $4.49 1 ships same day
29 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 ships same day
30 275-6940 Sheave $100.87 1 usually ships 1-5 days
31 275-0086 Screw M6-1 x 16 set socket head $5.50 2 usually ships 1-5 days
32 275-6941 Vacuum motor mounting bracket $28.82 1 usually ships 1-5 days
33 275-6078 52 inch v belt $16.61 1 ships same day
34 275-6942 Sheave $84.37 1 usually ships 1-5 days
35 175-9339 Screw M6-1 x 8mm set socket $5.28 1 usually ships 13-17 days
36 175-2226 Nylon wire tie $4.49 1 ships same day
37 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
38 275-0092 Washer 1/4 flat belleville $4.36 4 usually ships 13-17 days
39 275-0512 Vacuum fan drive shaft $109.67 1 (before SN 003770) usually ships 1-5 days
