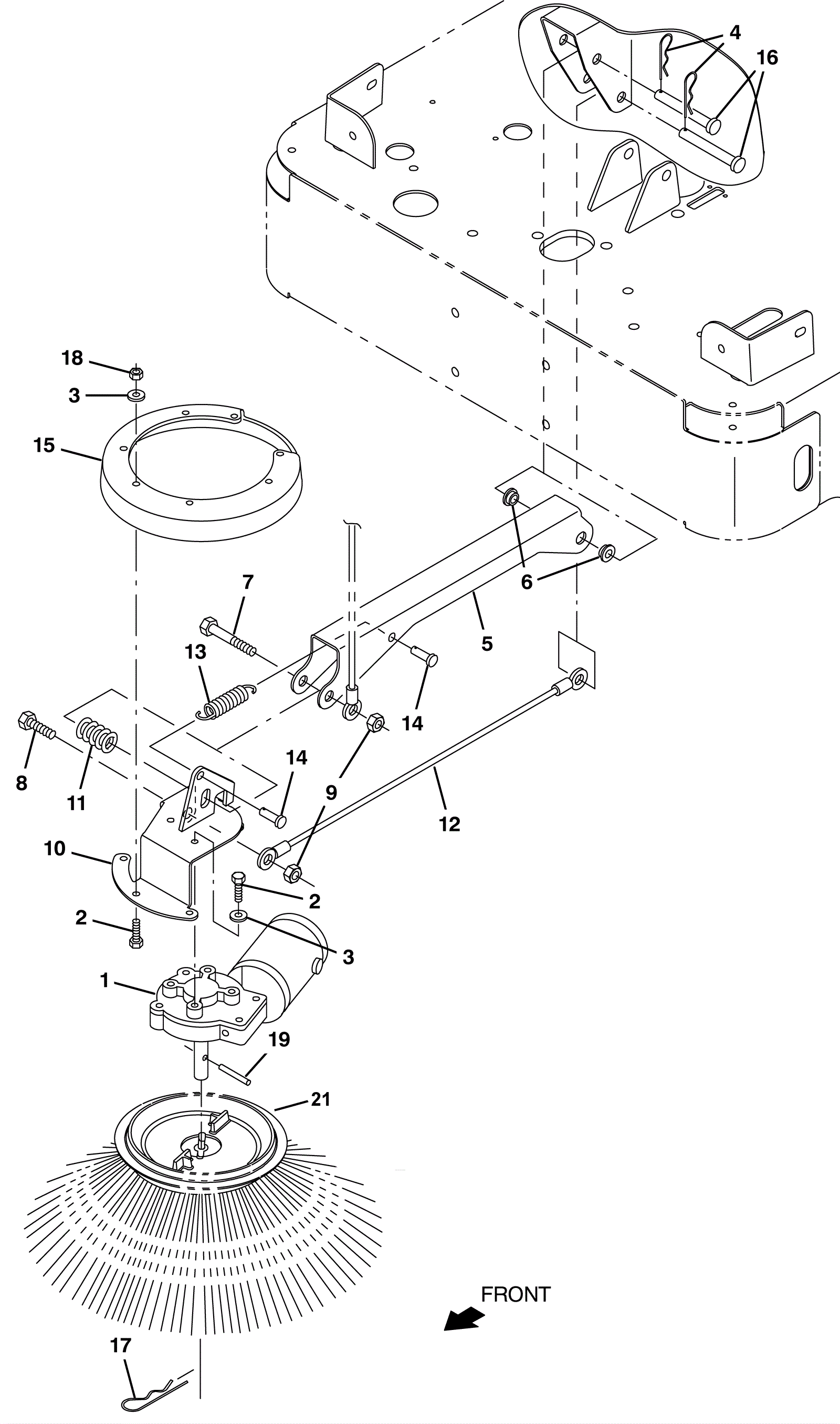

6100E Side Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-0108 36V sidebrush motor $813.23 1 (Right hand) (includes 1c-1f) ships same day
1b 275-4683 Electric motor 36VDC .08hp $830.28 1 (Left hand) (includes 1c-1f) usually ships 5-16 days
1c 275-0109 Carbon brush assembly $25.08 1 usually ships 5-16 days
1d 175-9270 Brush cap $3.96 2 usually ships 5-16 days
1e 175-9271 Brush holder $21.89 2 usually ships 5-16 days
1f 175-9272 Clip $5.61 2 usually ships 5-16 days
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 9 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
4 175-2117 Cotter pin $3.96 2 ships same day
5 275-0913 Sidebrush channel bracket $100.32 1 usually ships 1-5 days
6 175-3335 Flanged bushing $15.40 2 usually ships 1-5 days
7 175-6824 Screw M12-1 3/4 x 60mm hex $3.96 1 usually ships 1-5 days
8 175-0615 Bolt M12-1.75 x 25mm hex head $3.96 1 usually ships 5-16 days
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
10a 275-0503 Right hand side brush bracket weldment $123.31 1 usually ships 1-5 days
10b 275-0582 Lefthand side brush bracket weldment $161.92 1 usually ships 5-16 days
11 275-0504 Spring $20.13 1 usually ships 1-5 days
12 275-0850 Side brush cable $25.08 1 usually ships 5-16 days
13 175-3345 Extension spring $9.13 1 ships same day
14 175-3344 Clevis pin $7.48 2 usually ships 5-16 days
15 275-0851 Sidebrush guard $102.63 1 usually ships 1-5 days
16 175-2362 Washer 17 x 30 x 3 flat stainless steel $4.18 1 usually ships 5-16 days
17 175-2106 Cotter hair pin $3.30 1 ships same day
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 5 ships same day
19 175-9273 Roll pin $3.30 1 usually ships 5-16 days
20 175-0716 Clevis pin $3.96 2 usually ships 5-16 days
21 175-9207 Polypropelene side brush $159.06 1 usually ships 5-16 days
