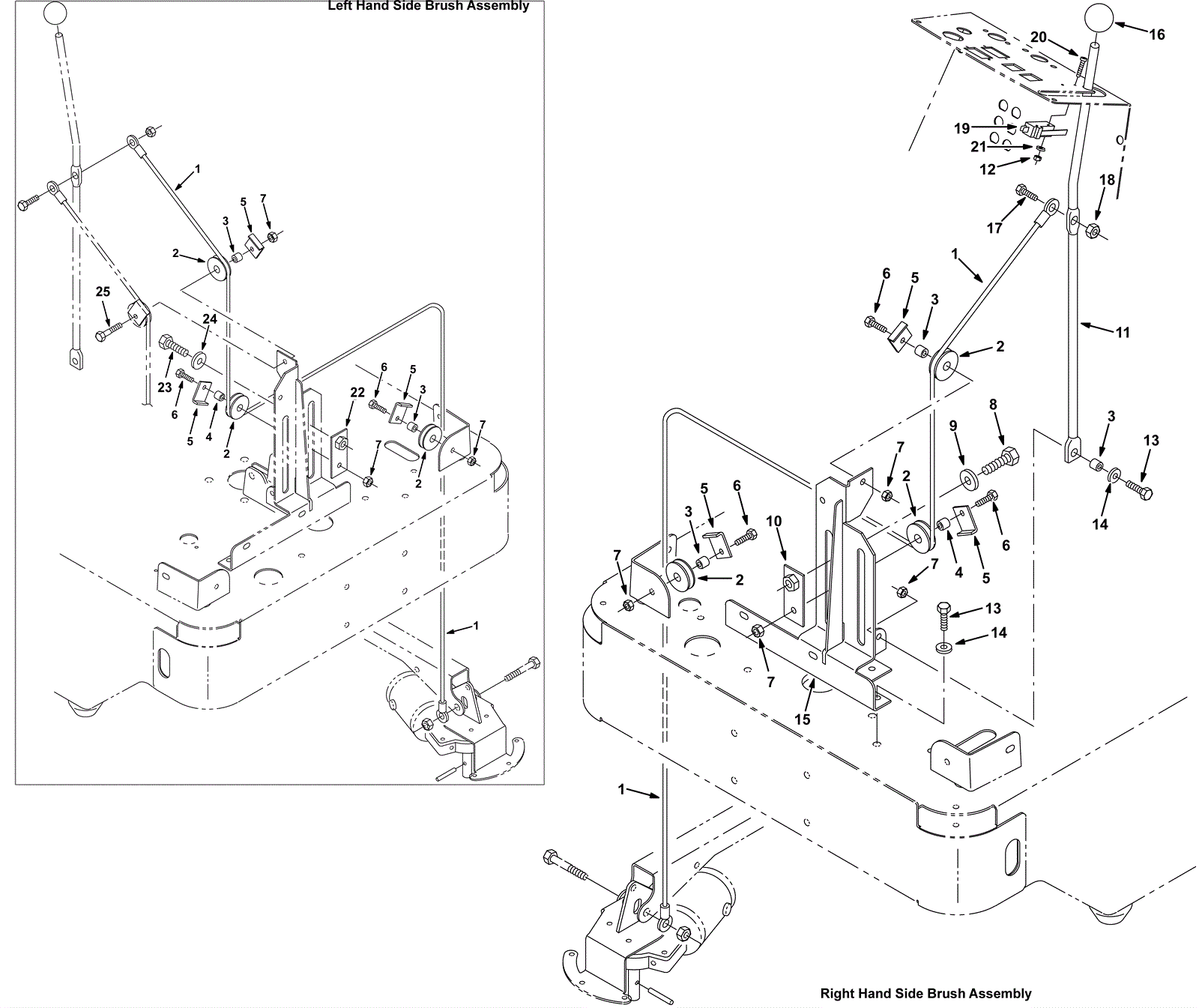

6100E Left and Right Hand Side Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-0845 Right hand lift sidebrush cable $31.90 1 (Right hand side) usually ships 13-17 days
1b 275-0581 Left hand lift sidebrush cable $29.92 1 (Left hand side) usually ships 1-5 days
2 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $8.34 3 usually ships 13-17 days
3 175-2249 Sleeve $4.22 3 usually ships 13-17 days
4 175-9263 Sleeve $5.50 1 usually ships 13-17 days
5 275-0058 Cable keeper angle bracket $8.14 3 usually ships 1-5 days
6 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 3 ships same day
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
8 275-0498 Screw M12-1.75 x 20mm hex head $6.27 1 usually ships 13-17 days
9 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
10 275-0499 Side brush lift plate $12.87 1 ships same day
11 275-0847 Handle $39.93 1 usually ships 1-5 days
12 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
13 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 19-32 days
15 275-6936 Side brush support $83.93 1 usually ships 1-5 days
16 275-0483 2 inch plastic knob $12.32 1 usually ships 13-17 days
17 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
18 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
19a 175-0337 Snap switch $38.06 1 usually ships 13-17 days
20 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
21 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
22 275-0499 Side brush lift plate $12.87 1 ships same day
23 275-0498 Screw M12-1.75 x 20mm hex head $6.27 1 usually ships 13-17 days
24 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
25 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc $0.99 1 ships same day
