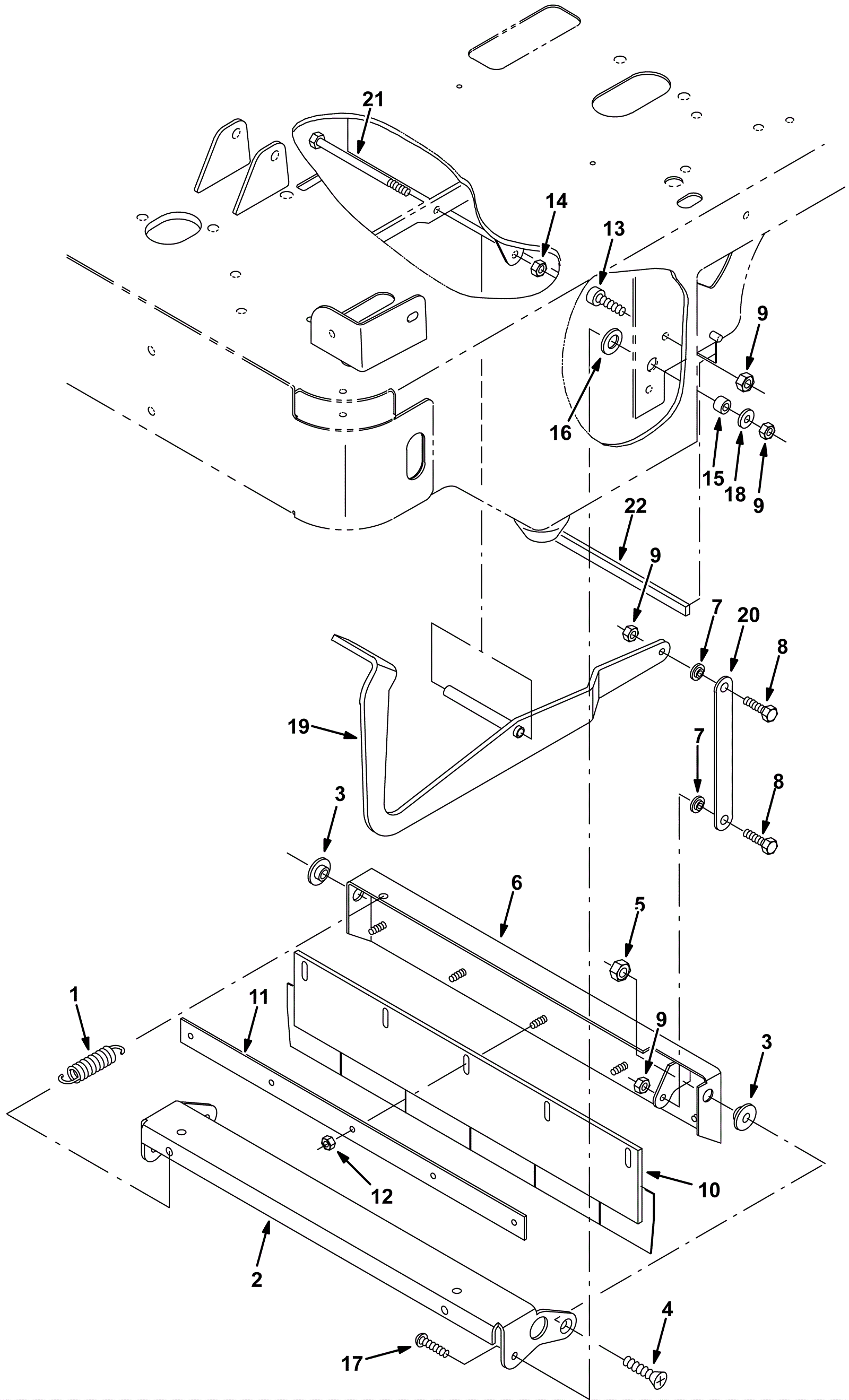

6100E Main Brush Front Flap Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7129 Tension spring $8.25 1 ships same day
2 275-0827 Front skirt bracket $53.46 1 usually ships 1-5 days
3 175-3287 Flanged bushing $6.27 2 ships same day
4 999-9142 Screw M10-1.5 x 35mm flat head $2.27 2 usually ships 19-32 days
5 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 2 usually ships 1-5 days
6 275-6933 Front flap bracket weldment $112.09 1 usually ships 1-5 days
7 175-9165 Bushing $10.78 2 usually ships 1-5 days
8 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
9 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
10 275-0828 Front skirt $88.00 1 usually ships 13-17 days
11 275-0829 Retainer $15.07 1 usually ships 1-5 days
12 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
13 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 ships same day
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
15 175-0755 Sleeve $6.05 2 usually ships 13-17 days
16 275-0061 Washer .64b 1.19d .06 flat nylon $7.15 2 usually ships 1-5 days
17 999-9143 Screw M8-1.25 x 35mm button $1.32 2 usually ships 19-32 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 2 usually ships 19-32 days
19 275-0830 Pedal weldment $74.36 1 usually ships 1-5 days
20 275-0457 Link plate $9.35 1 usually ships 1-5 days
21 999-9144 Screw M8-1.25 x 150mm 8.8 hex $5.96 1 usually ships 19-32 days
22 275-0668 Foam rubber seal $5.02 1 usually ships 1-5 days
