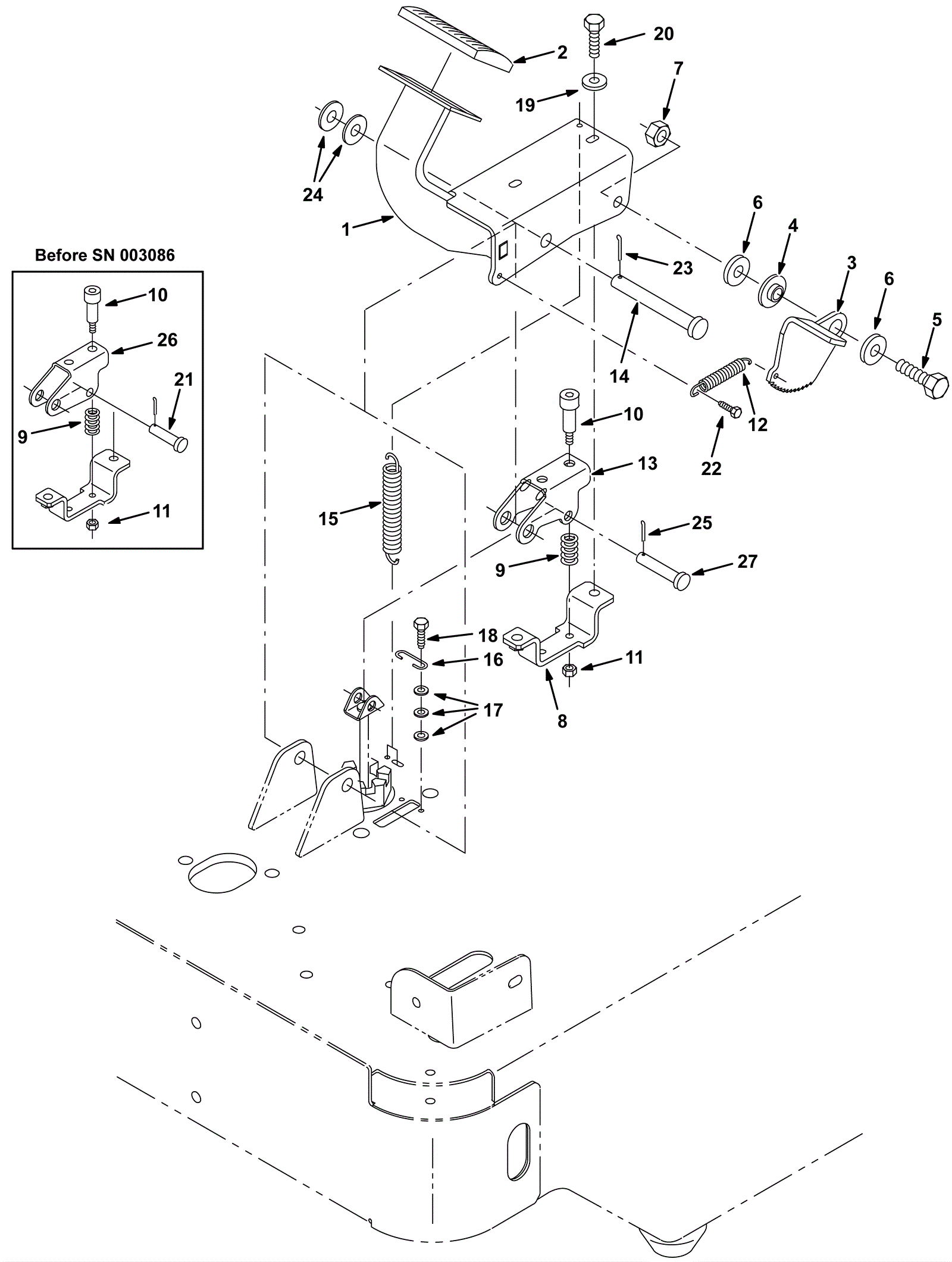

6100E Brake Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
0 N/A Not available Call for price 1 (Brake pedal assembly) (includes 1-14) (not saleable) usually ships 3-26 days
1 275-5336 Brake pedal weldment $112.42 1 usually ships 1-5 days
2 175-3279 Pedal pad $29.92 1 usually ships 5-16 days
3 175-3286 Brake pedal lock $73.15 1 usually ships 1-5 days
4 175-3287 Flanged bushing $5.61 1 ships same day
5 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $3.96 1 usually ships 1-5 days
6 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
7 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
8 175-4961 Spring mounting channel weldment $30.03 1 usually ships 1-5 days
9 175-3284 Compression spring $15.62 2 usually ships 1-5 days
10 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.60 2 usually ships 1-5 days
11 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
12 175-2065 Extension spring $10.12 1 usually ships 5-16 days
13 275-5337 Brake channel mounting bracket $28.27 1 (after SN 003085) usually ships 1-5 days
14 175-4960 Clevis pin $10.01 1 usually ships 5-16 days
15 175-2064 Extension spring $9.35 1 usually ships 5-16 days
16 175-3290 Parking brake spring $5.83 1 usually ships 1-5 days
17 999-0006 Washer 3/16 flat zinc plated $0.99 6 ships same day
18 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 2 ships same day
19 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
20 175-4963 Bolt M6-1 x 20mm hex head $4.73 2 usually ships 1-5 days
21 175-2111 Clevis pin $3.85 1 (before SN 003085) ships same day
22 175-3289 Bolt M5-.8 x 16mm hex head $3.96 1 usually ships 5-16 days
23 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
24 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
25 175-6176 Cotter pin $2.42 1 ships same day
26 275-2754 Brake linkage replacement kit $230.45 1 (before SN 003085) usually ships 1-5 days
27 173-1595 Clevis pin (OBSOLETE) $3.96 1 (after SN 003085) usually ships 5-16 days
