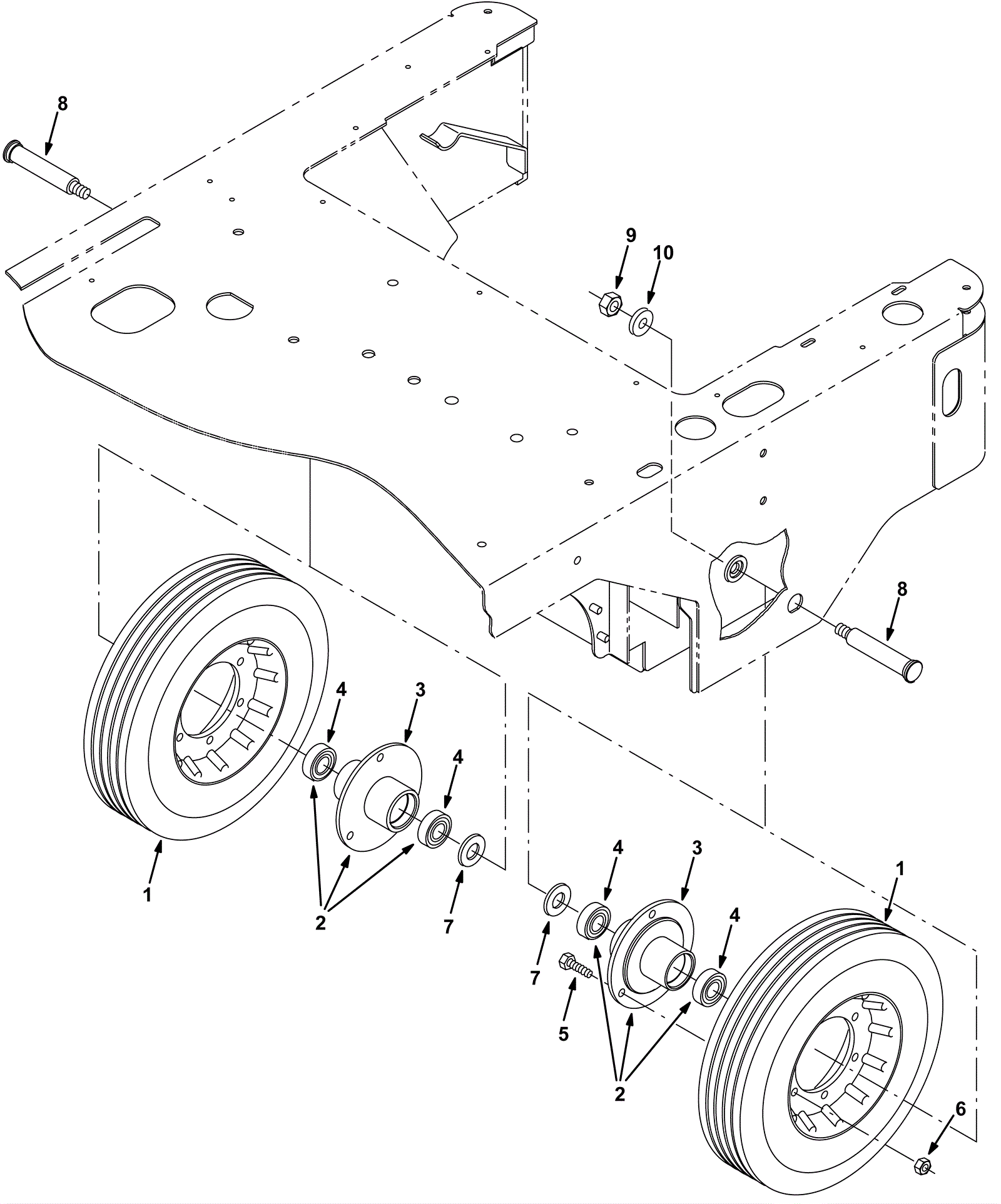

6100E Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0807 Rear wheel assembly $131.56 2 usually ships 10-16 days
2 275-0808 Rear wheel bearing assembly $130.35 2 (includes 3 and 4) usually ships 10-16 days
3 275-0809 Rear wheel housing weldment $116.82 2 usually ships 10-16 days
4 175-9998 Ball bearing $13.31 4 usually ships 10-16 days
5 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 6 ships same day
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
7 275-0810 Washer $5.50 2 usually ships 1-5 days
8 275-0811 Rear axle pin $76.45 2 usually ships 10-16 days
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
10 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
