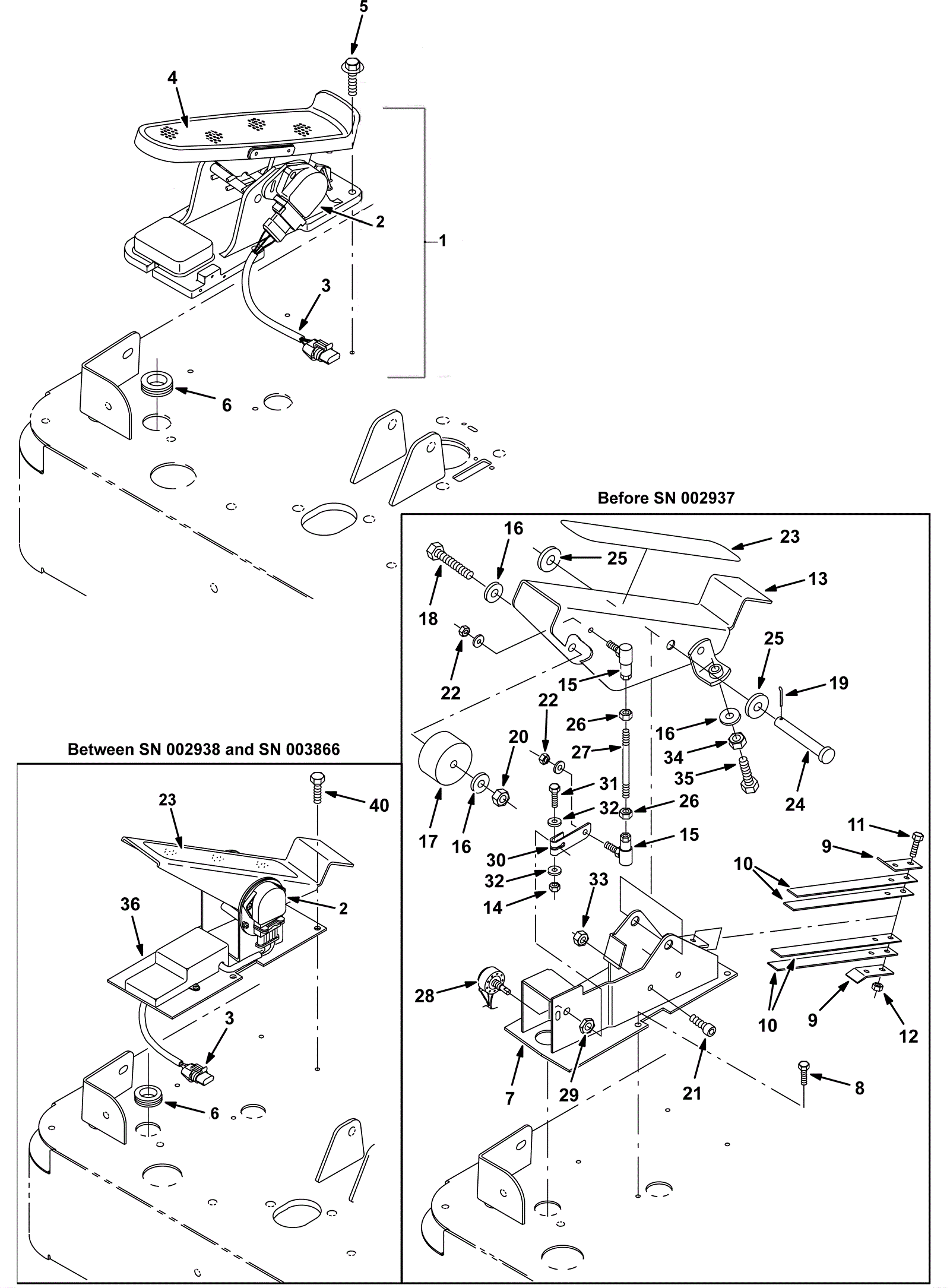

6100E Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6931 Propel pedal assembly $623.70 1 (includes 2-4) (after SN 003867) usually ships 5-16 days
2 175-4966 Pedal postion sensor $264.55 1 (after SN 002938) usually ships 5-16 days
3 175-4967 Pedal harness $130.13 1 (after SN 002938) usually ships 5-16 days
4 275-9283 Non-skid tread $11.11 1 (after SN 003867) usually ships 1-5 days
5 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 4 (after SN 003867) ships same day
6 175-3311 Rubber grommet $4.95 1 (after SN 002938) usually ships 1-5 days
7 175-3297 Control plate weldment (Tennant Industrial) $96.03 1 (before SN 002937) usually ships 5-16 days
8 175-3298 Bolt M6-1 x 12mm hex head $4.47 4 (before SN 002937) ships same day
9 175-3299 Spring retainer $16.83 2 (before SN 002937) usually ships 1-5 days
10 175-3300 Strip stainless $16.83 4 (before SN 002937) usually ships 1-5 days
11 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 (before SN 002937) ships same day
12 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 (before SN 002937) ships same day
13 175-3301 Accelerator pedal weldment $73.15 1 (before SN 002937) usually ships 1-5 days
14 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (before SN 002937) ships same day
15 175-3302 Balljoint 1/4-28 $9.13 2 (before SN 002937) usually ships 5-16 days
16 999-0120 Washer 3/8 SAE flat $0.99 3 (before SN 002937) ships same day
17 175-3303 Spacer $7.26 1 (before SN 002937) usually ships 1-5 days
18 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 (before SN 002937) ships same day
19 175-3281 Cotter pin $2.42 1 (before SN 002937) usually ships 5-16 days
20 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 (before SN 002937) usually ships 1-5 days
21 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 (before SN 002937) ships same day
22 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 1 (before SN 002937) ships same day
23 175-3307 Non-skid tread $5.83 1 (before SN 003860) usually ships 5-16 days
24 175-3280 Clevis pin $5.83 1 (before SN 002937) usually ships 5-16 days
25 999-0114 Washer 1/2 SAE flat $0.99 2 (before SN 002937) ships same day
26 999-0651 Nut 1/4-28 hex stainless steel $0.99 2 (before SN 002937) ships same day
27 175-3308 2 end threaded rod $28.71 1 (before SN 002937) usually ships 1-5 days
28 175-3309 Potentiometer $113.19 1 (before SN 002937) usually ships 5-16 days
29 175-2277 Nut hex head $3.30 1 (before SN 002937) usually ships 5-16 days
30 175-3310 Lever $18.59 1 (before SN 002937) usually ships 5-16 days
31 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 (before SN 002937) ships same day
32 999-0016 Washer 1/4 flat plain finish $0.99 2 (before SN 002937) ships same day
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 (before SN 002937) ships same day
34 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 (before SN 002937) ships same day
35 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 1 (before SN 002937) usually ships 1-5 days
36 175-4964 Foot pedal assembly $692.01 1 (between SN 002938-003866) usually ships 5-16 days
37 175-4966 Pedal postion sensor $264.55 1 (between SN 002938-003866) usually ships 5-16 days
38 175-4967 Pedal harness $130.13 1 (between SN 002938-003866) usually ships 5-16 days
39 175-3307 Non-skid tread $5.83 1 (between SN 002938-003866) usually ships 5-16 days
40 175-3298 Bolt M6-1 x 12mm hex head $4.47 4 (between SN 002938-003866) ships same day
