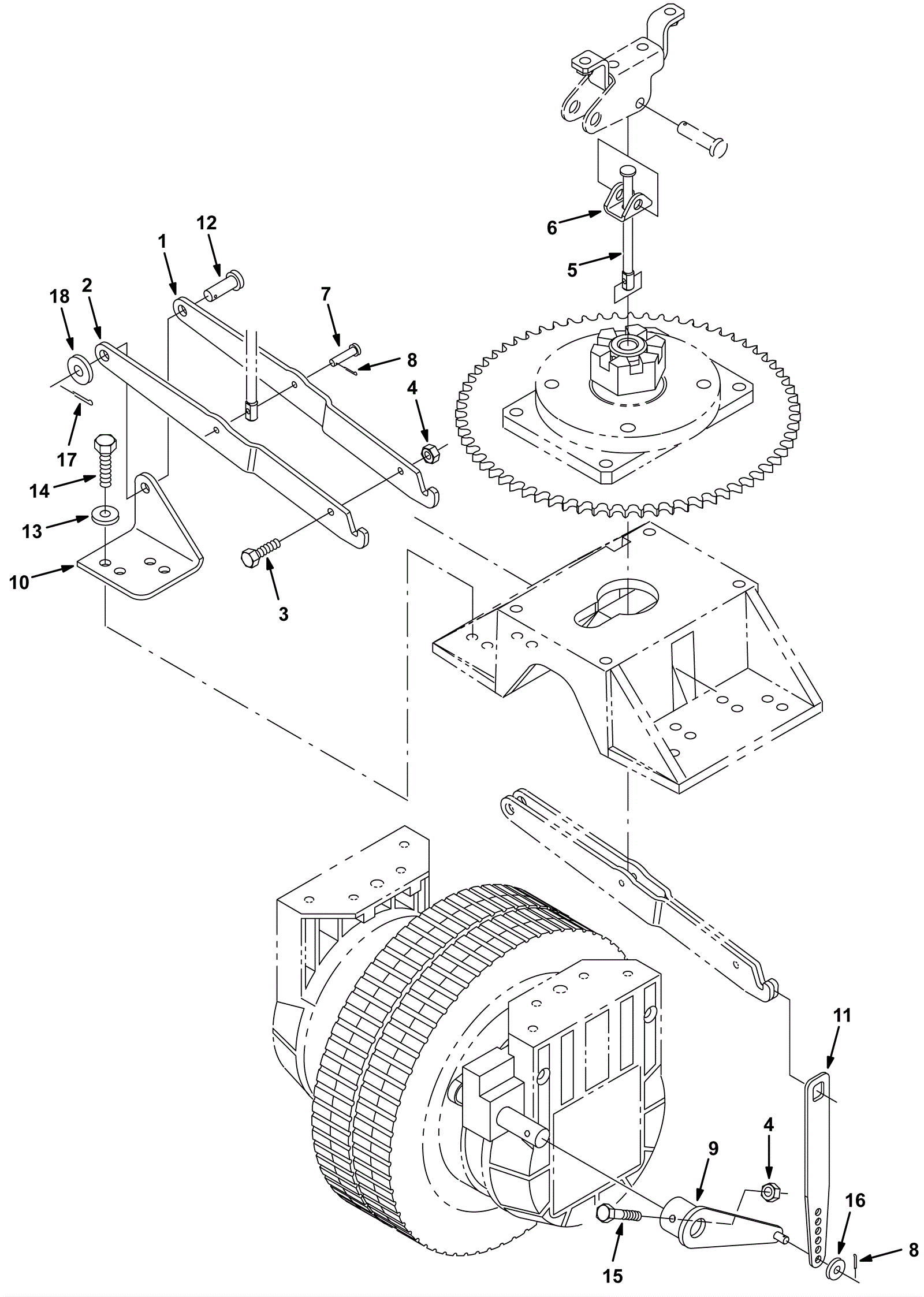

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-2749
|
Left side brake arm link |
$36.08
|
1 |
|
usually ships 1-5 days |
2 |
275-2750
|
Right side brake arm link |
$36.08
|
1 |
|
usually ships 1-5 days |
3 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
1 |
|
ships same day |
4 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
5 |
275-2751
|
Brake link |
$188.65
|
1 |
|
usually ships 1-5 days |
6 |
275-2752
|
Brake channel |
$24.86
|
1 |
|
usually ships 1-5 days |
7 |
175-3271
|
Clevis pin |
$6.49
|
1 |
|
usually ships 1-5 days |
8 |
175-3272
|
Cotter pin |
$3.30
|
2 |
|
usually ships 13-17 days |
9 |
175-4956
|
Brake arm weldment |
$56.98
|
1 |
|
usually ships 1-5 days |
10 |
175-4957
|
Pivot brake bracket |
$19.80
|
1 |
|
usually ships 1-5 days |
11 |
175-4958
|
LINK, BRAKE (Tennant Industrial) |
$20.00
|
1 |
|
usually ships 1-5 days |
12 |
275-2753
|
PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) |
$6.67
|
1 |
|
usually ships 13-17 days |
13 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
2 |
|
ships same day |
14 |
175-3163
|
Screw M8-1.25 x 60mm hex head |
$4.49
|
2 |
|
usually ships 13-17 days |
15 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
$4.49
|
1 |
|
usually ships 1-5 days |
16 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
1 |
|
ships same day |
17 |
175-3281
|
Cotter pin |
$3.30
|
1 |
|
usually ships 13-17 days |
18 |
999-0032
|
Washer 3/8 USS flat plain finish |
$2.42
|
1 |
|
ships same day |
