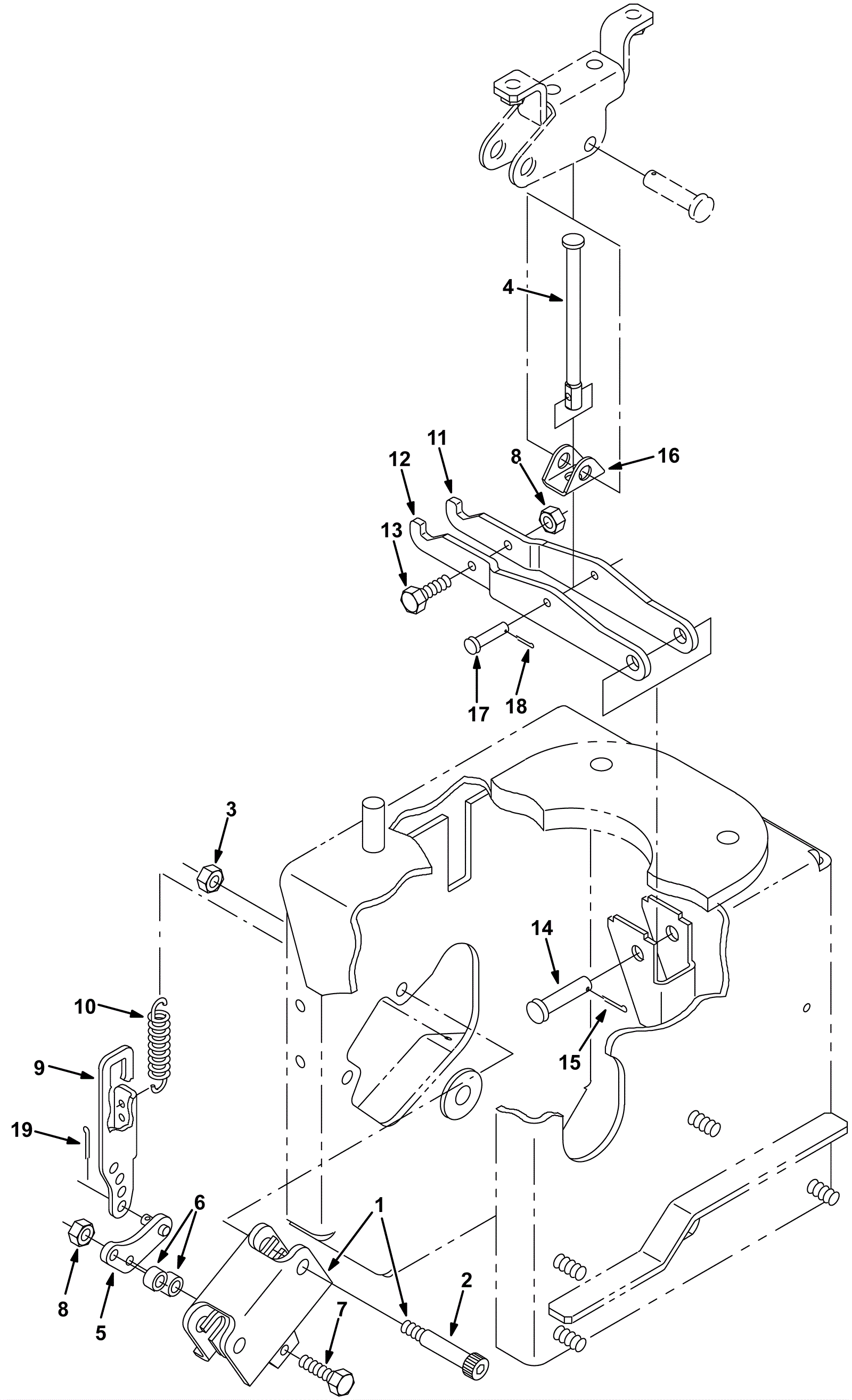

6100E Front Brake Linkage Assembly - Before SN 002362

#PartDescriptionPriceReqNotesAvailability
1a 275-0730 Brake caliper (OBSOLETE) $164.12 1 (includes 1b and 2) usually ships 1-5 days
1b 275-0731 Stator brake disc kit replacement $125.95 1 usually ships 1-5 days
2 275-0800 Screw 3/8 x 1 1/2 shoulder (OBSOLETE) $4.09 2 usually ships 1-5 days
3 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 2 ships same day
4 275-2754 Brake linkage replacement kit $230.45 1 usually ships 1-5 days
5 N/A Not available Call for price 1 Brake arm weldment usually ships 3-26 days
6 175-0550 Sleeve $3.74 2 ships same day
7 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
8 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
9 275-0803 Brake link $54.45 1 usually ships 1-5 days
10 175-7129 Tension spring $7.48 1 ships same day
11 N/A Not available Call for price 1 Right hand lift arm brake usually ships 3-26 days
12 275-0805 Left lift brake arm $57.64 1 usually ships 1-5 days
13 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
14 175-2111 Clevis pin $3.85 1 ships same day
15 175-6176 Cotter pin $2.42 1 ships same day
16 275-2754 Brake linkage replacement kit $230.45 1 usually ships 1-5 days
17 175-3271 Clevis pin $5.83 1 usually ships 1-5 days
18 175-3272 Cotter pin $2.42 1 usually ships 5-16 days
19 175-6176 Cotter pin $2.42 1 ships same day
