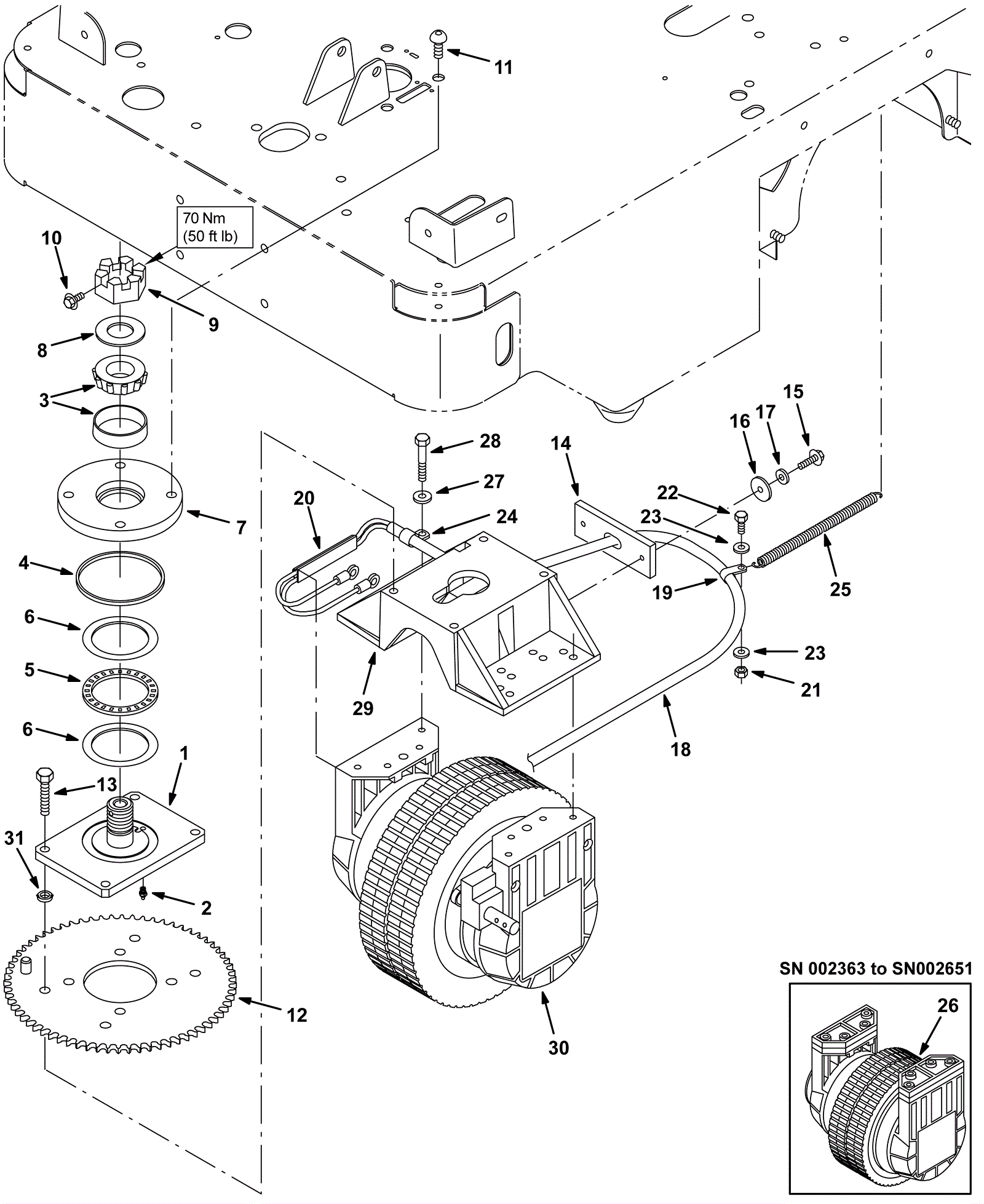

6100E Front Drive Wheel Assembly - After SN 002363

#PartDescriptionPriceReqNotesAvailability
1 175-3247 Swivel plate weldment $385.66 1 usually ships 1-5 days
2 175-3248 Grease fitting $3.30 1 (includes 3-6) usually ships 5-16 days
3a 175-4946 Front drive wheel replacement bearing kit $156.09 1 ships same day
3b 175-3253 Bearing assembly cup/cone $97.35 1 usually ships 5-16 days
4 175-3251 Felt seal $7.92 1 usually ships 5-16 days
5 175-3250 Thrust bearing $21.45 1 usually ships 5-16 days
6 175-3249 Washer thrust $6.60 2 usually ships 5-16 days
7 175-3252 Bottom swivel plate $276.98 1 usually ships 5-16 days
8 175-3254 Washer $6.60 1 usually ships 5-16 days
9 175-3255 Nut hexslot 1 1/4 x 12 $9.35 1 usually ships 1-5 days
10 175-3166 Bolt M6-1 x 16mm hex head $3.96 1 usually ships 5-16 days
11 175-3256 Screw M12-1.75 x 25mm button head $7.26 4 usually ships 1-5 days
12 275-6928 Sprocket weldment $61.60 1 usually ships 5-16 days
13 175-3259 Screw M10-1.5 x 45mm hex head $3.96 4 usually ships 1-5 days
14 175-4948 Strain relief flap $12.65 1 usually ships 5-16 days
15 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
17 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 2 ships same day
18 275-6929 Receptacle cord $84.37 1 usually ships 5-16 days
19 175-3170 P clamp $3.08 1 usually ships 1-5 days
20 175-3261 PVC duct $23.65 1 usually ships 5-16 days
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
23 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
24 175-3168 P clamp $3.96 1 usually ships 5-16 days
25 175-3263 Extension spring $21.89 1 usually ships 5-16 days
26 175-4950 Front wheel gearbox assembly $5,090.80 1 (SN 002363 to 002651) usually ships 5-16 days
27 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
28 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 6 ships same day
29 275-2748 Wheel adapter plate $208.56 1 usually ships 1-5 days
30 175-4952 Break wheel gearbox $4,423.98 1 (After SN 002651) usually ships 5-16 days
31 275-6930 Spacer (TENNANT INDUSTRIAL) $2.00 4 usually ships 1-5 days
