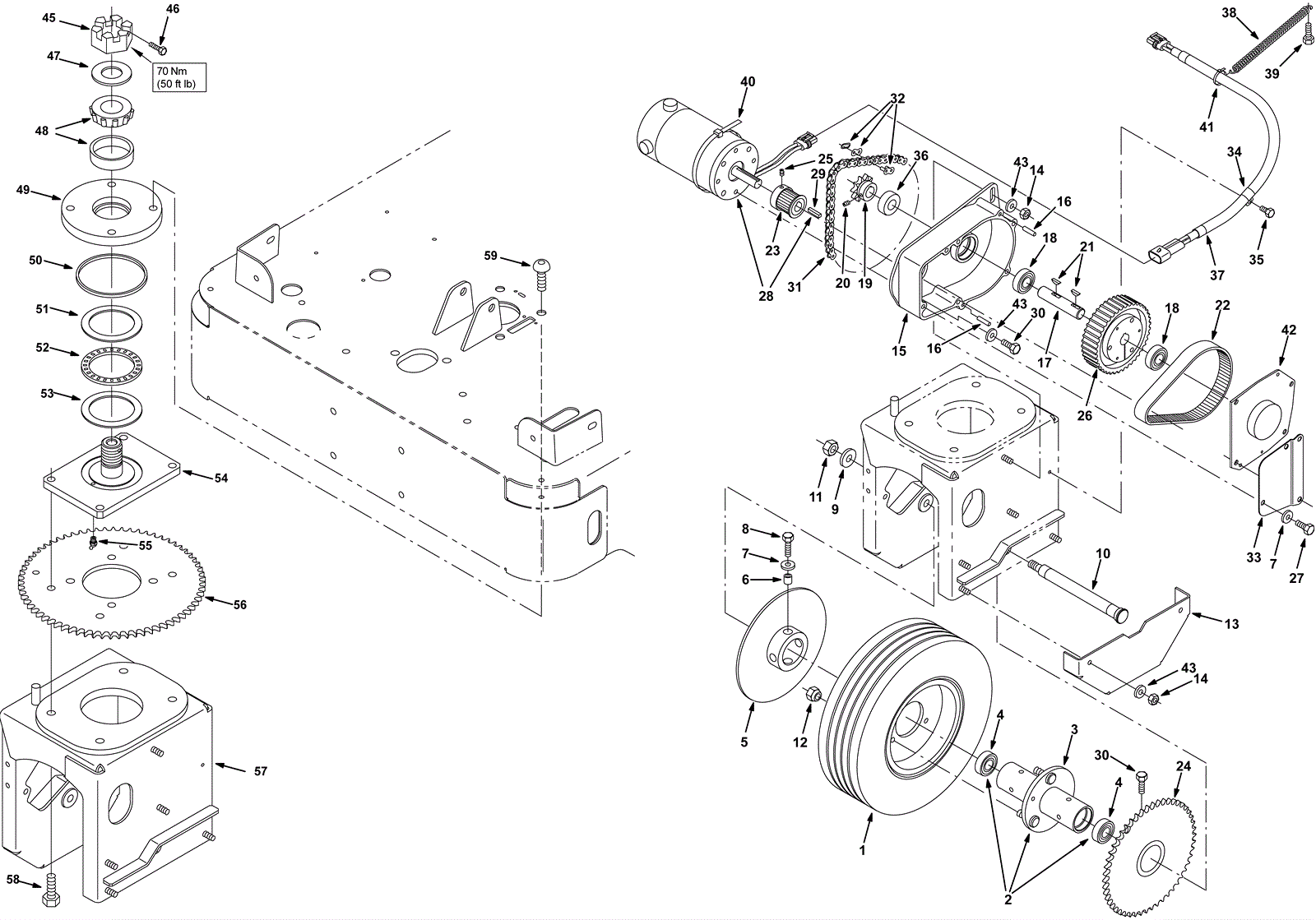

6100E Front Drive Wheel Pivot Assembly - Before SN 002362

#PartDescriptionPriceReqNotesAvailability
1 175-3296 Solid tire assembly $222.86 1 usually ships 10-13 days
2 275-0717 Front wheel bearing assembly $329.01 1 (includes 3 and 4) usually ships 10-13 days
3 275-0718 Front wheel housing $415.69 1 usually ships 1-5 days
4 175-9998 Ball bearing $14.30 2 usually ships 10-13 days
5 275-0719 Brake disc weldment $749.43 1 usually ships 1-5 days
6 175-2249 Sleeve $4.22 4 ships same day
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 9 ships same day
8 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
9 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
10 275-0720 Front wheel axle $394.13 1 usually ships 1-5 days
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
12 175-2288 Lug nut $4.36 3 ships same day
13 275-6918 Front drive chain guard $268.18 1 usually ships 1-5 days
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
15 275-6919 Front drive belt housing $655.16 1 usually ships 1-5 days
16 275-6920 Dowel pin $3.17 2 usually ships 1-5 days
17 275-6921 Shaft $416.13 1 usually ships 1-5 days
18 175-9998 Ball bearing $14.30 2 usually ships 10-13 days
19 275-6922 Sprocket $94.71 1 (includes 20) usually ships 1-5 days
20 275-0724 Screw M1/4 - 20 x 5/16 socket set $5.50 2 usually ships 1-5 days
21 175-3198 Woodruff key $4.49 2 usually ships 1-5 days
22 275-6495 Synchronous belt $93.17 1 usually ships 1-5 days
23 275-8628 Timing sprocket 23 tooth $182.05 1 usually ships 1-5 days
24 275-6923 Sprocket $215.38 1 usually ships 1-5 days
25 275-0724 Screw M1/4 - 20 x 5/16 socket set $5.50 2 usually ships 1-5 days
26a 275-6924 Timing sprocket $3,507.79 1 (includes 26b) usually ships 1-5 days
26b 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 3 ships same day
27 999-0783 Screw M8-1.25 x 16mm hex head $0.99 6 ships same day
28 275-9867 36V drive motor (OBSOLETE) $518.74 1 (includes 29) usually ships 10-13 days
29 275-0192 Square key $4.36 1 usually ships 1-5 days
30 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 6 ships same day
31 275-6925 Chain $111.10 1 (includes 32) usually ships 1-5 days
32 275-0726 Masterlink $14.52 1 usually ships 10-13 days
33 N/A Not available Call for price 1 (Belt cover plate) usually ships 3-26 days
34 175-3170 P clamp $4.22 1 ships same day
35 175-3298 Bolt M6-1 x 12mm hex head $4.49 1 ships same day
36 275-6926 Foam seal $5.50 1 usually ships 1-5 days
37 175-6051 Motor cord assembly $145.09 1 usually ships 10-13 days
38 175-3263 Extension spring $23.98 1 usually ships 10-13 days
39 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
40 175-2226 Nylon wire tie $4.49 1 ships same day
41 175-2162 Nylon wire tie $3.30 1 usually ships 10-13 days
42 275-6927 Front wheel drive belt cover weldment $482.24 1 usually ships 1-5 days
43 999-1407 Washer 5/16 belleville $3.04 5 ships same day
45 175-3255 Nut hexslot 1 1/4 x 12 $10.34 1 usually ships 1-5 days
46 175-3166 Bolt M6-1 x 16mm hex head $5.28 1 usually ships 10-13 days
47 175-3254 Washer $7.37 1 usually ships 10-13 days
48 175-3253 Bearing assembly cup/cone $106.37 1 usually ships 10-13 days
49 175-3252 Bottom swivel plate $302.39 1 usually ships 10-13 days
50 175-3251 Felt seal $8.80 1 usually ships 10-13 days
51b 175-3249 Washer thrust $7.37 2 usually ships 10-13 days
51a 175-4946 Front drive wheel replacement bearing kit $170.50 2 (includes 48, 50, 51b, 52 and 53) ships same day
52 175-3250 Thrust bearing $23.43 1 usually ships 10-13 days
53 175-3249 Washer thrust $7.37 1 usually ships 10-13 days
54 275-0714 Swivel plate weldment $894.30 1 usually ships 10-13 days
55 275-0716 Grease fitting $14.19 1 usually ships 1-5 days
56 175-9970 Drive steering sprocket $43.56 1 usually ships 1-5 days
57 375-3815 Front wheel housing weldment $4,387.90 1 usually ships 10-13 days
58 175-6784 Screw M12- 1.75 x 30mm hexhead $5.28 4 usually ships 1-5 days
59 175-3256 Screw M12-1.75 x 25mm button head $8.03 4 usually ships 1-5 days
