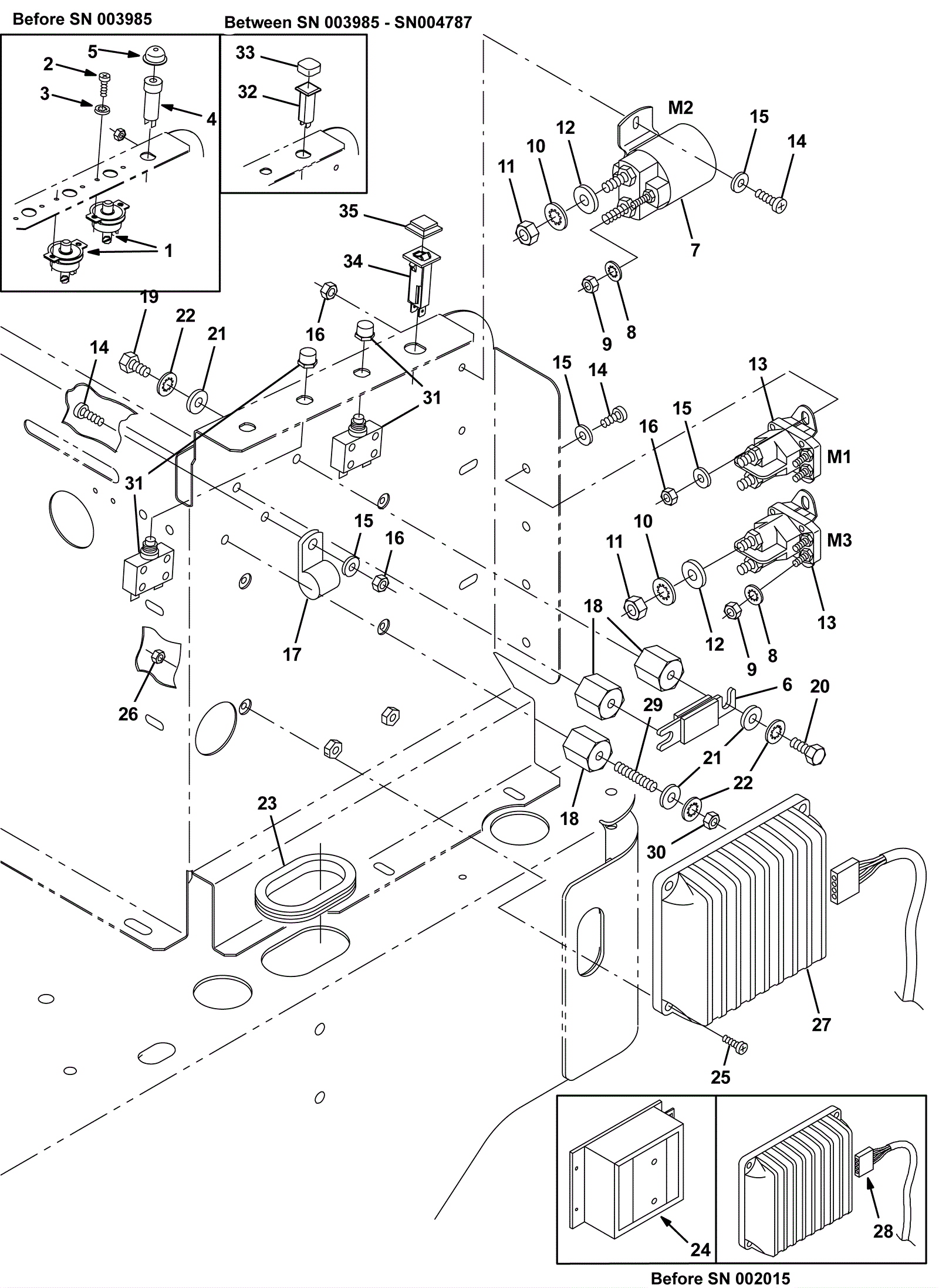

6100E Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2545 25amp circuit breaker $43.30 2 (before SN 003718) usually ships 6-16 days
2 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.90 4 (before SN 003718) ships same day
3 999-0092 Washer #8 internal star lock zinc plated $0.99 4 (before SN 003718) ships same day
4 175-2542 10amp circuit breaker $16.40 1 (before SN 003985) usually ships 6-16 days
5 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 (before SN 003985) ships same day
6 175-3238 Fuse $57.20 1 usually ships 6-16 days
7 991-1227 36V solenoid 4 post (2 large 2 small) $72.04 1 ships same day
8 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
9 999-0460 Nut 10-32 hex $0.90 6 ships same day
10 999-0406 Washer 5/16 internal star lock zinc plated $0.90 6 ships same day
11 175-0849 Nut 5/16-24 hex $2.40 6 usually ships 1-5 days
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
13 175-2373 36V contactor $32.20 2 ships same day
14 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 6 ships same day
15 999-0006 Washer 3/16 flat zinc plated $0.99 69 ships same day
16 175-2894 Nut M5-.8 hex nylon locking $2.20 6 usually ships 6-16 days
17 175-3179 P clamp $1.62 1 ships same day
18 175-3226 Insulated stand off $8.50 3 ships same day
19 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $3.79 3 ships same day
20 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.90 2 ships same day
21 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
22 999-0238 Washer 1/4 internal star lock zinc plated $0.90 6 ships same day
23 275-8203 Molding $40.20 1 usually ships 1-5 days
24 175-2375 Curtis board $263.70 1 (before SN 002015) usually ships 6-16 days
25 175-5310 Screw 4 x 45/64 x 16 pan head $2.90 4 usually ships 1-5 days
26 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
27 175-3244 36V motor controller $402.40 1 ships same day
28 275-6917 Controller harness $35.50 1 (before SN 002015) usually ships 1-5 days
29 175-3227 Threaded rod $6.70 1 usually ships 1-5 days
30 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
31 991-1631 25amp circuit breaker $15.18 2 ships same day
32 275-9986 10amp circuit breaker (Tennant Industrial) $8.27 1 (between SN 003985 - SN004787) ships same day
33 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 (between SN 003985 - SN004787) ships same day
34 275-9986 10amp circuit breaker (Tennant Industrial) $8.27 1 ships same day
35 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 ships same day
