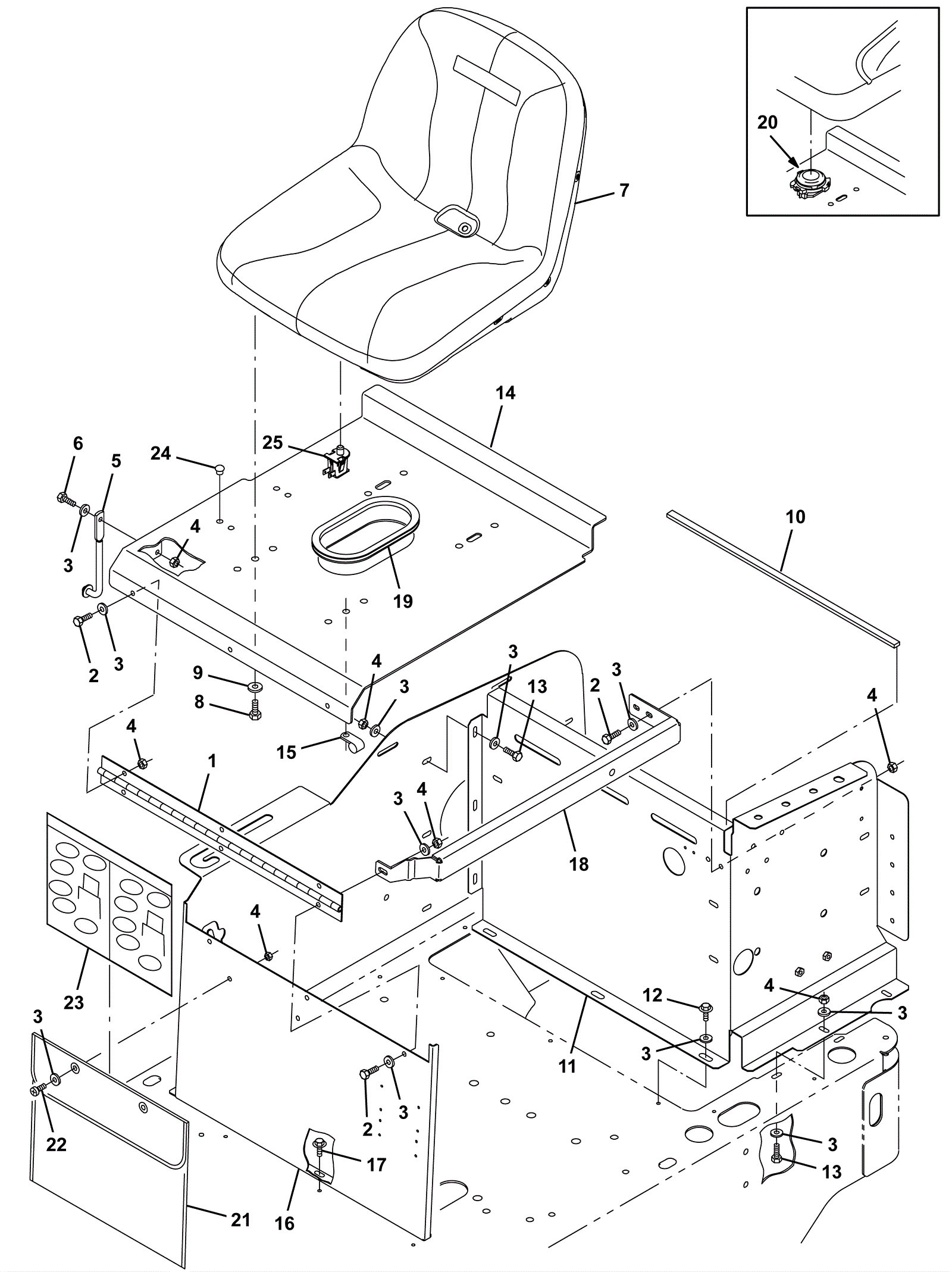

6100E Seat and Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0665 Seat support hinge $15.29 1 usually ships 1-5 days
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 26 ships same day
4 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 17 ships same day
5 175-3181 Safety support arm $53.90 1 usually ships 5-16 days
6 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
7a 275-9328 Seat kit (includes screw and spacer) $262.90 1 (before SN 004017) ships same day
7b 275-6563 Seat kit $216.37 1 (after SN 004016) usually ships 1-5 days
8a 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 (before SN 004017) ships same day
8b 275-3879 SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) $3.67 4 (after SN 004016) usually ships 1-5 days
9 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
10 275-6908 Closed rubber seal $5.28 1 usually ships 5-16 days
11a 275-6909 Rear lintel weldment $216.37 1 (before SN 003718) usually ships 1-5 days
11b 275-6910 Rear lintel weldment (TENNANT INDUSTRIAL) $175.35 1 (after SN 003718) usually ships 1-5 days
12 999-0778 Screw M6-1 x 10mm hex head $0.99 3 ships same day
13 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 5 ships same day
14 275-6911 Seat plate assembly with decal $423.17 1 usually ships 1-5 days
15 175-3168 P clamp $3.96 1 usually ships 5-16 days
16 275-6912 Seat support $289.52 1 usually ships 1-5 days
17 175-3298 Bolt M6-1 x 12mm hex head $4.47 8 ships same day
18 275-6913 Seat support brace $54.78 1 usually ships 1-5 days
19 275-8075 Trim $39.30 1 ships same day
20 175-0596 Seat switch $23.21 1 (before SN 004017) ships same day
21 275-0664 Pouch $49.61 1 usually ships 5-16 days
22 175-3229 Screw 6mm-1 x 16 pan head $3.30 2 usually ships 1-5 days
23 275-0659 Use and care instrustion $73.67 1 usually ships 5-16 days
24 175-9924 White nylon plug $1.98 4 usually ships 1-5 days
25 275-9280 Seat switch $10.12 1 (after SN 004016) ships same day
