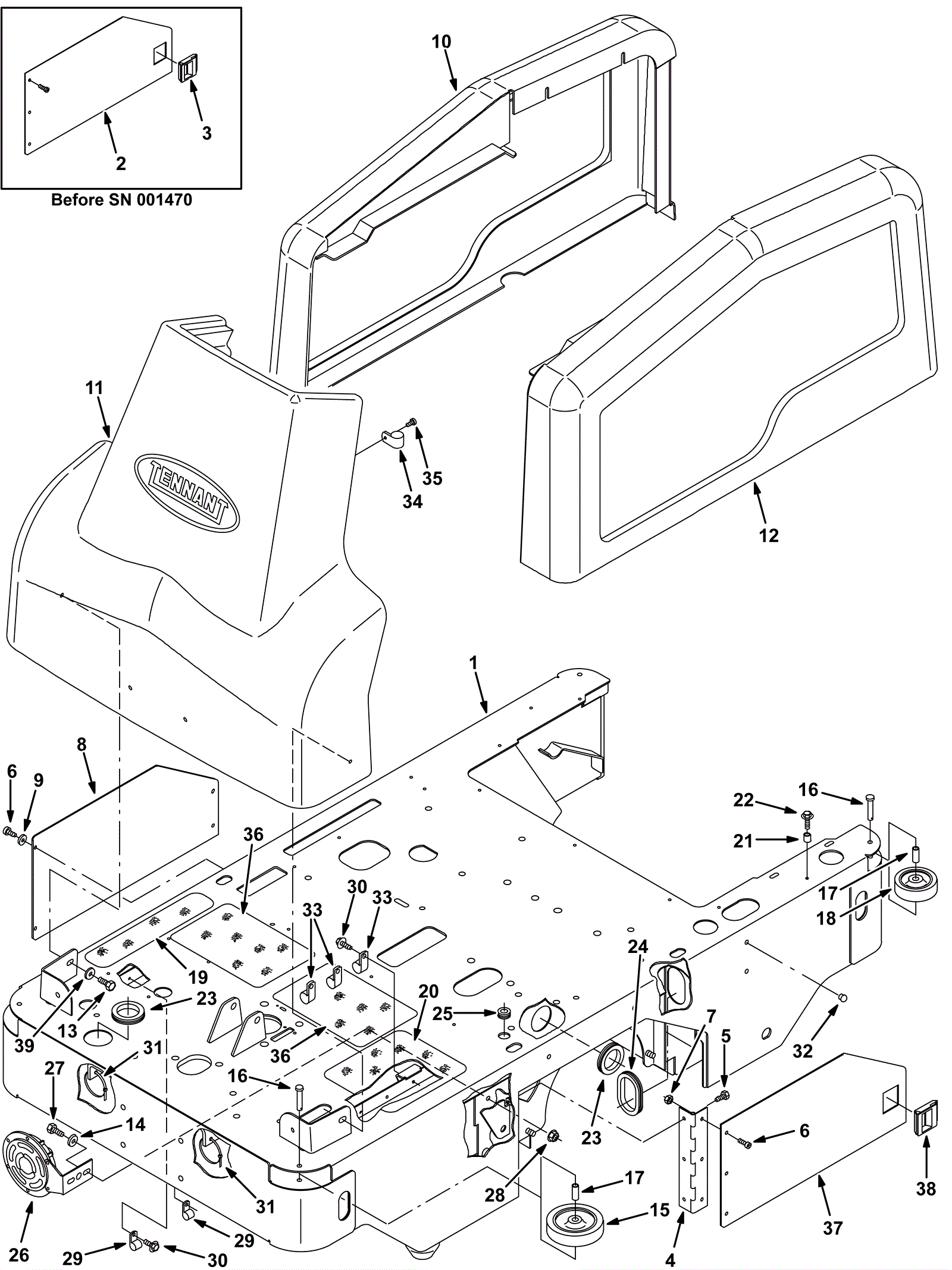

6100E Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 Sweeper frame weldment usually ships 3-26 days
2 275-0649 DOOR KIT, BRUSH, CI [6100] (Tennant Industrial) $78.68 1 (Before SN 001470) usually ships 1-5 days
3 275-0255 Push latch 1 1/2 x 1.8 $13.09 1 (Before SN 001470) usually ships 13-17 days
4 275-0251 Hinge $28.05 1 usually ships 13-17 days
5 175-5113 Bolt M6 x 12mm hex head $3.30 3 usually ships 1-5 days
6 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 7 ships same day
7 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 6 ships same day
8 275-6905 Brush compartment access cover $59.84 1 usually ships 1-5 days
9 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
10 275-6906 Right hand side cover $438.02 1 usually ships 1-5 days
11 275-0652 Front shroud $366.96 1 usually ships 1-5 days
12 275-6907 Left hand side cover $382.03 1 usually ships 1-5 days
13 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 3 usually ships 19-32 days
15 175-3156 Bumper wheel $16.61 2 usually ships 13-17 days
16 275-0041 Clevis pin 5/16 x 1 3/4 inch $4.49 4 usually ships 1-5 days
17 175-3157 Sleeve .318 x .437 x 1.06 inch $7.04 4 usually ships 13-17 days
18 175-2066 3 inch bumper wheel $10.45 2 usually ships 13-17 days
19 175-3307 Non-skid tread $6.49 1 usually ships 13-17 days
20 275-0653 Floor tread $11.22 1 usually ships 1-5 days
21 175-2249 Sleeve $4.22 1 usually ships 13-17 days
22 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 1 ships same day
23 275-0543 Rubber grommet $6.27 2 usually ships 1-5 days
24 275-8203 Molding $48.40 1 usually ships 1-5 days
25 175-9590 Rubber grommet $5.28 1 usually ships 1-5 days
26 175-3160 Horn $116.38 1 usually ships 13-17 days
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
28 999-0665 Nut M8-1.25 flange lock $0.99 1 ships same day
29 175-3170 P clamp $4.22 2 usually ships 1-5 days
30 175-3166 Bolt M6-1 x 16mm hex head $5.28 5 usually ships 13-17 days
31 175-2162 Nylon wire tie $3.30 2 usually ships 13-17 days
32 175-2359 Plug $4.49 6 usually ships 1-5 days
33 175-3179 P clamp $5.28 3 usually ships 13-17 days
34 275-0656 Cable clamp $3.17 2 usually ships 1-5 days
35 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 2 usually ships 1-5 days
36 275-0240 Non-skid hand floor tread 6 x 9 inch $15.95 2 usually ships 1-5 days
37 275-0616 Left brush door plate $93.28 1 (After SN 001469) usually ships 13-17 days
38 275-0250 Push latch 1 x 1 1/2 $7.37 1 (After SN 001469) usually ships 13-17 days
39 175-7920 Washer M8 flat stainless steel $4.49 2 ships same day
