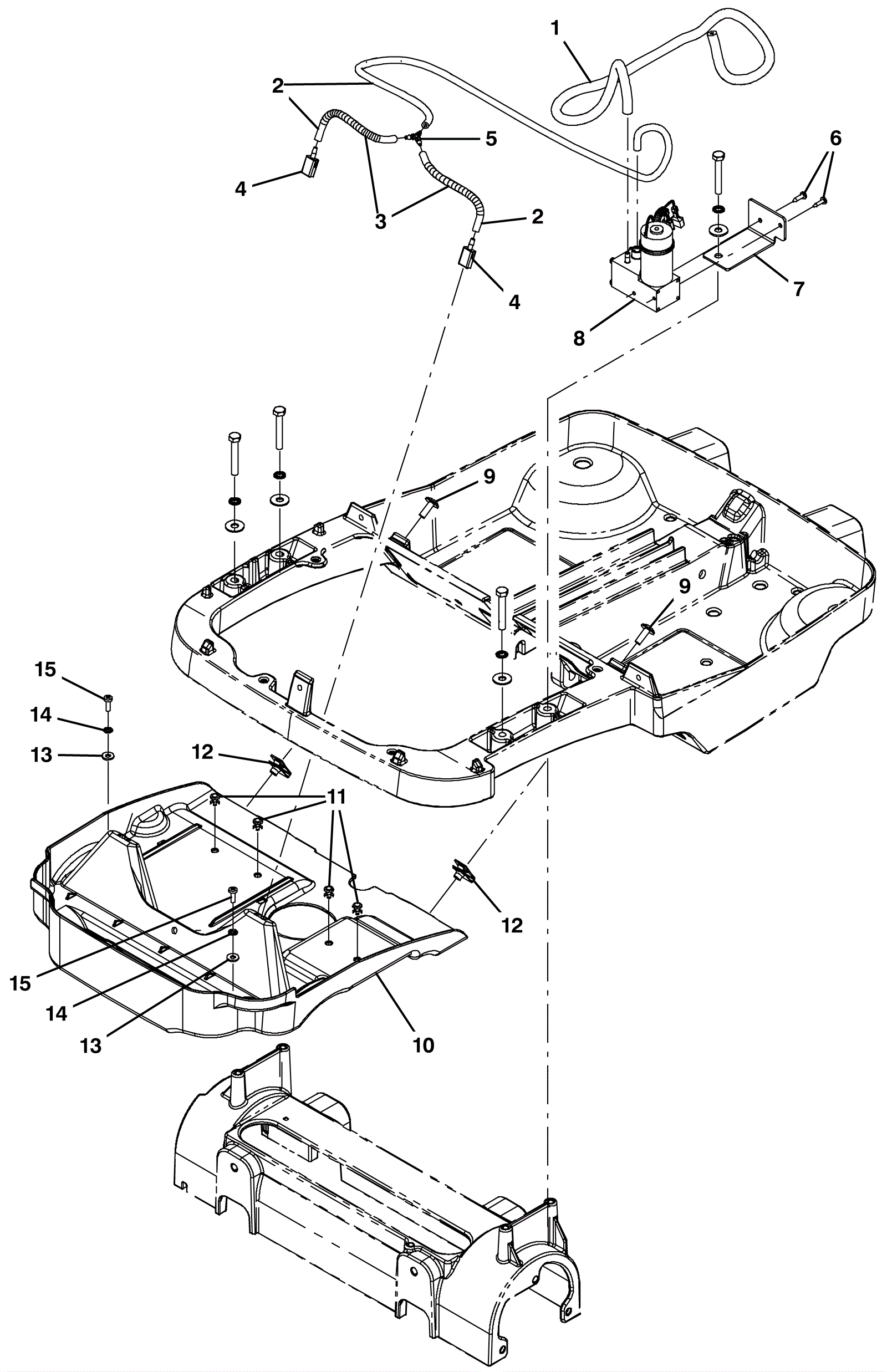

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6824
|
Tubing 3 7/40 x 9 inch |
1 |
|
|
2 |
275-6826
|
1/8 inch tubing |
1 |
|
|
3 |
275-6827
|
Sleeve |
2 |
|
|
4 |
275-6828
|
Nozzle |
2 |
|
|
5 |
275-6829
|
Y fitting |
1 |
|
|
6 |
175-2146
|
Screw 6-20 x 1/2 pan head |
2 |
|
|
7 |
275-6830
|
Solution pump mounting bracket |
1 |
|
|
8 |
275-7324
|
Liquid diaphragm pump |
1 |
|
|
9 |
999-1080
|
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
2 |
|
|
10 |
275-6831
|
Nozzle splash shroud |
1 |
|
|
11 |
175-4600
|
Snap rivet |
4 |
|
|
12 |
175-2291
|
Nut 1/4-20 speed clip |
2 |
|
|
13 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
|
|
14 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
15 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
|
