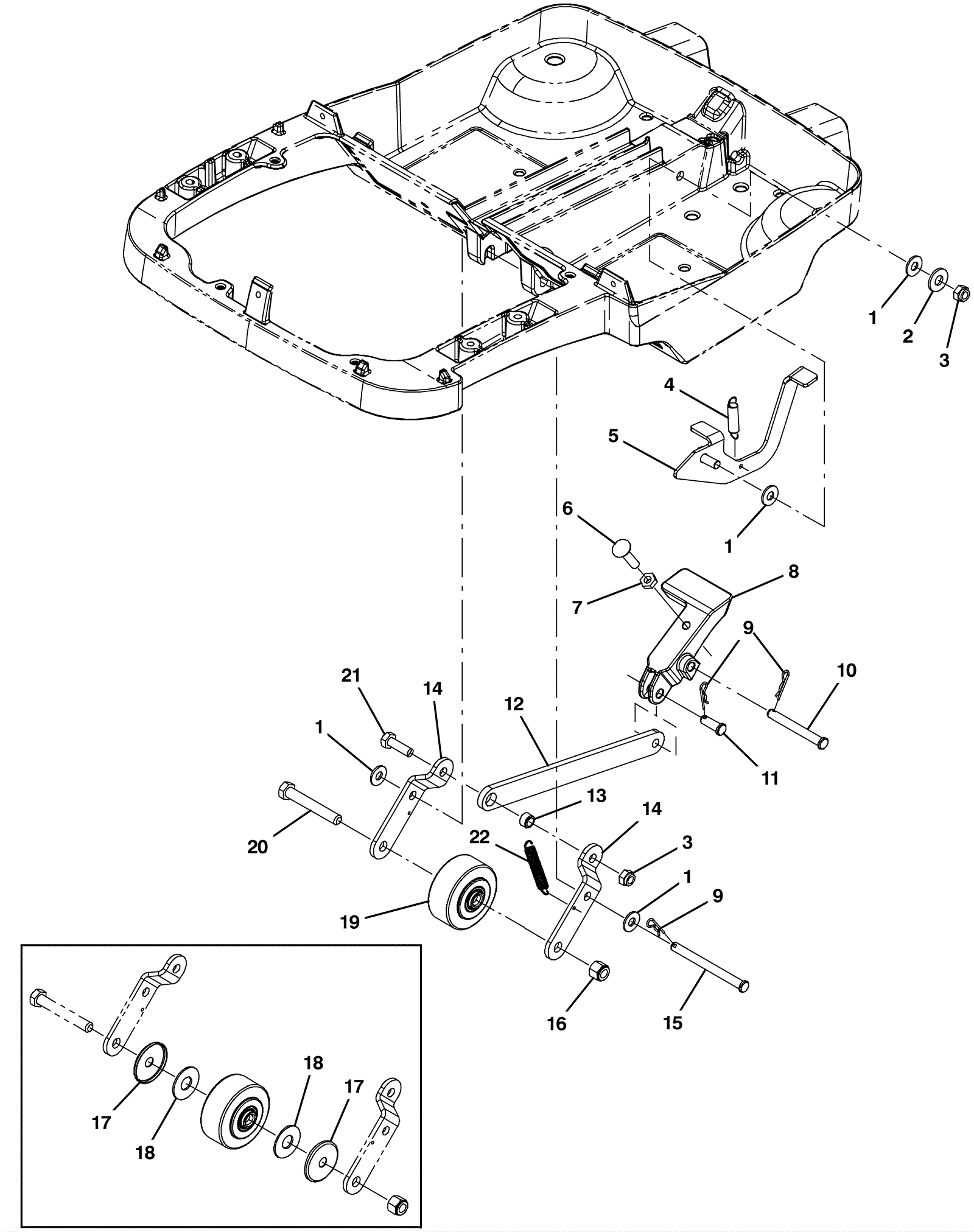

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1530
|
Washer 3/8 flat nylon |
3 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
4 |
175-3113
|
Extension spring |
1 |
|
|
5 |
275-5276
|
Wheel release pedal lever |
1 |
|
|
6 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
1 |
|
|
7 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
1 |
|
|
8 |
275-5278
|
Foot pedal |
1 |
|
|
10 |
275-5277
|
Clevis pin (Tennant Industrial) |
1 |
|
|
11 |
175-0775
|
Clevis pin (Tennant Industrial) |
1 |
|
|
12 |
275-5279
|
Linkage arm |
1 |
|
|
13 |
175-2263
|
Sleeve |
1 |
|
|
14 |
275-5281
|
Transport wheel bracket |
2 |
|
|
15 |
275-5280
|
Clevis pin |
1 |
|
|
16 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
17 |
275-5282
|
Spacer (OBSOLETE) |
2 |
|
|
18 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
19 |
275-5283
|
Rubber wheel (gray) |
1 |
|
|
20 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
1 |
|
|
21 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
22 |
175-7002
|
Extension spring |
1 |
|
|
