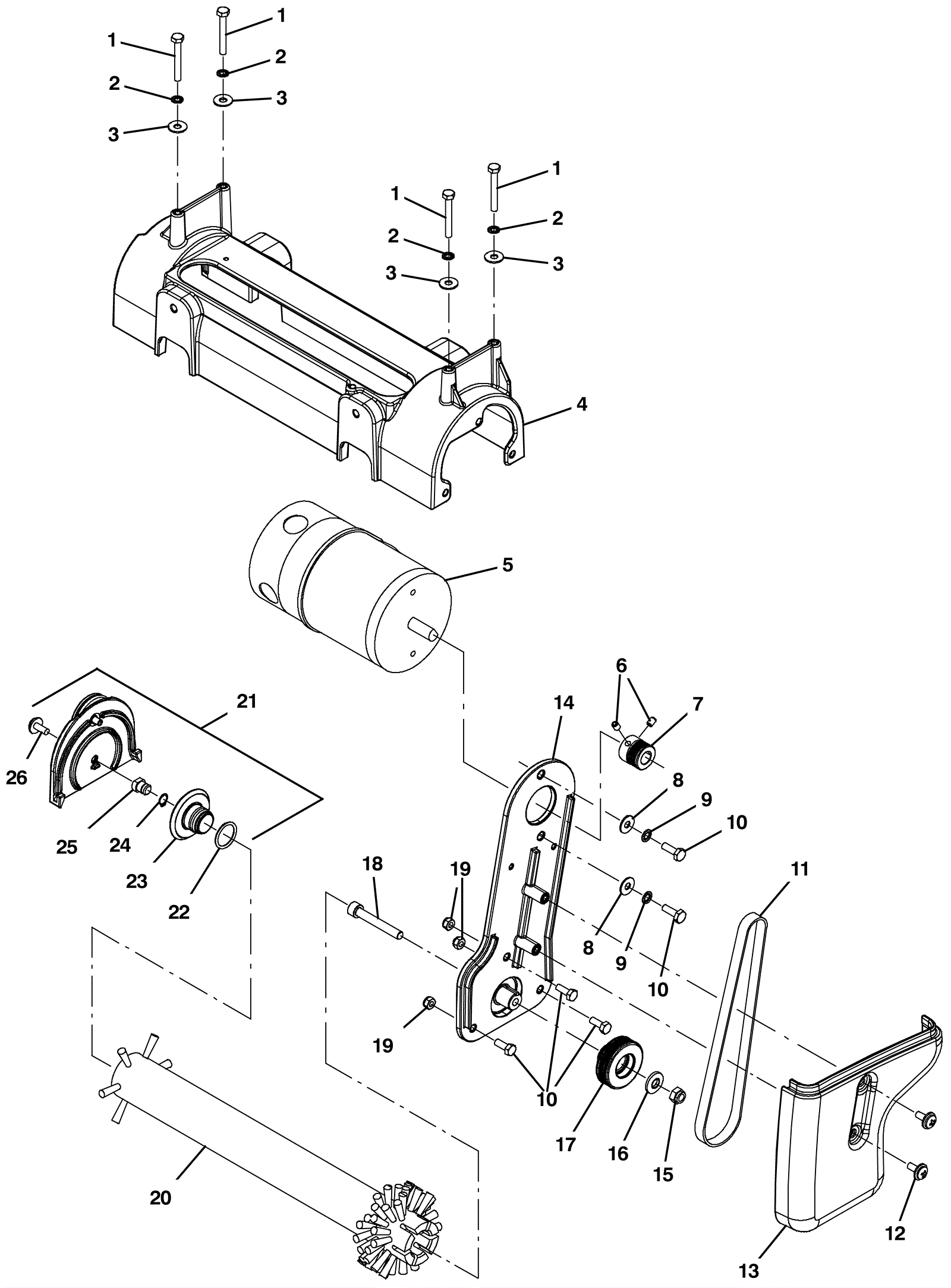

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0781
|
Screw M6-1 x 45mm hex head |
4 |
|
|
2 |
175-4544
|
Washer M6 locking |
4 |
|
|
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
4 |
275-2401
|
Brush housing |
1 |
|
|
5 |
275-6821
|
12V brush motor |
1 |
|
|
6 |
175-9339
|
Screw M6-1 x 8mm set socket |
2 |
|
|
7 |
275-6822
|
Sheave |
1 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
9 |
175-4544
|
Washer M6 locking |
2 |
|
|
10 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
5 |
|
|
11 |
275-9126
|
Belt |
1 |
|
|
12 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
13 |
275-2407
|
Belt cover |
1 |
|
|
14 |
275-6823
|
Motor mount bracket kit |
1 |
(includes 15-18) |
|
15 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
16 |
999-1407
|
Washer 5/16 belleville |
1 |
|
|
17 |
275-9195
|
Sheave |
1 |
|
|
18 |
999-1828
|
Screw M8-1.25 x 55mm socket head stainless steel |
1 |
|
|
19 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
20a |
275-9141
|
15 inch nylon criss-cross scrubbing brush - CYLINDRICAL |
1 |
(standard) |
|
20b |
275-5823
|
15 inch polypropylene scrubbing brush - CYLINDRICAL |
1 |
(optional) |
|
20c |
275-2420
|
15 inch abrasive criss-cross stripping brush - CYLINDRICAL |
1 |
(optional) |
|
21 |
275-2412
|
Brush door kit with hardware |
1 |
(includes 22-26) |
|
22 |
275-2413
|
Seal |
1 |
|
|
23 |
275-2414
|
Brush idler hub |
1 |
|
|
24 |
275-2415
|
Retaining ring |
1 |
|
|
25 |
275-2416
|
Shaft idler plug |
1 |
|
|
26 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
1 |
|
|
