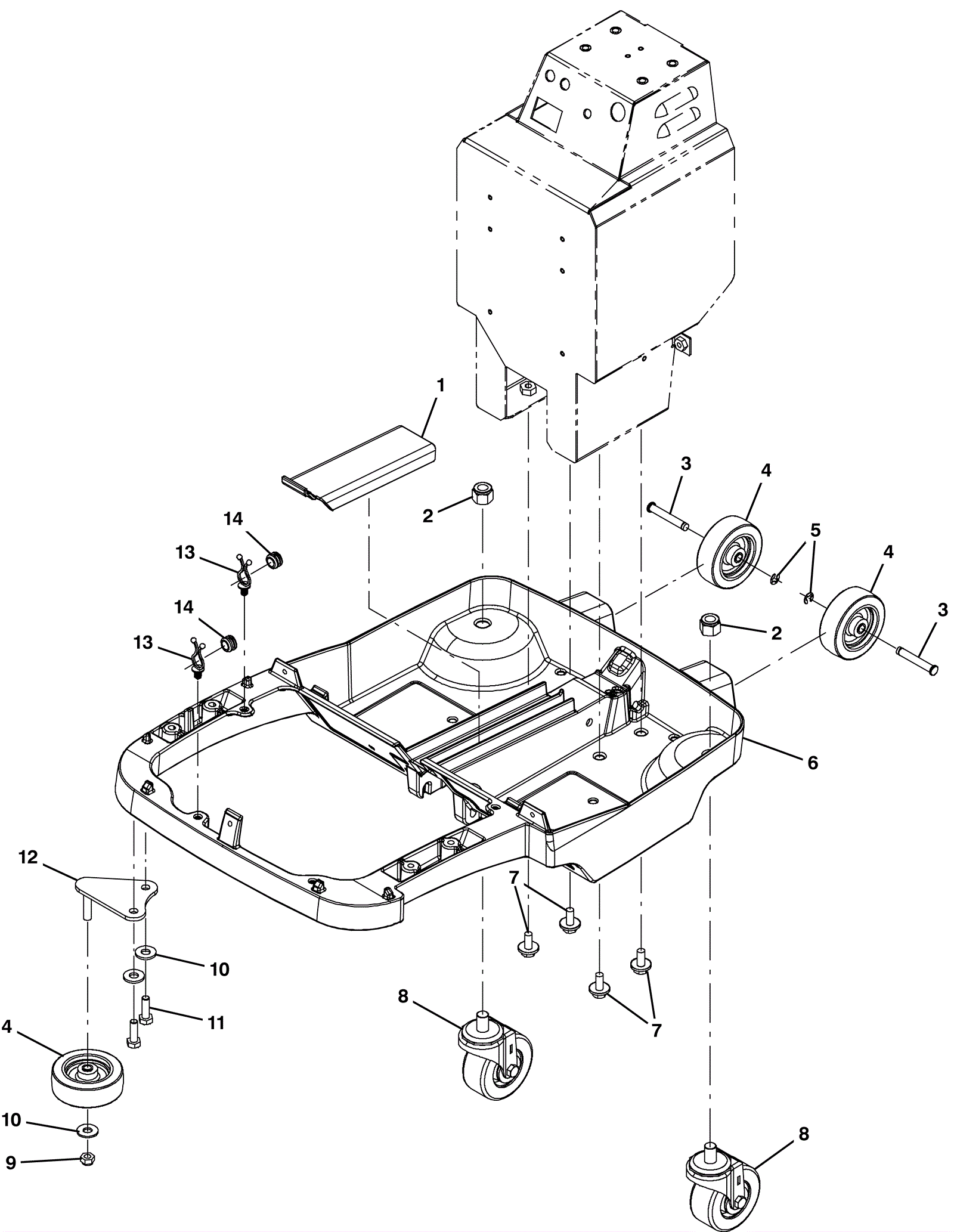

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6809
|
Rear frame cover |
1 |
|
|
2 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
2 |
|
|
3 |
275-2356
|
Clevis pin |
2 |
|
|
4 |
175-0117
|
Guide wheel with bushing |
3 |
|
|
5 |
275-2355
|
Retaining ring |
2 |
|
|
6 |
275-5257
|
Frame |
1 |
|
|
7 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
8 |
175-3508
|
3 inch swivel caster wheel |
2 |
|
|
9 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
10 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
11 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
12 |
275-5258
|
Bumper wheel bracket |
1 |
|
|
13 |
175-2095
|
Keeper clip |
2 |
|
|
14 |
175-4401
|
GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) |
2 |
|
|
