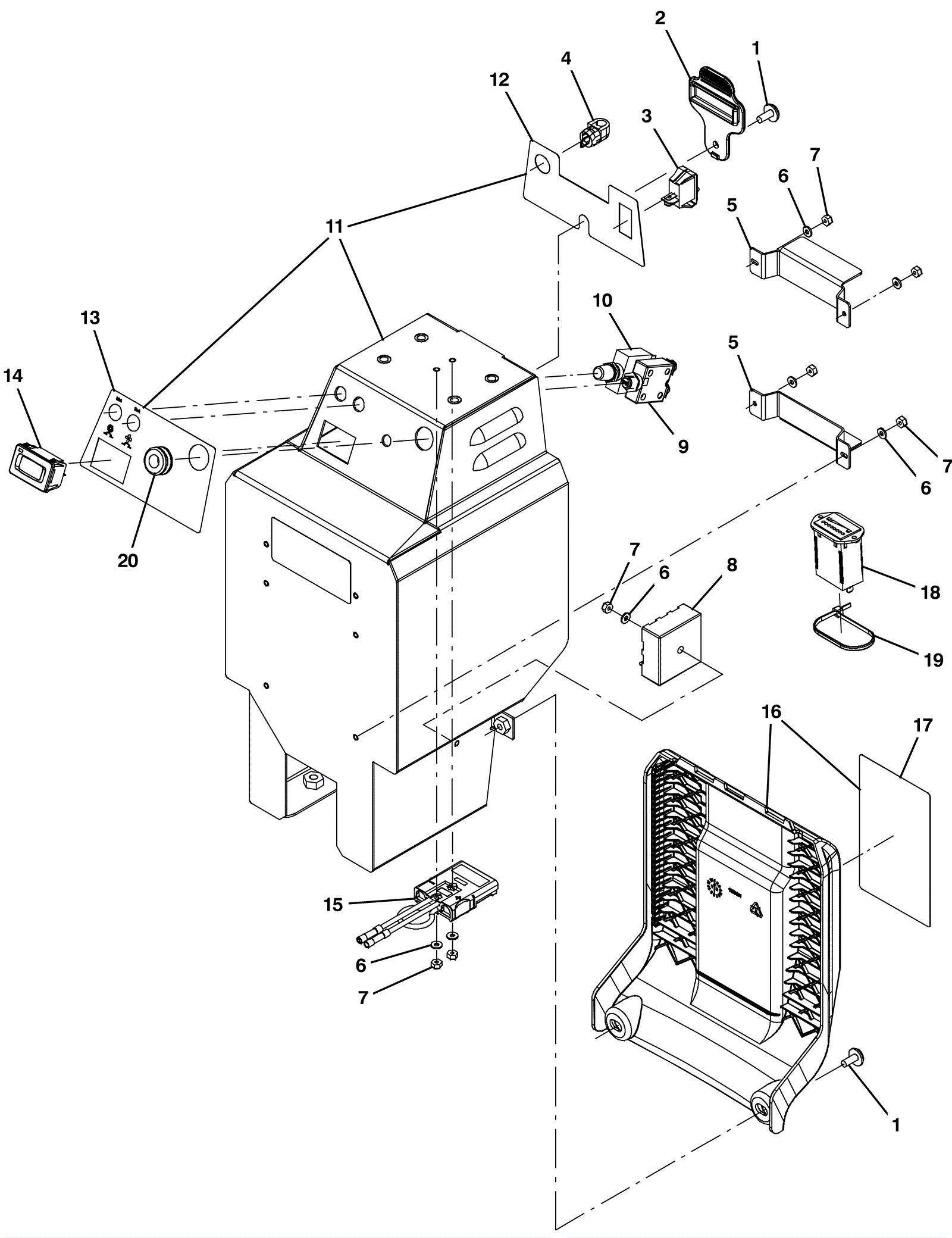

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
3 |
|
|
2 |
275-6798
|
Charger plug cover |
1 |
|
|
3 |
175-0136
|
On/off rocker switch |
1 |
|
|
4 |
275-6799
|
Strain relief |
1 |
|
|
5 |
275-6800
|
Stand-off channel |
2 |
|
|
6 |
999-1158
|
Washer #6 flat stainless steel |
7 |
|
|
7 |
175-3224
|
Nut 6-32 hex lock |
7 |
|
|
8 |
275-6801
|
Timer module |
1 |
(Li-ion model) |
|
9 |
275-6802
|
35amp circuit breaker |
1 |
|
|
10 |
175-2151
|
30amp circuit breaker |
1 |
|
|
11 |
275-6803
|
Column kit with decals |
1 |
(includes 12 and 13) |
|
12 |
275-6804
|
Lower instrument panel decal |
1 |
|
|
13 |
275-6805
|
Circuit breaker label |
1 |
|
|
14 |
275-9900
|
Hour meter |
1 |
|
|
15 |
275-7342
|
Charger plug kit (OBSOLETE) |
1 |
|
|
16 |
275-6806
|
Battery cover kit |
1 |
(includes 17) |
|
17 |
275-6807
|
Warning decal |
1 |
|
|
18 |
275-6808
|
Battery discharge gauge |
1 |
(AGM model) |
|
19 |
175-7795
|
Cable tie |
1 |
(AGM model) |
|
20 |
275-2364
|
Rubber grommet (Tennant Industrial) |
1 |
|
|
