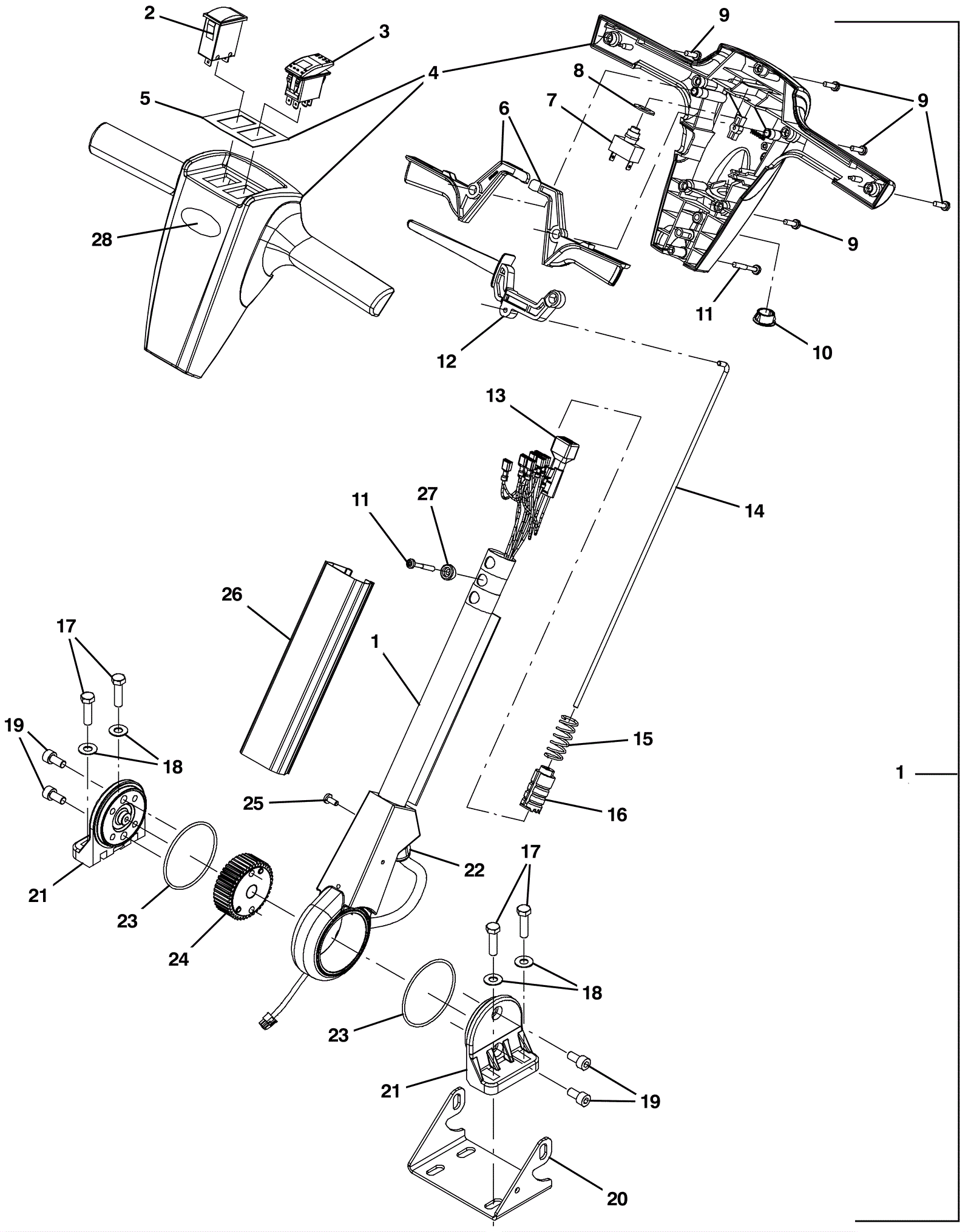

T1B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-6789 Handle kit assembly $1,766.49 1 (includes 2-28) (Li-ion model) usually ships 5-16 days
1b 275-6790 Handle kit assembly $1,315.27 1 (includes 2-28) (AGM model) usually ships 1-5 days
2a 275-6792 Voltmeter gauge $100.32 1 (Li-ion model) usually ships 1-5 days
2b 275-6793 Voltmeter gauge $48.40 1 (AGM model) usually ships 5-16 days
3 275-6794 Rocker switch $43.34 1 usually ships 5-16 days
4 275-6795 Front/rear cover kit $356.18 1 (includes 5) usually ships 5-16 days
5 275-6796 Instrument panel decal $18.48 1 usually ships 1-5 days
6 275-9132 Switch lever $10.12 2 ships same day
7 175-6400 Push button switch kit $31.13 1 ships same day
8 175-6386 Washer 1/2 flat spring disc zinc plated $4.95 2 usually ships 5-16 days
9 175-7660 Screw #10-14 x .675 shoulder self-tapping $4.18 7 ships same day
10 175-3127 Plug $3.96 1 usually ships 5-16 days
11 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping $2.42 2 usually ships 5-16 days
12 275-2310 Handle adjustment lever $8.25 1 ships same day
13 175-2216 Diode plug $12.87 1 ships same day
14 275-2342 Release rod $4.29 1 usually ships 5-16 days
15 275-2322 Spring $2.42 1 usually ships 5-16 days
16 275-2319 Plunger kit $65.34 1 usually ships 5-16 days
17 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 ships same day
18 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
19 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
20 275-6797 Cover pivot mounting bracket $35.64 1 usually ships 1-5 days
21 275-2314 Handle pivot $39.82 2 usually ships 5-16 days
22 275-6845 Strain relief $6.60 1 usually ships 1-5 days
23 175-3967 Seal $5.28 2 ships same day
24 275-2317 Locking gear $119.46 1 usually ships 5-16 days
25 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 1 ships same day
26 275-2341 Handle cover $10.12 1 usually ships 5-16 days
27 275-2308 Flanged bushing $3.96 1 usually ships 5-16 days
28 275-2338 Tennant logo decal $4.29 1 usually ships 1-5 days
