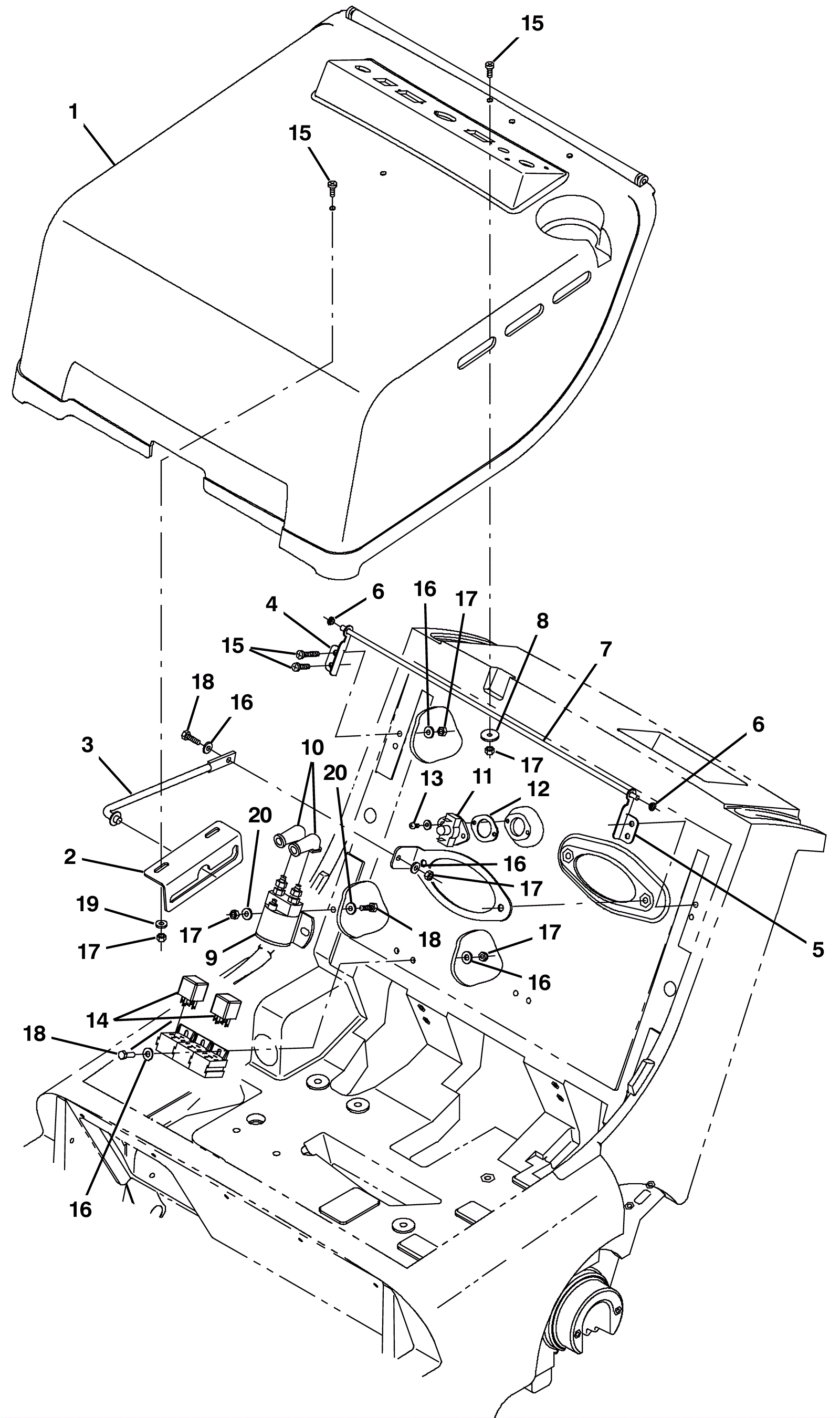

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-9356
|
E hood |
$709.06
|
1 |
|
usually ships 1-5 days |
2 |
175-9357
|
BRACKET, ROD, PROPEL (Tennant Industrial) |
$23.71
|
1 |
|
usually ships 1-5 days |
3 |
175-9358
|
Seat rod |
$63.25
|
1 |
|
usually ships 5-16 days |
4 |
175-9359
|
Right hand E engine cover hinge pivot |
$23.32
|
1 |
|
usually ships 1-5 days |
5 |
175-9360
|
Left hand engine cover hinge pivot |
$21.56
|
1 |
|
ships same day |
6 |
175-9361
|
Snap in bearing |
$5.61
|
2 |
|
usually ships 5-16 days |
7 |
175-9362
|
Hinge pin rod nylon |
$12.87
|
1 |
|
usually ships 5-16 days |
8 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
$0.99
|
1 |
|
ships same day |
9a |
175-9139
|
24V 100amp relay |
$94.05
|
1 |
|
ships same day |
9b |
991-1226
|
24V solenoid 4 post (2 large 2 small) |
$54.00
|
1 |
(NON-OEM) |
usually ships 6-7 days |
10 |
175-2122
|
90 degree cable boot |
$3.96
|
2 |
|
usually ships 5-16 days |
11 |
175-9364
|
Thermostat assembly 140 degree |
$28.82
|
1 |
|
usually ships 5-16 days |
12 |
175-9365
|
Fire switch gasket |
$12.10
|
1 |
|
usually ships 5-16 days |
13 |
175-9366
|
Screw 8-10 x 1/2 pan head plastic |
$3.96
|
2 |
|
ships same day |
14 |
175-8635
|
40amp relay |
$28.60
|
2 |
|
ships same day |
15 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
$1.01
|
7 |
|
ships same day |
16 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
10 |
|
ships same day |
17 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
12 |
|
ships same day |
18 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
$0.99
|
5 |
|
ships same day |
19 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
20 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
4 |
|
ships same day |
