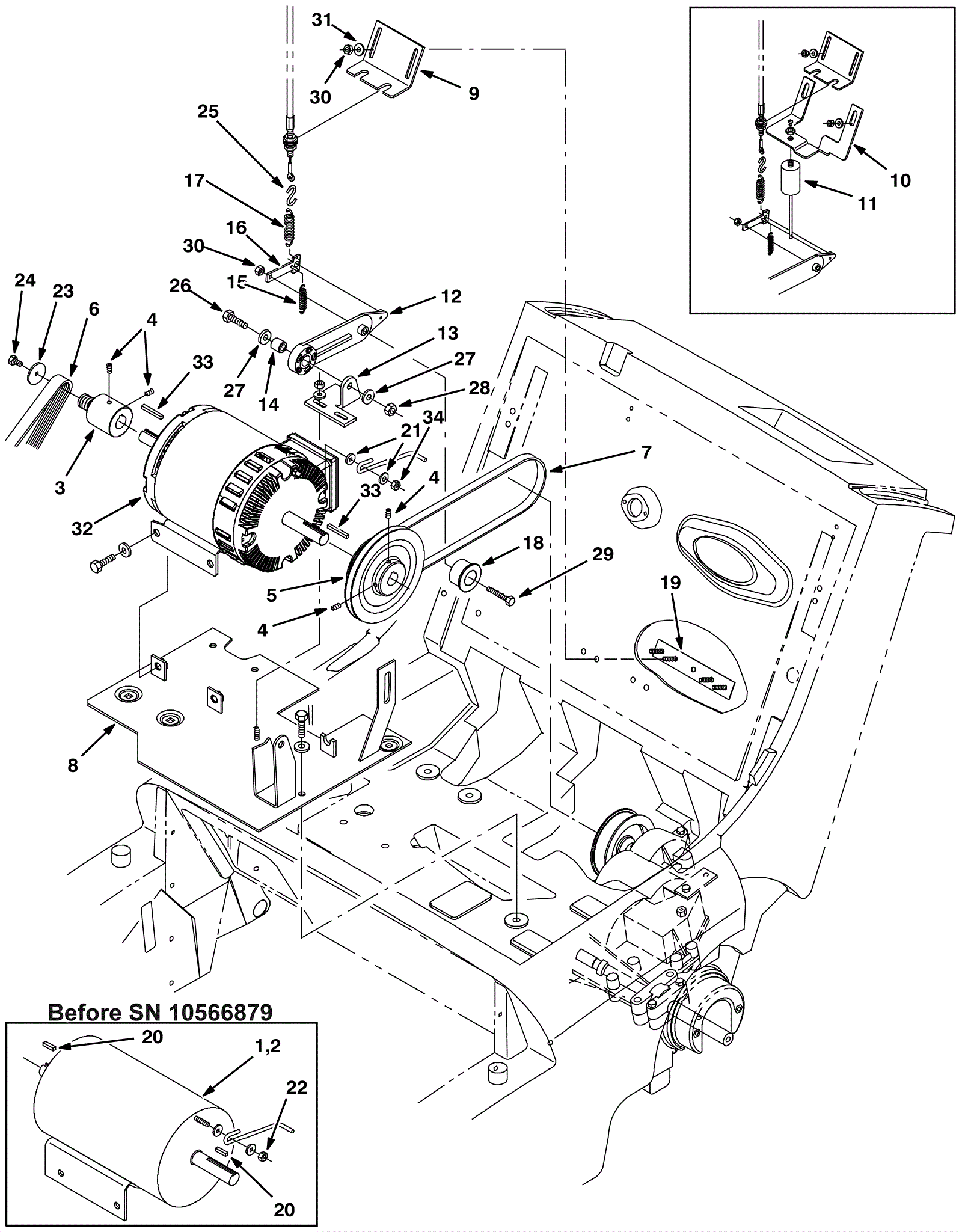

3640 BAT Electric Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-0761 24V electric motor kit $1,337.05 1 (before SN 10566879) (includes 1b and 1c) usually ships 1-5 days
1b 175-9201 Brush kit $70.73 1 usually ships 5-16 days
1c 175-9202 Brush spring $14.30 4 usually ships 1-5 days
2a 175-9337 Electric motor 24vcd $967.12 1 (includes 2b and 2c) usually ships 1-5 days
2b 175-9201 Brush kit $70.73 1 usually ships 5-16 days
2c 175-9202 Brush spring $14.30 4 usually ships 1-5 days
3 175-9338 SHEAVE, PYV, 08GRV, 00.8D 0.75B (Tennant Industrial) $94.52 1 usually ships 1-5 days
4 175-9339 Screw M6-1 x 8mm set socket $3.96 4 usually ships 5-16 days
5 175-9340 Sheave 3L $174.24 1 usually ships 1-5 days
6a 175-9199 Replacement main belt kit $44.22 1 (includes 6b) usually ships 5-16 days
6b 275-0760 36 inch ribbed belt $42.57 1 usually ships 5-16 days
7 175-9204 Flat belt $24.75 1 usually ships 5-16 days
8 175-9341 Electric floor plate weldment $109.56 1 usually ships 1-5 days
9 175-9342 Clutch cable bracket $12.98 1 usually ships 1-5 days
10 N/A Not available Call for price 1 Dampener mounting bracket usually ships 3-26 days
11 N/A Not available Call for price 1 Push dampener usually ships 3-26 days
12 175-9345 Clutch pivot arm $68.09 1 usually ships 1-5 days
13 175-9346 Clutch pivot bracket $13.97 1 usually ships 1-5 days
14 175-9347 Sleeve $4.84 1 usually ships 5-16 days
15 175-9348 SPRING, EXTN, 0.36OD 0.02WIR 01.5L (Tennant Industrial) $14.20 1 usually ships 5-16 days
16 175-9349 Clutch bar $14.08 1 usually ships 1-5 days
17 175-7129 Tension spring $7.48 1 ships same day
18 175-9350 Idler pulley $35.20 1 usually ships 5-16 days
19 175-9351 Clutch cable spring $16.83 1 usually ships 1-5 days
20 175-9352 Square key $3.30 2 (before SN 10566879) usually ships 1-5 days
21 175-9353 Electric belt brake $8.91 1 usually ships 1-5 days
22 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 (before SN 10566879) ships same day
23 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
24 175-9354 Screw M6 hex $2.42 1 usually ships 5-16 days
25 175-9355 S-Hook $2.42 1 usually ships 1-5 days
26 175-0634 Bolt M8-1 1/4 x 35mm hex head $3.30 1 usually ships 1-5 days
27 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
28 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
29 175-0574 Bolt 6mm-1 x 35 hex head $3.30 1 usually ships 5-16 days
30 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
31 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
32a 275-0761 24V electric motor kit $1,337.05 1 (after SN 10566878) (includes 33 and 34) usually ships 1-5 days
32b 275-9904 Carbon brush (pkg of 4) $85.58 1 (after SN 10566878) usually ships 5-16 days
33 275-0192 Square key $3.19 2 (after SN 10566878) usually ships 1-5 days
34 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 (after SN 10566878) ships same day
